2842138 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 12P,2MM,BRK HDR,DRVT,2.8,0.1AU,BOX

Part	Contact Finish - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Post	Shrouding	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Contact Length - Mating	Contact Material	Material Flammability Rating	Insulation Color	Mounting Type	Voltage Rating	Voltage Rating (Type)	Contact Finish Thickness - Mating	Style	Fastening Type	Number of Positions Loaded	Overall Contact Length	Row Spacing - Mating	Contact Type	Insulation Material	Contact Shape	Insulation Height	Number of Rows	Number of Positions	Current Rating	Termination	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2842138-6	Gold	0.079 in	Tin	0.11 in	Unshrouded	125 °C	-40 °C	Breakaway Header	0.157 in	Copper Alloy	UL94 V-0	Black	Through Hole	125 V	DC	3.94 µin	Board	Push-Pull	All	0.327 in	0.079 in	Male Pin	Thermoplastic	Square	0.059 in	2	12	2 A	Solder	78.7 µin
TE Connectivity AMP Connectors 2842138-7	Gold	0.079 in	Tin	0.11 in	Unshrouded	125 °C	-40 °C	Breakaway Header	0.157 in	Copper Alloy	UL94 V-0	Black	Through Hole	125 V	DC	3.94 µin	Board	Push-Pull	All	0.327 in	0.079 in	Male Pin	Thermoplastic	Square	0.059 in	2	14	2 A	Solder	78.7 µin
TE Connectivity AMP Connectors 2842138-3	Gold	0.079 in	Tin	0.11 in	Unshrouded	125 °C	-40 °C	Breakaway Header	0.157 in	Copper Alloy	UL94 V-0	Black	Through Hole	125 V	DC	3.94 µin	Board	Push-Pull	All	0.327 in	0.079 in	Male Pin	Thermoplastic	Square	0.059 in	2	6	2 A	Solder	78.7 µin
TE Connectivity AMP Connectors 2842138-4	Gold	0.079 in	Tin	0.11 in	Unshrouded	125 °C	-40 °C	Breakaway Header	0.157 in	Copper Alloy	UL94 V-0	Black	Through Hole	125 V	DC	3.94 µin	Board	Push-Pull	All	0.327 in	0.079 in	Male Pin	Thermoplastic	Square	0.059 in	2	8	2 A	Solder	78.7 µin
TE Connectivity AMP Connectors 2842138-2	Gold	0.079 in	Tin	0.11 in	Unshrouded	125 °C	-40 °C	Breakaway Header	0.157 in	Copper Alloy	UL94 V-0	Black	Through Hole	125 V	DC	3.94 µin	Board	Push-Pull	All	0.327 in	0.079 in	Male Pin	Thermoplastic	Square	0.059 in	2	4	2 A	Solder	78.7 µin
TE Connectivity AMP Connectors 1-2842138-0	Gold	0.079 in	Tin	0.11 in	Unshrouded	125 °C	-40 °C	Breakaway Header	0.157 in	Copper Alloy	UL94 V-0	Black	Through Hole	125 V	DC	3.94 µin	Board	Push-Pull	All	0.327 in	0.079 in	Male Pin	Thermoplastic	Square	0.059 in	2	10	2 A	Solder	78.7 µin
TE Connectivity AMP Connectors 2842138-5	Gold	0.079 in	Tin	0.11 in	Unshrouded	125 °C	-40 °C	Breakaway Header	0.157 in	Copper Alloy	UL94 V-0	Black	Through Hole	125 V	DC	3.94 µin	Board	Push-Pull	All	0.327 in	0.079 in	Male Pin	Thermoplastic	Square	0.059 in	2	10	2 A	Solder	78.7 µin

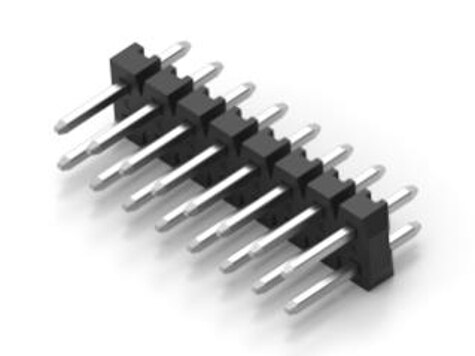

TE Connectivity AMP Connectors 2842138-8	Gold	0.079 in	Tin	0.11 in	Unshrouded	125 °C	-40 °C	Breakaway Header	0.157 in	Copper Alloy	UL94 V-0	Black	Through Hole	125 V	DC	3.94 µin	Board	Push-Pull	All	0.327 in	0.079 in	Male Pin	Thermoplastic	Square	0.059 in	2	16	2 A	Solder	78.7 µin
