205927 Series
Manufacturer: Molex
Beta
⌘K

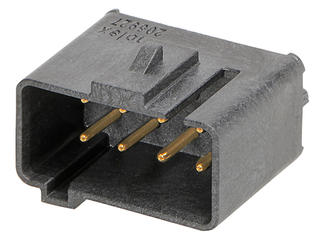

MULTICAT HEADER 8CKT, KEY A, P=4
| Part | Current Rating (Per Contact) | Contact Finish - Mating | Number of Rows | Contact Material | Contact Type | Insulation Height | Contact Length - Post | Contact Shape | Insulation Material | Termination | Material Flammability Rating | Features | Number of Positions Loaded | Voltage Rating | Connector Type | Contact Finish - Post | Style | Fastening Type | Mounting Type | Shrouding | Pitch - Mating | Number of Positions | Insulation Color | Row Spacing - Mating | Contact Finish Thickness - Mating | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish Thickness - Post | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | |||||||||||||||||||||||||||||
 Molex | |||||||||||||||||||||||||||||
 Molex | 6.5 A | Gold | 2 | Brass | Male Pin | 0.591 in | 0.114 in | Circular | Liquid Crystal Polymer (LCP) | Solder | UL94 V-0 | Board Guide | All | 500 V | Header | Gold | Board Cable/Wire | Locking Ramp | Through Hole | Shrouded - 4 Wall | 0.125 in | 8 | Black | 0.142 in | 3.94 µin | -40 °C | 150 °C | 3.94 µin | Aerospace Automotive General Purpose Industrial Medical Telecommunications |
