LS2-115 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 2.00 MM LOCKING HERMAPHRODITIC TERMINAL/SOCKET STRIP

Part	Height Above Board	Features	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Pitch	Number of Rows	Mounting Type	Number of Positions
Samtec Inc. LS2-115-02-F-D-A-K	0.33 in	Board Guide Latch Holder Pick and Place	Hermaphroditic Non-Gendered Self Mating	Gold	0	Flash	Flash	0.079 in	2	Surface Mount	30
Samtec Inc. LS2-115-02-S-D-A	0.33 in	Board Guide Latch Holder	Hermaphroditic Non-Gendered Self Mating	Gold	30 µin			0.079 in	2	Surface Mount	30

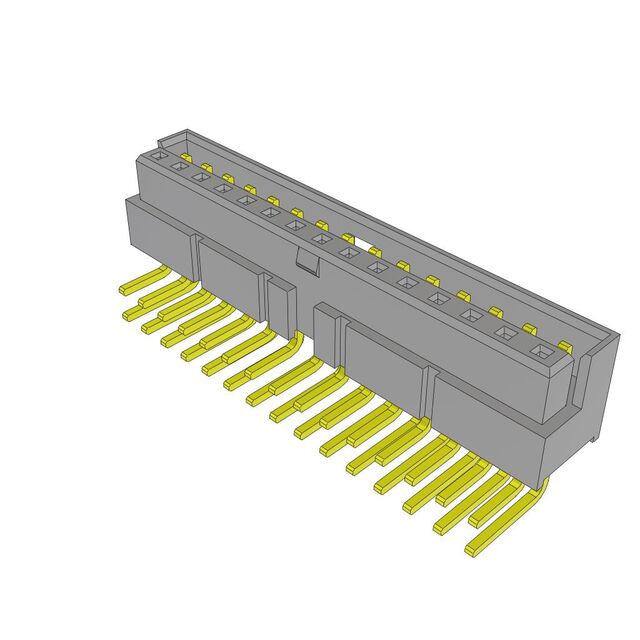

Samtec Inc. LS2-115-01-F-D-RA2	0.208 in	Latch Holder	Hermaphroditic Non-Gendered Self Mating	Gold	0	Flash	Flash	0.079 in	2	Right Angle Through Hole	30
Samtec Inc. LS2-115-01-S-D-RA1	0.208 in	Latch Holder	Hermaphroditic Non-Gendered Self Mating	Gold	30 µin			0.079 in	2	Right Angle Through Hole	30
Samtec Inc. LS2-115-02-F-D-K	0.33 in	Latch Holder Pick and Place	Hermaphroditic Non-Gendered Self Mating	Gold	0	Flash	Flash	0.079 in	2	Surface Mount	30
Samtec Inc. LS2-115-01-F-D	0.25 in	Latch Holder	Hermaphroditic Non-Gendered Self Mating	Gold	0	Flash	Flash	0.079 in	2	Through Hole	30
Samtec Inc. LS2-115-02-S-D-K-TR	0.33 in	Latch Holder Pick and Place	Hermaphroditic Non-Gendered Self Mating	Gold	30 µin			0.079 in	2	Surface Mount	30
Samtec Inc. LS2-115-01-G-D-TR	0.25 in	Latch Holder	Hermaphroditic Non-Gendered Self Mating	Gold	10 Ąin			0.079 in	2	Through Hole	30
Samtec Inc. LS2-115-01-F-D-RA1-TR	0.208 in	Latch Holder	Hermaphroditic Non-Gendered Self Mating	Gold	0	Flash	Flash	0.079 in	2	Right Angle Through Hole	30
Samtec Inc. LS2-115-01-SM-D	0.25 in	Latch Holder	Hermaphroditic Non-Gendered Self Mating	Gold	30 µin			0.079 in	2	Through Hole	30
