171320 Series
Manufacturer: Molex
Beta
⌘K

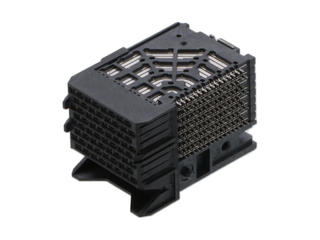

IMPEL 90 OHM, 4 PAIR RIGHT-ANGLE DAUGHTERCARD, 1.90MM PITCH, UNGUIDED, 12 COLUMNS, 96 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.36MM
| Part | Number of Positions Loaded | Connector Style | Color | Differential Pairs (Typical) | Connector Usage | Features | Connector Type | Number of Positions | Termination | Number of Columns | Mounting Type | Contact Finish | Contact Finish Thickness | Number of Rows | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) | Material Flammability Rating | Pitch | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | All | Impel™ | Black | 48 | Coplanar Daughtercard | Shielded | Female Sockets Receptacle | 96 | Press-Fit | 12 | Right Angle Through Hole | Gold | 30 µin | 8 | 150 VDC | -55 °C | 85 °C | UL94 V-0 | ||
 Molex | All | Guide Right Impel | Black | 32 | Daughtercard | Board Guide Shielded | Female Sockets Receptacle | Press-Fit | 8 | Right Angle Through Hole | Gold | 30 µin | ||||||||
 Molex | All | Guide Right Impel | Black | 8 | Coplanar Daughtercard | Board Guide Shielded | Female Sockets Receptacle | 16 | Press-Fit | 2 | Right Angle Through Hole | Gold | 30 µin | 8 | 150 VDC | -55 °C | 85 °C | UL94 V-0 | 0.075 in | 75 mA |
 Molex | All | Guide Right Impel | Black | 64 | Daughtercard | Board Guide Shielded | Female Sockets Receptacle | 128 | Press-Fit | 16 | Right Angle Through Hole | Gold | 30 µin | 8 | 150 VDC | -55 °C | 85 °C | UL94 V-0 | ||
 Molex | All | Impel™ | Black | 64 | Coplanar Daughtercard | Shielded | Female Sockets Receptacle | 128 | Press-Fit | 16 | Right Angle Through Hole | Gold | 30 µin | 8 | ||||||
 Molex | All | Guide Left Impel | Black | 48 | Coplanar Daughtercard | Shielded | Female Sockets Receptacle | 96 | Press-Fit | 12 | Right Angle Through Hole | Gold | 30 µin | 8 | -40 °C | 105 °C | UL94 V-0 | |||
 Molex | ||||||||||||||||||||
 Molex | All | Impel™ | Black | 40 | Coplanar Daughtercard | Shielded | Female Sockets Receptacle | 80 | Press-Fit | 10 | Right Angle Through Hole | Gold | 30 µin | 8 | 150 VDC | -55 °C | 85 °C | UL94 V-0 | ||
Molex | All | Impel™ | Black | 32 | Coplanar Daughtercard | Shielded | Female Sockets Receptacle | 64 | Press-Fit | 8 | Right Angle Through Hole | Gold | 30 µin | 8 | ||||||
 Molex | All | Guide Left Impel | Black | 32 | Coplanar Daughtercard | Shielded | Female Sockets Receptacle | 64 | Press-Fit | 8 | Right Angle Through Hole | Gold | 30 µin | 8 | -40 °C | 105 °C | UL94 V-0 |
