3534 Series

Catalog

RING TONGUE TERMINAL, M6, 1/4", 14 AWG, 2 MM², PLASTI-GRIP SERIES, BLACK, YELLOW

Part	Width - Outer Edges	Contact Material	Contact Finish	Termination	Terminal Type	Thickness	Color	Stud/Tab Size	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Features	Length - Overall	Mounting Type	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Stud/Tab Size (Type)	Stud/Tab Size

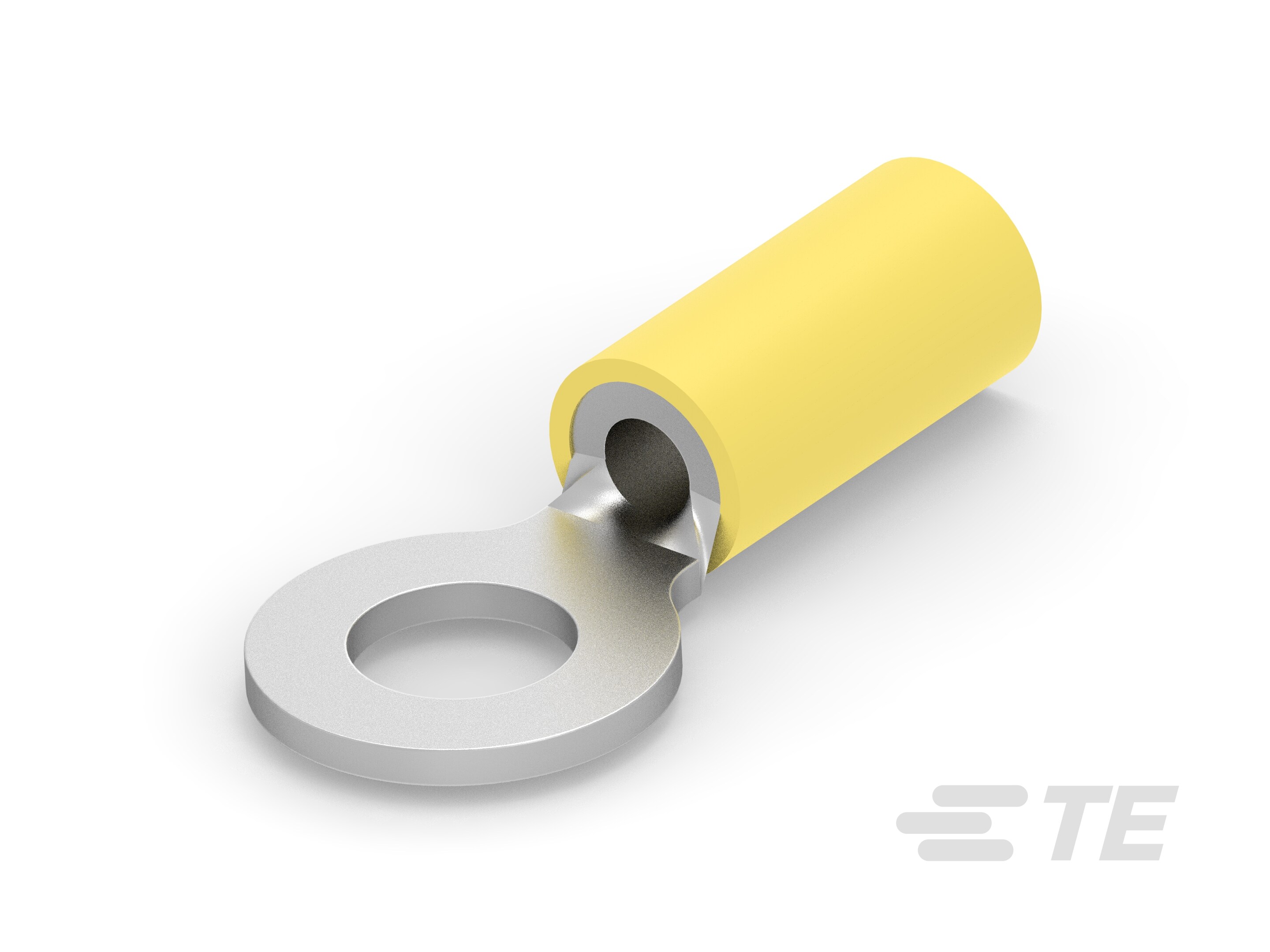

TE Connectivity AMP Connectors 35349	0.5 in	Copper	Tin	Crimp	Circular	0.048 in	Black Stripe Yellow	0.25 Stud	16 AWG	14 AWG	Insulated	Heavy Duty Serrated Termination	1.188 in	Free Hanging (In-Line)	0.15 in	0.25 in	Poly-Vinyl Chloride PVC

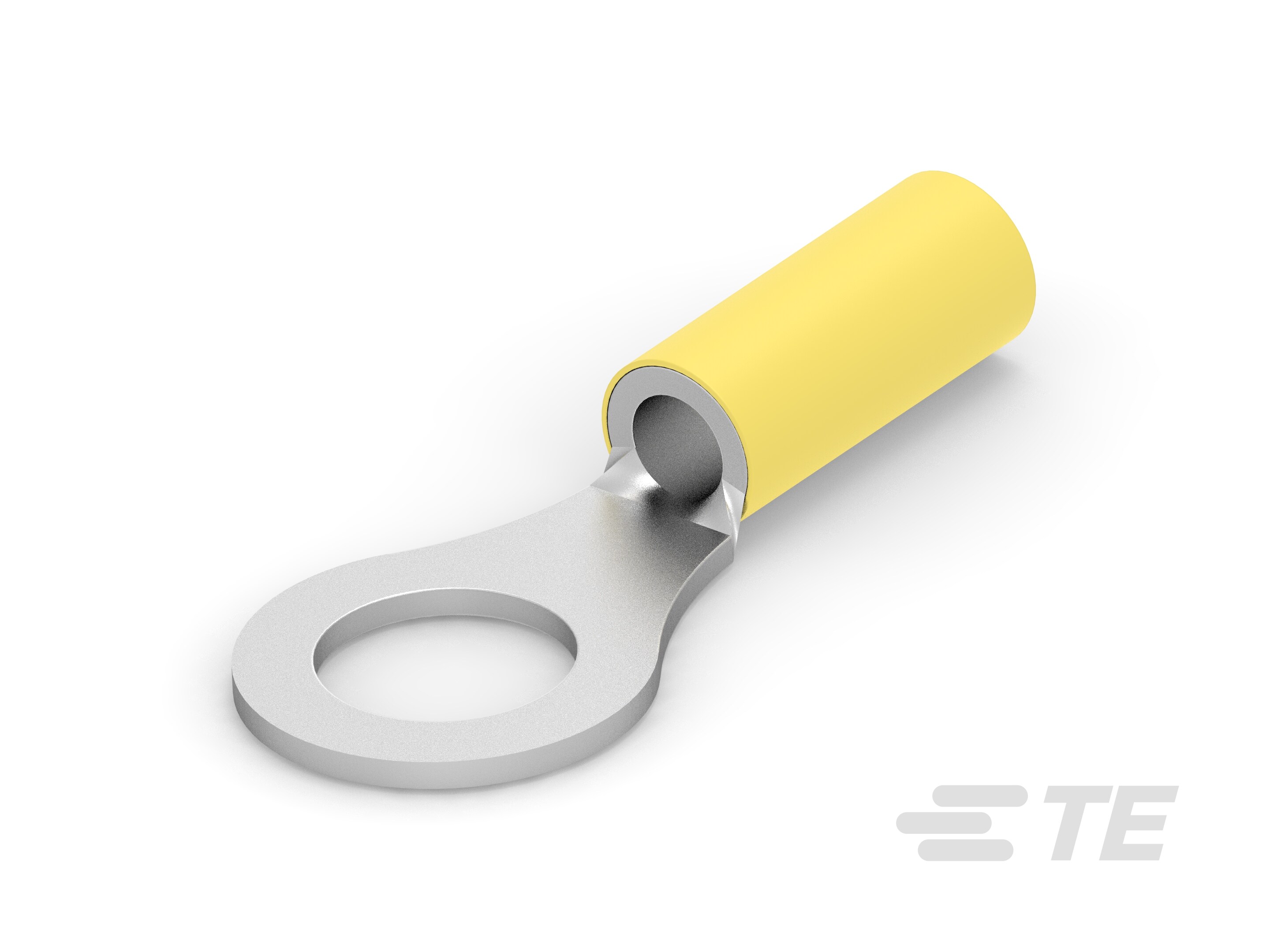

TE Connectivity AMP Connectors 35346	0.531 in	Copper	Tin	Crimp	Circular	0.04 in	Yellow	0.3125 in	12 AWG	10 AWG	Insulated	Serrated Termination	1.416 in	Free Hanging (In-Line)	0.17 in	0.3 in	Poly-Vinyl Chloride PVC	Stud	16 Stud 5 Stud

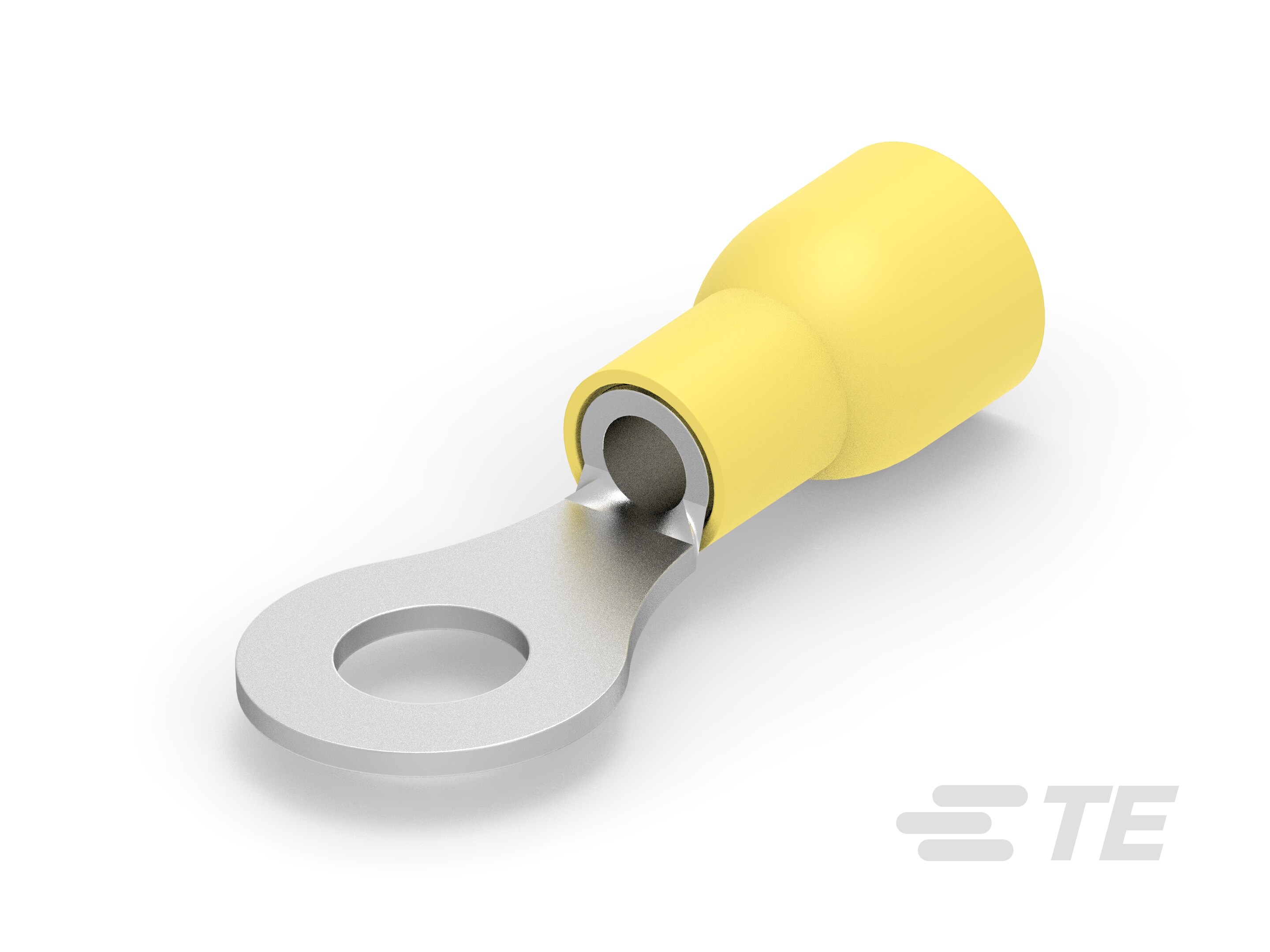

TE Connectivity AMP Connectors 35345	0.531 in	Copper	Tin	Crimp	Circular	0.04 in	Yellow	0.25 Stud	12 AWG	10 AWG	Insulated	Serrated Termination	1.416 in	Free Hanging (In-Line)	0.17 in	0.3 in	Poly-Vinyl Chloride PVC
