747250 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

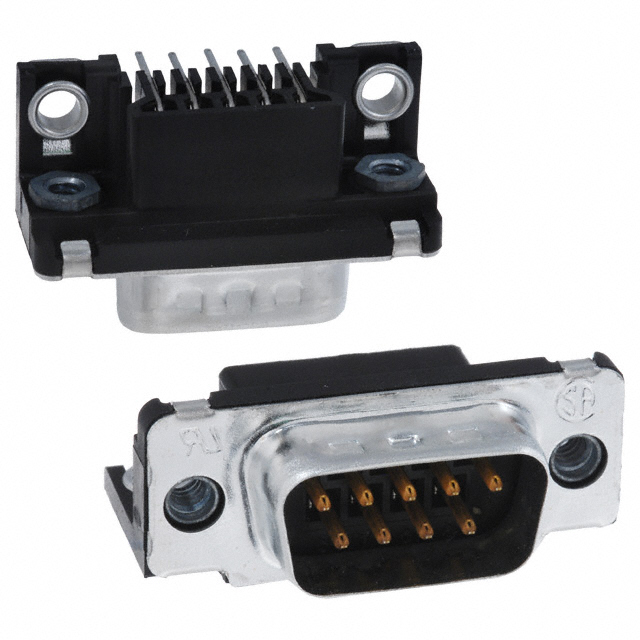

CONN D-SUB PLUG 9POS R/A SLDR
| Part | Features | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Current Rating | Backset Spacing | Connector Style | Connector Type | Contact Type | Number of Rows | Material Flammability Rating | Shell Size | Connector Layout | Termination | Flange Feature | Mounting Type | Finish | Shell Material | Contact Material | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Ground Strap Grounding Indents | Gold | 9 | 0 | Flash | Flash | 6 A | 0.318 in | D-Sub | Male Pins Plug | Signal | 2 | UL94 V-0 | 1 | DE E | Solder | Housing Shell (4-40) | Right Angle Through Hole | Tin Plated | Steel | Brass | 125 V | -55 °C | 105 °C | Black |
 TE Connectivity AMP Connectors | Ground Strap Grounding Indents | Gold | 9 | 6 A | 0.318 in | D-Sub | Male Pins Plug | Signal | 2 | UL94 V-0 | 1 | DE E | Solder | Housing Shell (Unthreaded) | Right Angle Through Hole | Tin Plated | Steel | Brass | 125 V | -55 °C | 105 °C | Black |
