320571 Series

Catalog

CONN RING CIRC 22AWG #1/4 CRIMP

Part	Thickness	Terminal Type	Color	Termination	Wire Gauge	Features	Stud/Tab Size	Length - Overall	Width - Outer Edges	Mounting Type	Contact Finish	Insulation	Contact Material	Material - Insulation	Insulation Diameter (Max)	Insulation Diameter (Min)	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
TE Connectivity AMP Connectors 2-320571-3	0.031 in	Circular	Green Stripe Red	Crimp	22 AWG	Insulation Restriction	0.25 Stud	1.14 in	0.469 in	Free Hanging (In-Line)	Tin	Insulated	Copper	Nylon PA Polyamide	0.11 in	0.038 in

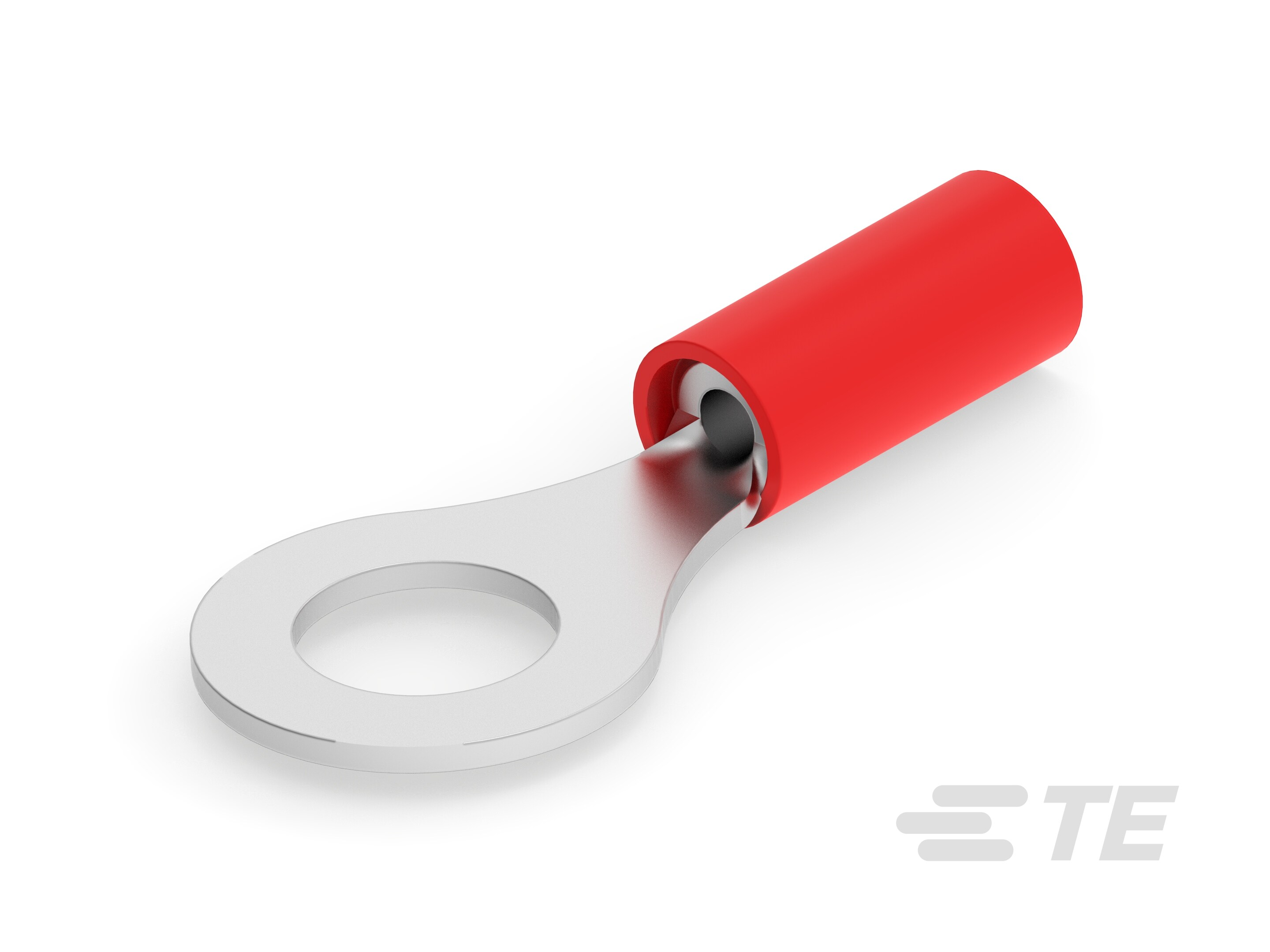

TE Connectivity AMP Connectors 2-320571-2	0.031 in	Circular	Red	Crimp		Serrated Termination	0.25 Stud	1.078 in	0.469 in	Free Hanging (In-Line)	Tin	Insulated	Copper	Nylon PA Polyamide	0.125 in	0.08 in	16 AWG	22 AWG
