EVQ-Q0 Series

Catalog

SWITCH TACT SPST-NO 0.02A 15V

Part	Mechanical Life (Cycles)	Switch Travel (Min)	Switch Travel (Max)	Actuator Type	Illumination	Switch Function	Circuit	Outline Length	Outline Width	Termination Style	Contact Rating (Current)	Operating Force (Max)	Operating Force (Min)	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Actuator Orientation	Features	Actuator Height off PCB (Vertical)

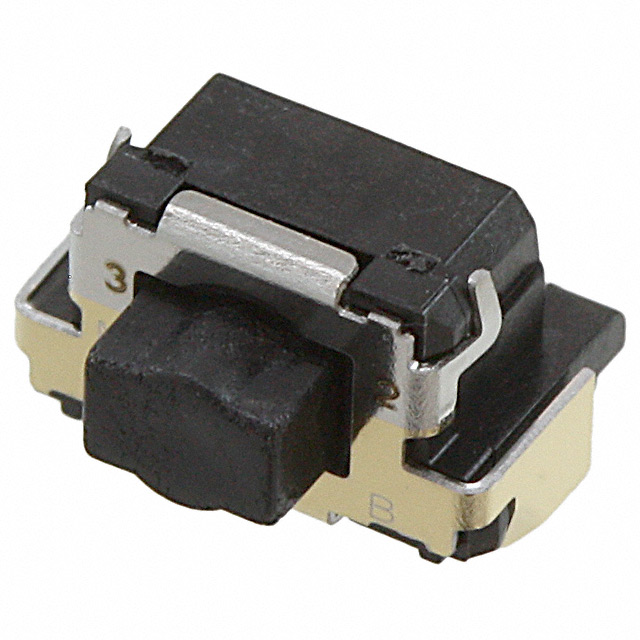

Panasonic Electronic Components EVQ-Q0G03K	200000 Cycles	0.4 mm	0.5 mm	Rectangular Button	Non-Illuminated	Off-Mom-Mom	SPST-NO x 2	6.2 mm	3.75 mm	SMD (SMT) Tab	0.02 A	260 gf	100 gf	70 °C	-20 °C	Edge Mount Right Angle
Panasonic Electronic Components EVQ-Q0C03K	200000 Cycles	0.4 mm	0.5 mm	Rectangular Button	Non-Illuminated	Off-Mom-Mom	SPST-NO x 2	6.2 mm	3.75 mm	SMD (SMT) Tab	0.02 A	260 gf	100 gf	70 °C	-20 °C	Edge Mount Right Angle	Side Actuated
Panasonic Electronic Components EVQ-Q04A10	30000 Cycles	0.4 mm	0.6 mm	Standard	Non-Illuminated	Off-Mom-Mom	SPST-NO x 2	6 mm	6 mm	J Lead	0.02 A	260 gf	70 gf	70 °C	-20 °C	Surface Mount	Top Actuated	Push Plate	0.95 mm
