TW-28-06 Series

Catalog

CONN BRD STACK 2.00 28POS

Part	Number of Rows	Length - Tail	Contact Finish - Post (Mating)	Length - Post (Mating)	Termination	Color	Length - Stack Height	Number of Positions	Length - Overall Pin	Mounting Type	Pitch	Row Spacing	Contact Finish Thickness - Post (Mating)
Samtec Inc. TW-28-06-T-S-310-120	1	0.12 in	Tin	0.243 in	Solder	Black	0.31 in	28	0.673 in	Through Hole	0.079 in
Samtec Inc. TW-28-06-G-D-375-125	2	0.125 in	Gold	0.173 in	Solder	Black	0.375 in	56	0.673 in	Through Hole	0.079 in	0.079 in	20 µin
Samtec Inc. TW-28-06-T-D-318-125	2	0.125 in	Tin	0.23 in	Solder	Black	0.318 in	56	0.673 in	Through Hole	0.079 in	0.079 in
Samtec Inc. TW-28-06-G-T-400-100	3	0.1 in	Gold	0.173 in	Solder	Black	0.4 in	84	0.673 in	Through Hole	0.079 in	0.079 in	20 µin
Samtec Inc. TW-28-06-S-S-260-120	1	0.12 in	Gold	0.293 in	Solder	Black	0.26 in	28	0.673 in	Through Hole	0.079 in		30 µin

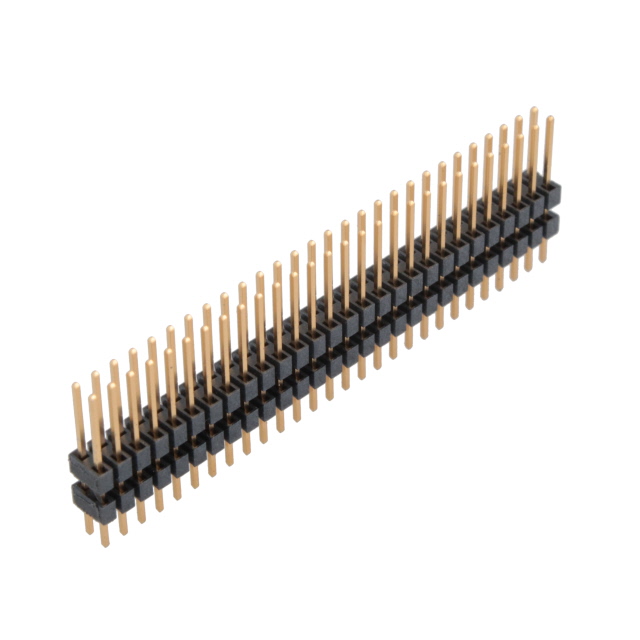

Samtec Inc. TW-28-06-H-D-215-140	2	0.14 in	Gold	0.318 in	Solder	Black	0.215 in	56	0.673 in	Through Hole	0.079 in	0.079 in	30 µin
