644284 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 6POS IDC 18AWG GOLD

Part	Color	Pitch	Fastening Type	Wire Gauge	Number of Rows	Connector Type	Mounting Type	Wire Type	Features	Contact Finish	Cable Termination	Contact Finish Thickness	Number of Positions	Contact Type
TE Connectivity AMP Connectors 3-644284-6	Orange	0.156 in	Locking Ramp	18 AWG	1	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	Closed End Polarizing Key	Gold	IDC	15 µin	6	Female Socket
TE Connectivity AMP Connectors 644284-5	Orange	0.156 in	Locking Ramp	18 AWG	1	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	Closed End Polarizing Key	Gold	IDC	15 µin	5	Female Socket
TE Connectivity AMP Connectors 4-644284-0	Orange	0.156 in	Locking Ramp	18 AWG	1	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	Closed End Polarizing Key	Gold	IDC	15 µin	10	Female Socket

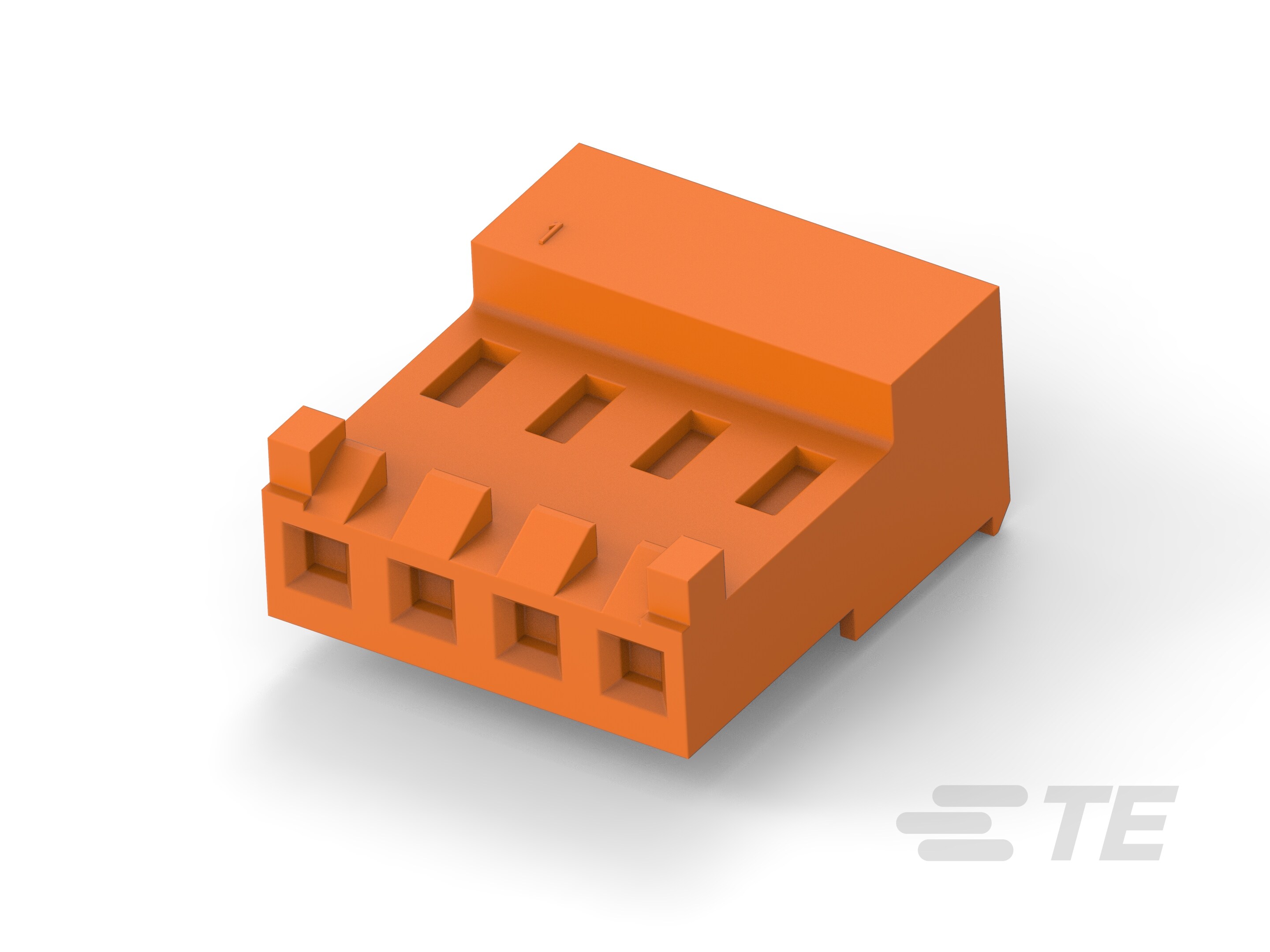

TE Connectivity AMP Connectors 3-644284-4	Orange	0.156 in	Locking Ramp	18 AWG	1	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	Closed End Polarizing Key	Gold	IDC	15 µin	4	Female Socket

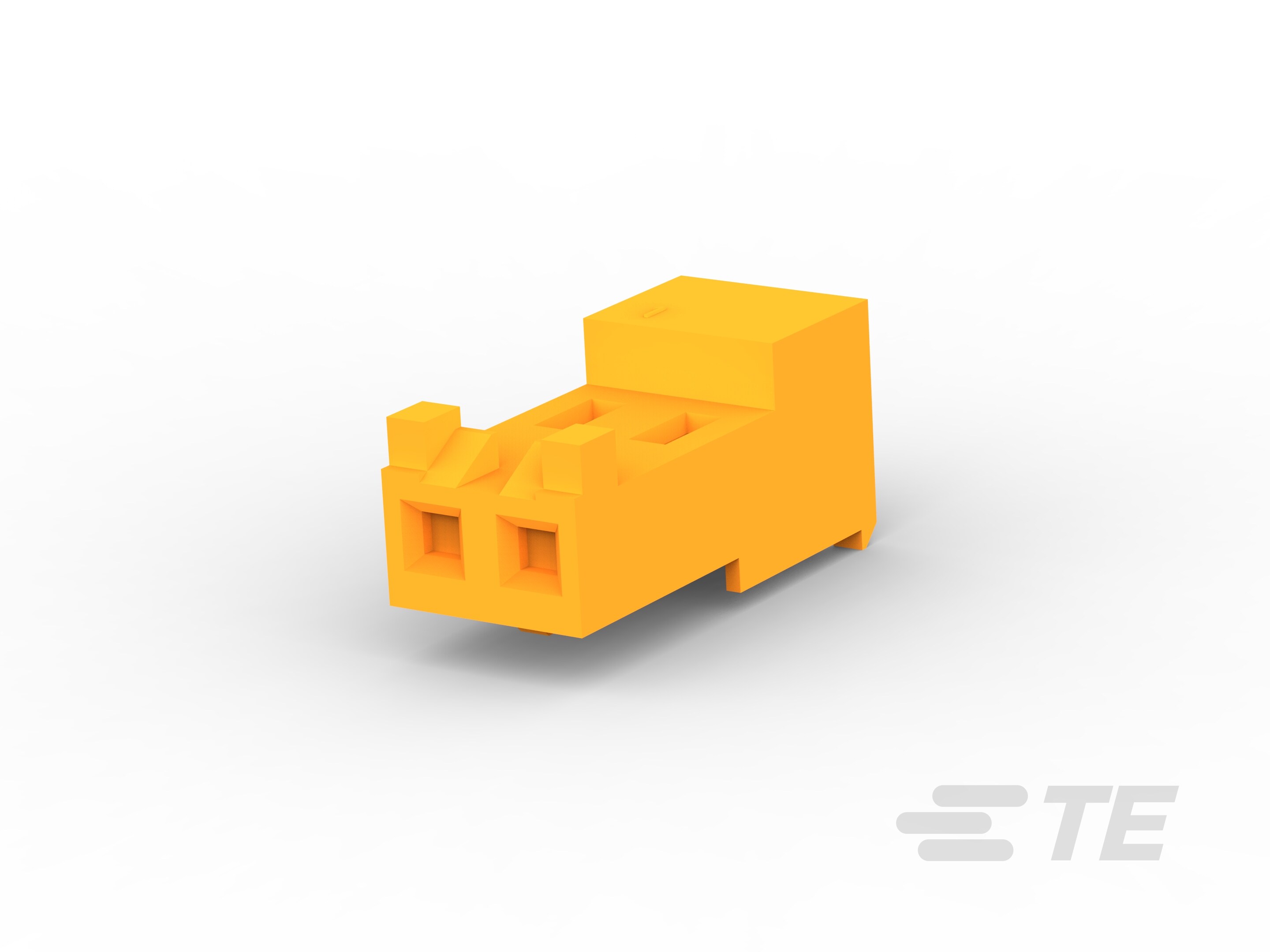

TE Connectivity AMP Connectors 3-644284-2	Orange	0.156 in	Locking Ramp	18 AWG	1	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	Closed End Polarizing Key	Gold	IDC	15 µin	2	Female Socket
TE Connectivity AMP Connectors 4-644284-2	Orange	0.156 in	Locking Ramp	18 AWG	1	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	Closed End Polarizing Key	Gold	IDC	15 µin	12	Female Socket
TE Connectivity AMP Connectors 3-644284-9	Orange	0.156 in	Locking Ramp	18 AWG	1	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	Closed End Polarizing Key	Gold	IDC	15 µin	9	Female Socket
TE Connectivity AMP Connectors 644284-8	Orange	0.156 in	Locking Ramp	18 AWG	1	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	Closed End Polarizing Key	Gold	IDC	15 µin	8	Female Socket
