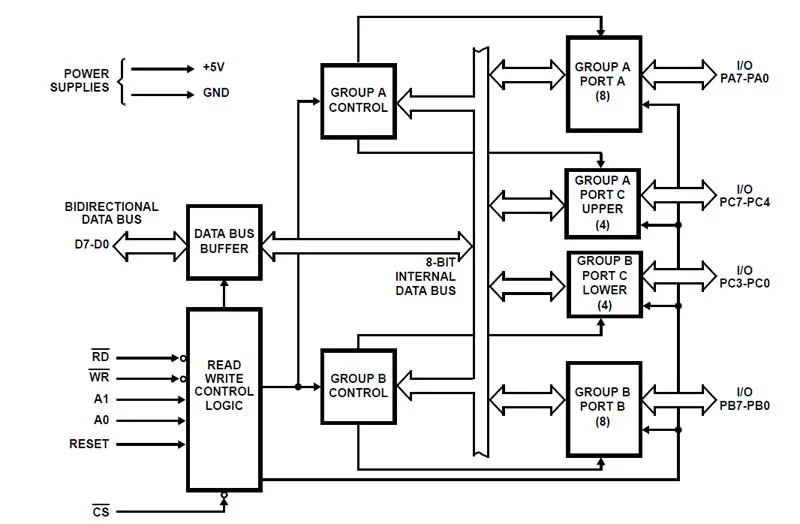

82C55A Series

Manufacturer: Renesas Electronics Corporation

Catalog

CMOS PROGRAMMABLE PERIPHERAL INTERFACE

Part	Interrupt Output	Output Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Current - Output Source/Sink	Mounting Type	Package Length	Package Name	Package Width	Interface	Operating Temperature (Min)	Operating Temperature (Max)	Number of I/O	Package / Case
Renesas Electronics Corporation IP82C55A	No	Open Drain	5.5 V	4.5 V	2.5 mA	Through Hole	0.6 in	40-DIP 40-PDIP	15.24 mm	Parallel	-40 °C	85 °C	24
Renesas Electronics Corporation IS82C55AZ96	No	Open Drain	5.5 V	4.5 V	2.5 mA	Surface Mount	16.58 mm	44-PLCC	16.58 mm	Parallel	-40 °C	85 °C	24	44-LCC (J-Lead)
Renesas Electronics Corporation IS82C55A-5Z96	No	Open Drain	5.5 V	4.5 V	2.5 mA	Surface Mount	16.58 mm	44-PLCC	16.58 mm	Parallel	-40 °C	85 °C	24	44-LCC (J-Lead)
Renesas Electronics Corporation ID82C55A	No	Open Drain	5.5 V	4.5 V	2.5 mA	Through Hole	0.6 in	40-CDIP 40-CERDIP	15.24 mm	Parallel	-40 °C	85 °C	24
Renesas Electronics Corporation CS82C55AZ	No	Open Drain	5.5 V	4.5 V	2.5 mA	Surface Mount	16.58 mm	44-PLCC	16.58 mm	Parallel	0 °C	70 °C	24	44-LCC (J-Lead)
Renesas Electronics Corporation IQ82C55A	No	Open Drain	5.5 V	4.5 V	2.5 mA	Surface Mount	10 mm	44-MQFP	10 mm	Parallel	-40 °C	85 °C	24	44-QFP
Renesas Electronics Corporation IQ82C55A96	No	Open Drain	5.5 V	4.5 V	2.5 mA	Surface Mount	10 mm	44-MQFP	10 mm	Parallel	-40 °C	85 °C	24	44-QFP
Renesas Electronics Corporation IS82C55A	No	Open Drain	5.5 V	4.5 V	2.5 mA	Surface Mount	16.58 mm	44-PLCC	16.58 mm	Parallel	-40 °C	85 °C	24	44-LCC (J-Lead)
Renesas Electronics Corporation CP82C55AZ	No	Open Drain	5.5 V	4.5 V	2.5 mA	Through Hole	0.6 in	40-DIP 40-PDIP	15.24 mm	Parallel	0 °C	70 °C	24
Renesas Electronics Corporation IP82C55AZ	No	Open Drain	5.5 V	4.5 V	2.5 mA	Through Hole	0.6 in	40-DIP 40-PDIP	15.24 mm	Parallel	-40 °C	85 °C	24
