85352I Series

12 Bit,2-to-1,3.3V,2.5V LVPECL Clock Buffer

Manufacturer: Renesas Electronics Corporation

Catalog

12 Bit,2-to-1,3.3V,2.5V LVPECL Clock Buffer

Part	Package / Case	Input Ratio	Output Ratio	Operating Temperature (Min)	Operating Temperature (Max)	Output	Frequency - Max	Type	Package Name	Package Width	Package Length	Number of Circuits	Differential Input	Differential Output	Input	Mounting Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Renesas Electronics Corporation 85352AYILF	48-TQFP Exposed Pad	2	12	-40 °C	85 °C	LVPECL	700 MHz	Multiplexer	48-PTQFP	7 mm	7 mm	1	Yes	Yes	HCSL LVDS LVHSTL LVPECL SSTL	Surface Mount	3.135 V	3.465 V
Renesas Electronics Corporation 85352AYILFT	48-TQFP Exposed Pad	2	12	-40 °C	85 °C	LVPECL	700 MHz	Multiplexer	48-PTQFP	7 mm	7 mm	1	Yes	Yes	HCSL LVDS LVHSTL LVPECL SSTL	Surface Mount	3.135 V	3.465 V

Catalog

12 Bit,2-to-1,3.3V,2.5V LVPECL Clock Buffer

Description

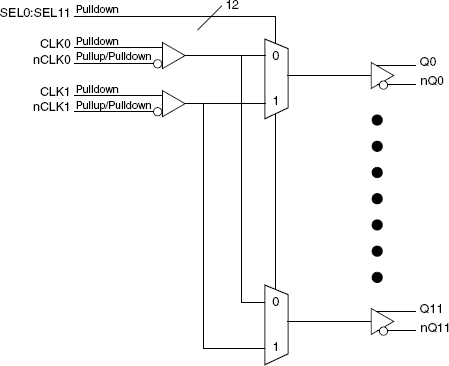

The 85352I is a 12 bit, 2-to-1 LVPECL Clock Buffer. Individual input select controls support independent multiplexer operation from a common clock input source. Clock inputs accept most standard differential levels. The 85352I is characterized at full 3.3V or mixed 3.3V core/2.5V output operating supply modes.
