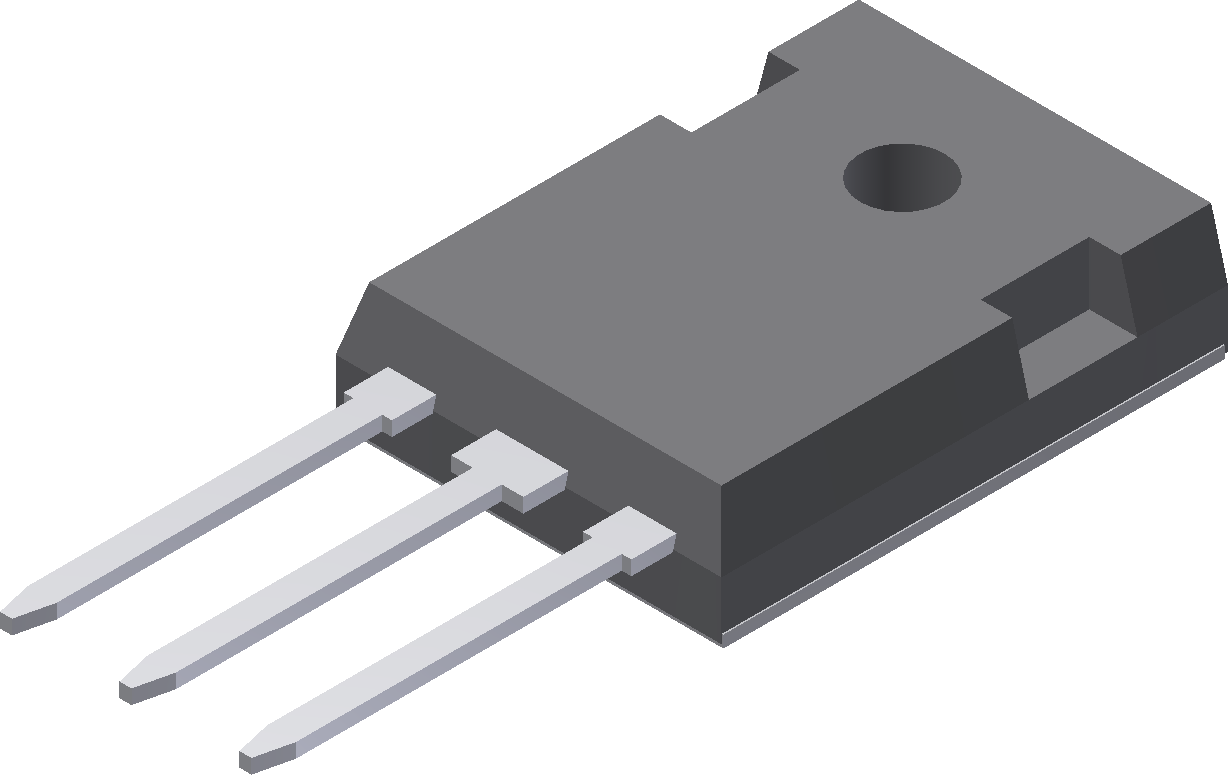

Power Thyristor Discretes-Triac TO-247AD
Description
AI
The High Efficiency TRIAC series offers various packages with improved forward voltage characteristics and breakdown voltages up to 1200V.
Beta
⌘K
Power Thyristor Discretes-Triac TO-247AD
Power Thyristor Discretes-Triac TO-247AD
| Part | Voltage - Off State | Package Name | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge Type | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge (Itsm) | Triac Type | Mounting Type | Voltage - Gate Trigger (Vgt) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1200 kV | TO-247 (IXTH) | TO-247-3 | -40 °C | 150 °C | 70 mA | Itsm | 50Hz 60Hz | 480 A 520 A | Standard | Through Hole | 1.7 V | 88 A | 70 mA | Single |
