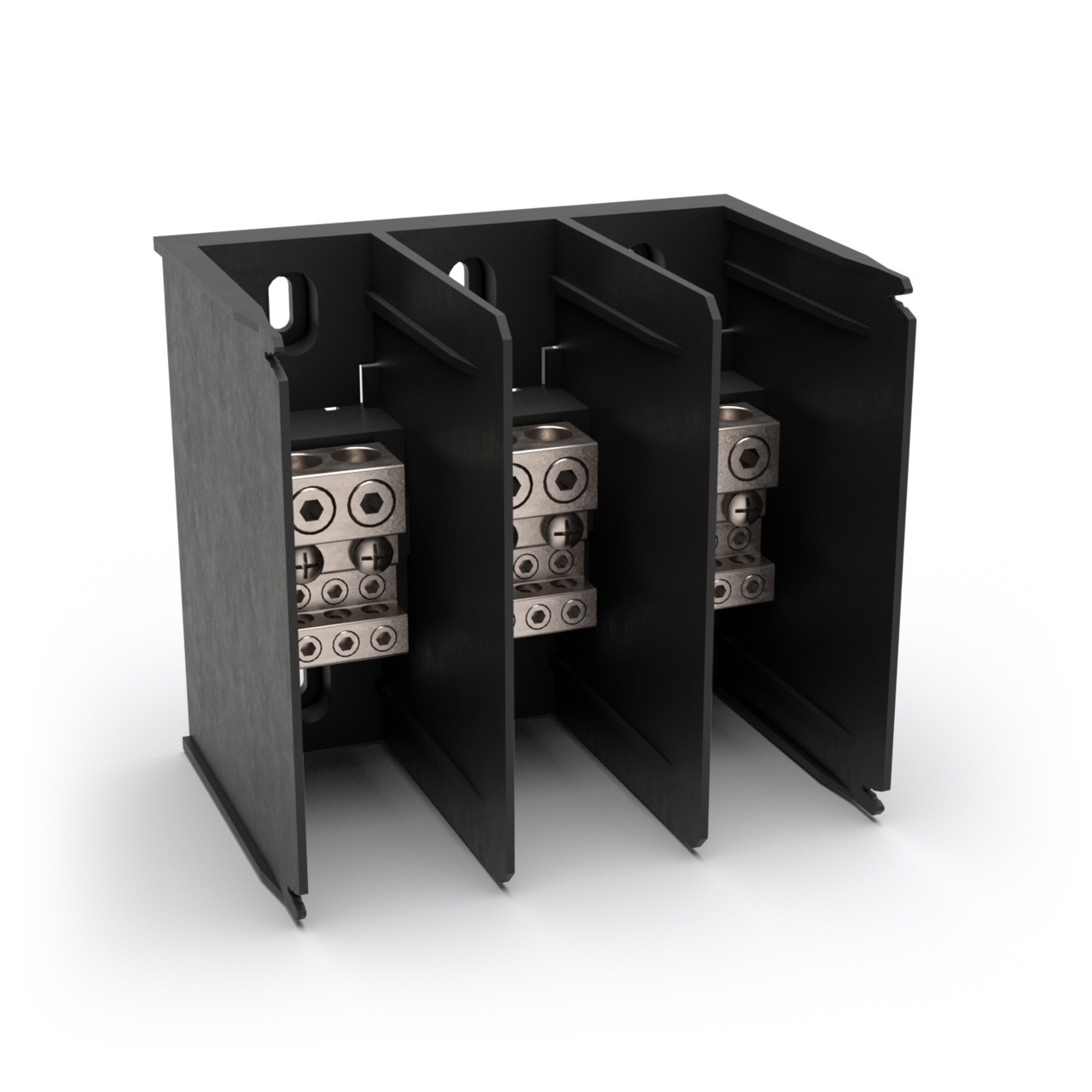

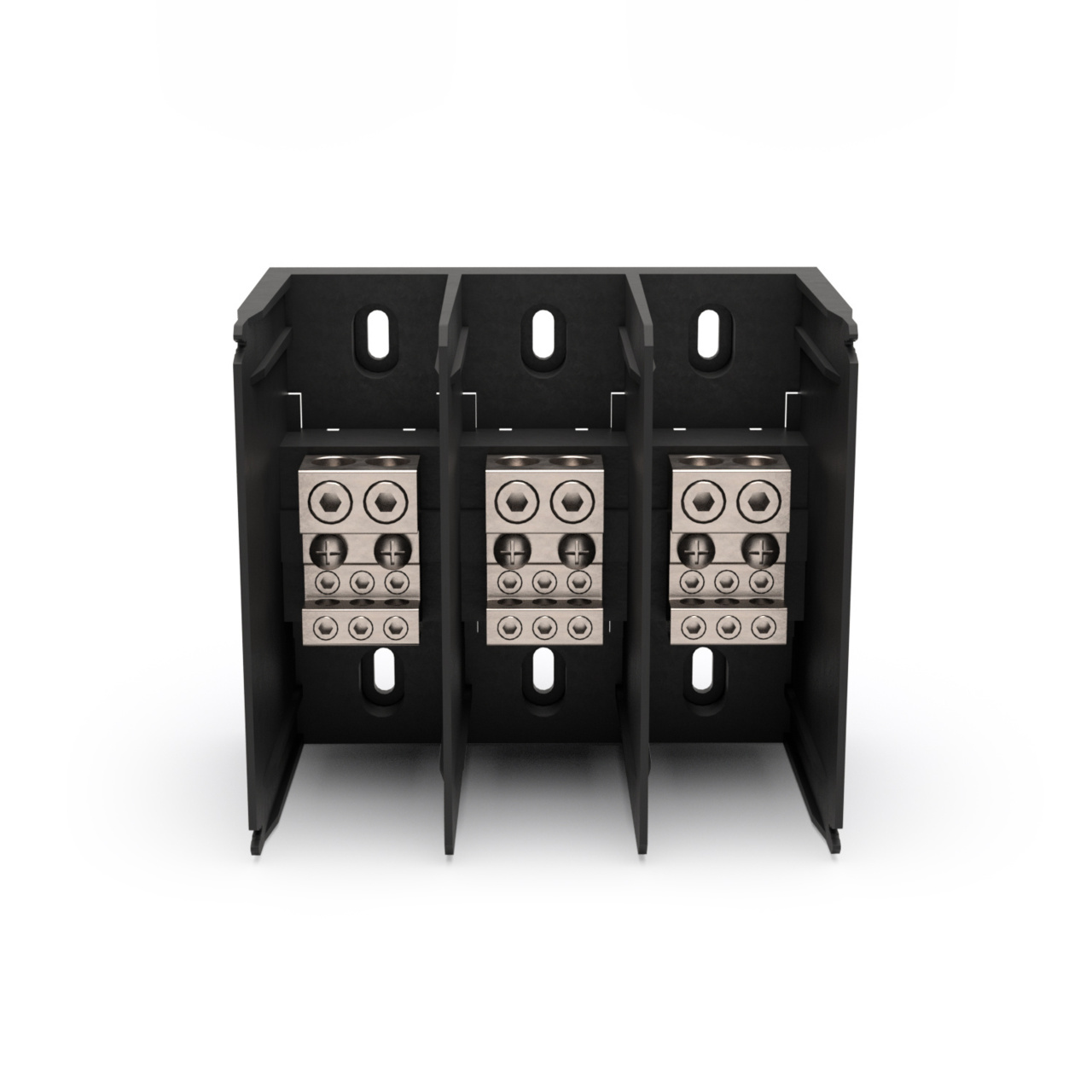

ACS 600V DISTRIBUTION BLK 350A 3 POLE
ACS 600V DISTRIBUTION BLK 350A 3 POLE
| Part | Current Rating | Number of Poles | Load Side Connection Type | Line Side Connections Per Pole | Load Side Wire/Stud Size (Count) | Load Side Wire/Stud Size (Designation) | Line Side Connection Type | Load Side Connections Per Pole | Voltage - Rated | Line Side Wire Size | Line Side Stud Size | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 350 A | 3 | Screw Connection | 2 | 4 | #14CU/AL | Screw Connection | 6 | 600 V | 2/0 | #14CU/AL | Power Splicer Terminal Block |
