215913 Series
Manufacturer: Molex
Beta
⌘K
MINI-FIT MAX RECEPTACLE HOUSING, SINGLE ROW, UL 94V-0, 2 CIRCUITS, GLOW-WIRE CAPABLE, BLACK
| Part | Contact Termination | Fastening Type | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Contact Type | Mounting Type | Insulation Material | Color | Number of Rows | Connector Type | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

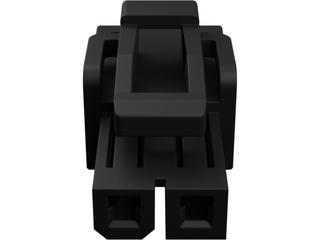

 Molex | Crimp | Latch Lock | 2 | -40 °C | 105 °C | Female Socket | Free Hanging (In-Line) | Nylon Polyamide (PA) | Black | 1 | Receptacle | 0.165 in |

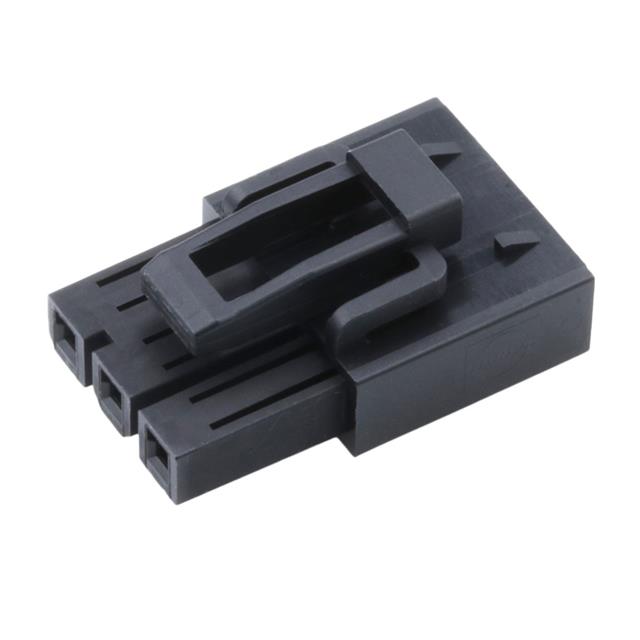

 Molex | Crimp | Latch Lock | 3 | -40 °C | 105 °C | Female Socket | Free Hanging (In-Line) | Nylon Polyamide (PA) | Black | 1 | Receptacle | 0.165 in |

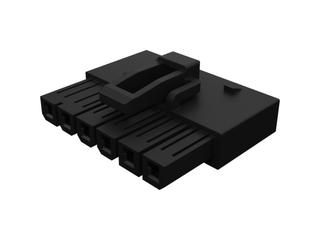

 Molex | Crimp | Latch Lock | 6 | -40 °C | 105 °C | Female Socket | Free Hanging (In-Line) | Nylon Polyamide (PA) | Black | 1 | Receptacle | 0.165 in |

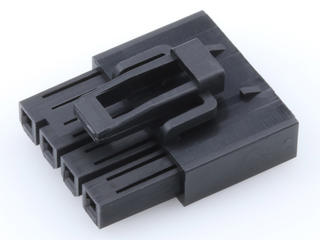

 Molex | Crimp | Latch Lock | 4 | -40 °C | 105 °C | Female Socket | Free Hanging (In-Line) | Nylon Polyamide (PA) | Black | 1 | Receptacle | 0.165 in |
 Molex | Crimp | Latch Lock | 5 | -40 °C | 105 °C | Female Socket | Free Hanging (In-Line) | Nylon Polyamide (PA) | Black | 1 | Receptacle | 0.165 in |
