52931 Series

Catalog

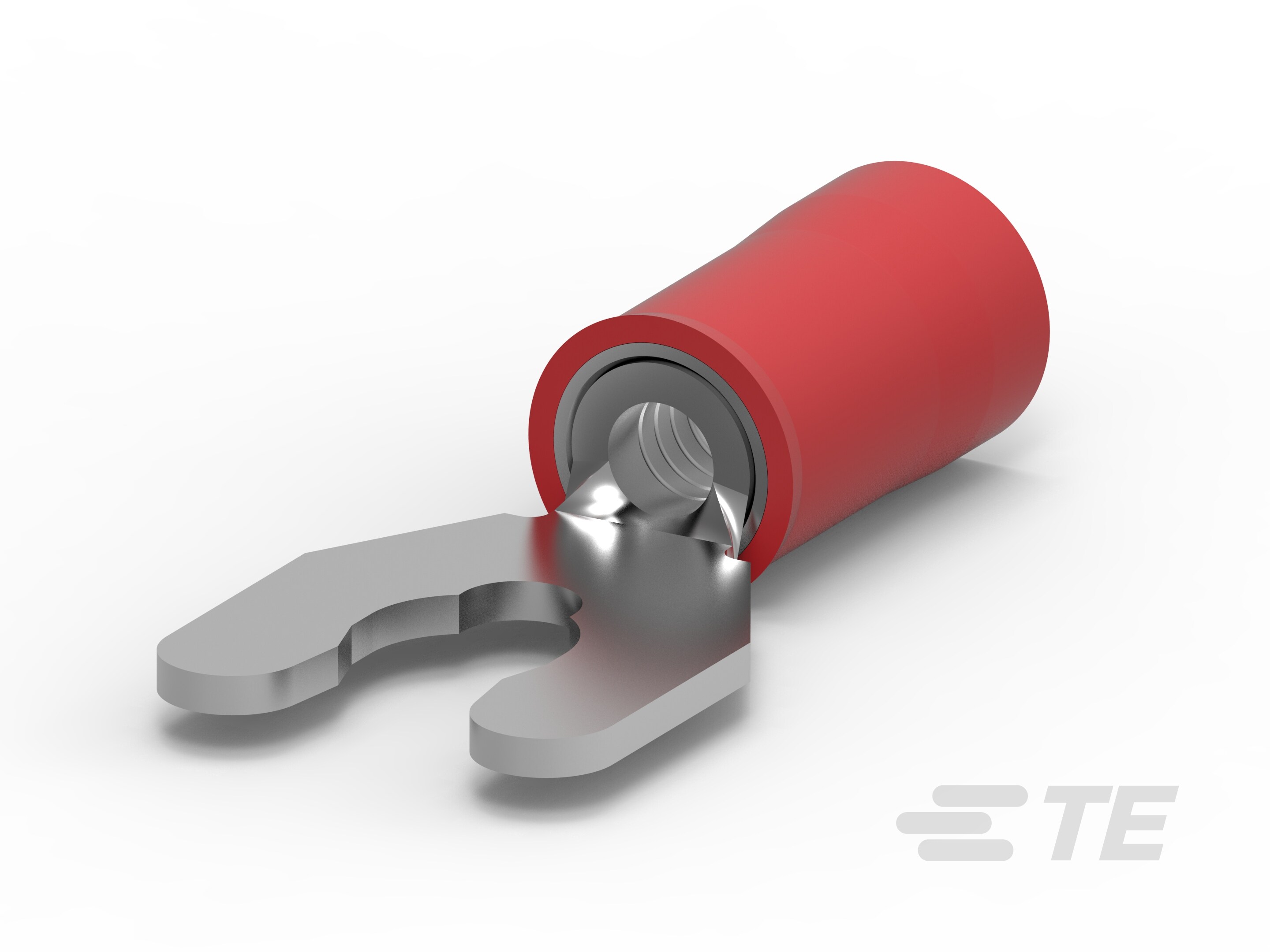

CONN SPADE TERM 16-22AWG #10 RED

Part	Color	Termination	Terminal Type	Features	Length - Overall	Contact Finish	Contact Material	Width - Outer Edges	Stud/Tab Size	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Mounting Type	Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Tongue Inside Opening	Length - Ring Center to Termination	Length - Termination
TE Connectivity AMP Connectors 8-52931-1	Red	Crimp	Snap Spring	Serrated Termination	0.908 in	Tin	Copper	0.406 in	10 Stud	16 AWG	22 AWG	Free Hanging (In-Line)	Insulated	0.08 in	0.125 in	Nylon PA Polyamide	0.19 in	0.281 in	0.404 in
TE Connectivity AMP Connectors 52931-1	Red	Crimp	Snap Spring	Serrated Termination	0.908 in	Tin	Copper	0.406 in	10 Stud	16 AWG	22 AWG	Free Hanging (In-Line)	Insulated	0.08 in	0.125 in	Nylon PA Polyamide	0.19 in	0.281 in	0.404 in
