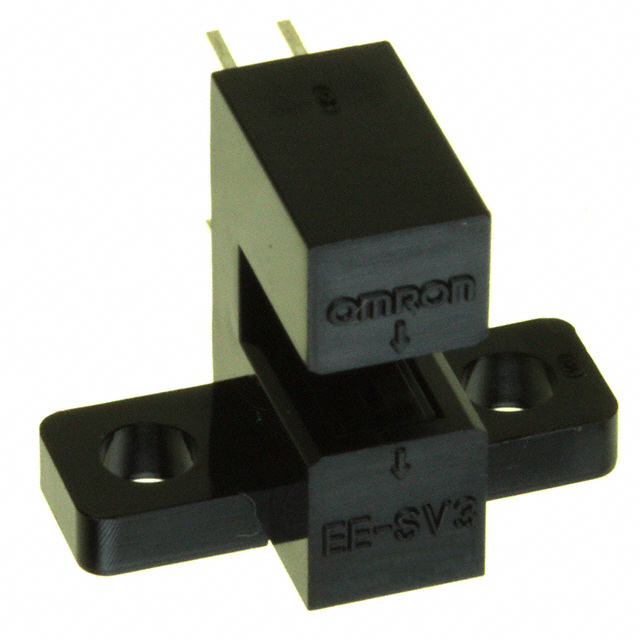

EE-SV3 Series

Catalog

SENSOR OPT SLOT PHOTOTRAN PCB MT

Part	Type	Sensing Method	Current - Collector (Ic) (Max)	Output Configuration	Sensing Distance	Response Time	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Current - DC Forward (If) (Max)	Mounting Type
Omron Electronics Inc-EMC Div EE-SV3-B	Unamplified	Through-Beam	20 mA	Phototransistor	0.134 "	4 µs	85 °C	-25 °C	30 V	PCB Mount	50 mA	Through Hole
Omron Electronics Inc-EMC Div EE-SV3-CS	Unamplified	Through-Beam	20 mA	Phototransistor	0.134 "	4 µs	85 °C	-25 °C	30 V	PCB Mount	50 mA	Solder
Omron Electronics Inc-EMC Div EE-SV3-C	Unamplified	Through-Beam	20 mA	Phototransistor	0.134 "	4 µs	85 °C	-25 °C	30 V	PCB Mount	50 mA	Through Hole
Omron Electronics Inc-EMC Div EE-SV3	Unamplified	Through-Beam	20 mA	Phototransistor	0.134 "	4 µs	85 °C	-25 °C	30 V	Connector Module Slot Type	50 mA	Chassis Mount
