1609090 Series

Catalog

LINE FILTER 250VAC 16A CHASSIS

Part	Operating Temperature (Min)	Operating Temperature (Max)	Inductance	Current	Voltage - Rated AC	Mounting Type	Filter Type	Approval Agency	Configuration	Termination Style	Applications	Frequency - Operating (Min)	Frequency - Operating	Frequency - Operating (Max)
TE Connectivity Corcom Filters 3-1609090-9	-10 °C	40 °C	1200 µH	16 A	250 V	Chassis Mount	Single Phase	CSA UR VDE	Single Stage	Quick Connect Threaded Post (M8)	General Purpose	50 Hz	50Hz 60Hz	60 Hz
TE Connectivity Corcom Filters 3-1609090-8	-10 °C	40 °C	500 µH	16 A	250 V	Chassis Mount	Single Phase	CSA UR VDE	Single Stage	Quick Connect Threaded Post (M8)	General Purpose	50 Hz	50Hz 60Hz	60 Hz

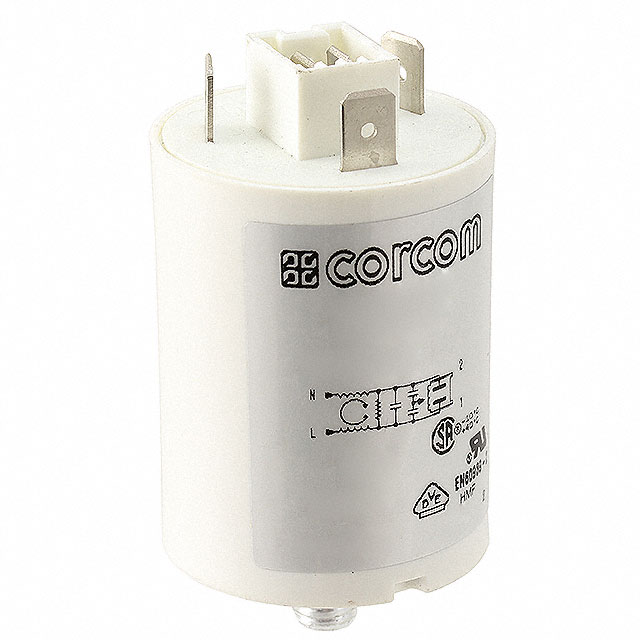

TE Connectivity Corcom Filters 4-1609090-3	-10 °C	40 °C	2 mH	16 A	250 V	Chassis Mount	Single Phase	CSA UR VDE	Single Stage	Quick Connect Threaded Post (M8)	General Purpose	50 Hz	50Hz 60Hz	60 Hz
TE Connectivity Corcom Filters 4-1609090-2	-10 °C	40 °C	1200 µH	16 A	250 V	Chassis Mount	Single Phase	CSA UR VDE	Single Stage	Quick Connect Threaded Post (M8)	General Purpose	50 Hz	50Hz 60Hz	60 Hz
