052610 Series

Manufacturer: Molex

Catalog

CONN VERT 25POS 1MM SMD

Part	Locking Feature	Connector/Contact Type	Termination	Features	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Material	Contact Material	Mounting Type	Voltage Rating	Material Flammability Rating	Housing Material	Number of Positions	Cable End Type	Height Above Board	Pitch	FFC, FCB Thickness	Current Rating	Mating Cycles	Contact Finish Thickness	Flat Flex Type	Actuator Color	Housing Color

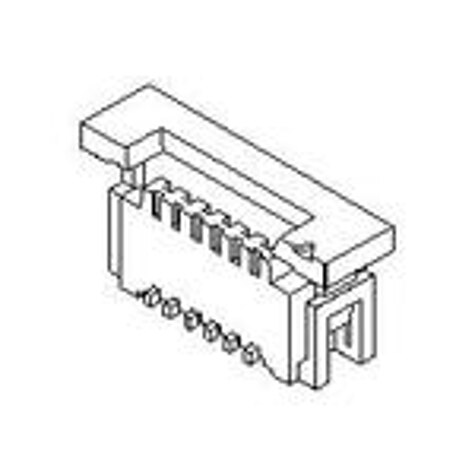

Molex 0526102571	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Tin Bismuth	-40 °C	85 °C	Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount	125 V	UL94 V-0	Nylon 4/6 PA46 Polyamide	25	Tapered	0.226 in	0.039 in	0.3 mm	1 A	30 cycles	39.4 Ąin
Molex 0526100933	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Tin Bismuth	-40 °C	85 °C	Glass Filled Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount	125 V	UL94 V-0	Glass Filled Nylon PA Polyamide	9	Tapered	0.226 in	0.039 in	0.3 mm	1 A	30 cycles	39.4 Ąin	FPC	Brown	White
Molex 0526101275	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Tin Bismuth			Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount		UL94 V-0	Nylon 4/6 PA46 Polyamide	12	Tapered	0.226 in	0.039 in	0.3 mm				FPC
Molex 0526100533	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Tin Bismuth	-40 °C	85 °C	Glass Filled Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount	125 V	UL94 V-0	Glass Filled Nylon PA Polyamide	5	Tapered	0.226 in	0.039 in	0.3 mm	1 A	30 cycles	39.4 Ąin	FPC	Brown	White
Molex 0526101375	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Tin Bismuth			Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount		UL94 V-0	Nylon 4/6 PA46 Polyamide	13	Tapered	0.226 in	0.039 in	0.3 mm				FPC
Molex 0526101672	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Gold	-40 °C	85 °C	Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount	125 V	UL94 V-0	Nylon 4/6 PA46 Polyamide	16	Tapered	0.226 in	0.039 in	0.3 mm	1 A	30 cycles	3.94 µin	FPC
Molex 0526102171	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Tin Bismuth	-40 °C	85 °C	Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount	125 V	UL94 V-0	Nylon 4/6 PA46 Polyamide	21	Tapered	0.226 in	0.039 in	0.3 mm	1 A	30 cycles	39.4 Ąin
Molex 0526101271	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Tin Bismuth	-40 °C	85 °C	Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount	125 V	UL94 V-0	Nylon 4/6 PA46 Polyamide	12	Tapered	0.226 in	0.039 in	0.3 mm	1 A	30 cycles	39.4 Ąin
Molex 0526100690	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Tin	-20 °C	85 °C	Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount	125 V	UL94 V-0	Nylon 4/6 PA46 Polyamide	6	Tapered	0.226 in	0.039 in	0.3 mm	1 A			FPC
Molex 0526103075	Slide Lock	1 Sided Contacts Vertical	Solder	Zero Insertion Force (ZIF)	Tin Bismuth			Polyphenylene Sulfide (PPS)	Phosphor Bronze	Surface Mount		UL94 V-0	Nylon 4/6 PA46 Polyamide	30	Tapered	0.226 in	0.039 in	0.3 mm				FPC
