A3RRB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - APR50B/AE50M/APR50B

Part	Contact Finish	Number of Positions	Features	Number of Rows	Cable Termination	Connector Type	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Color	Length [x]	Length [x]	Length	Length	Length

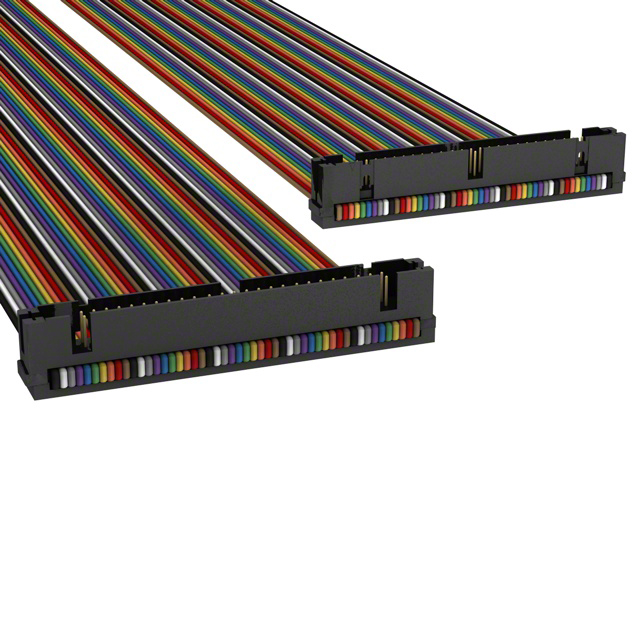

TE Connectivity Raychem Cable Protection A3RRB-5018M	Gold	50	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm	Multiple Ribbon	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3RRB-5018G	Gold	50	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm		457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3RRB-3406M	Gold	34	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm	Multiple Ribbon			152.4 mm	6 "	0.5 '

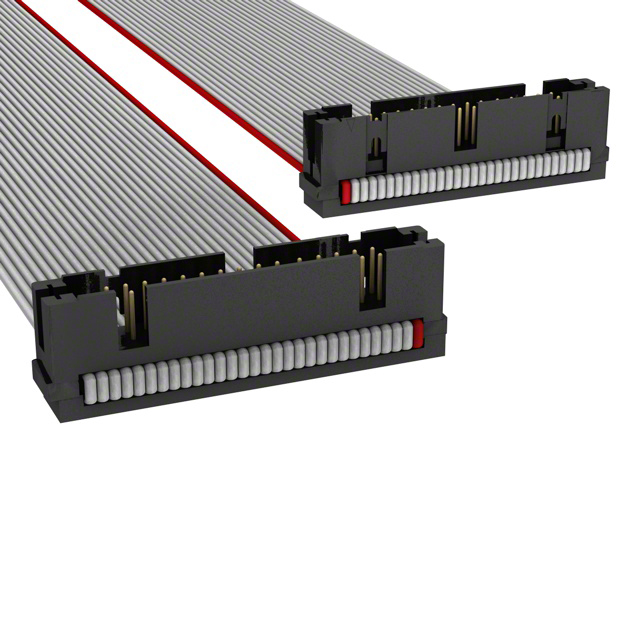

TE Connectivity Raychem Cable Protection A3RRB-3006G	Gold	30	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm				152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3RRB-5006M	Gold	50	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm	Multiple Ribbon			152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3RRB-3036G	Gold	30	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm		914.4 mm	3 ft
TE Connectivity Raychem Cable Protection A3RRB-5006G	Gold	50	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm				152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3RRB-1418M	Gold	14	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm	Multiple Ribbon	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3RRB-1006M	Gold	10	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm	Multiple Ribbon			152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3RRB-6406M	Gold	64	Polarizing Key Strain Relief	2	IDC	Plug to Plug	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	0.1 in	2.54 mm	Multiple Ribbon			152.4 mm	6 "	0.5 '
