282966 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERMI-BLOK HEADER ASSY 11P 7

Part	Material Flammability Rating	Housing Material	Contact Tail Length	Insulation Height	Contact Material	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Number of Positions	Header Orientation Angle	Header Orientation	Pitch	Contact Mating Finish	Number of Levels	Mounting Type	Color	Type	Current - UL	Voltage - UL
TE Connectivity AMP Connectors 1-282966-1	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.138 in	0.329 in	Copper Alloy	11	-40 °C	110 °C	Solder	11	90 °	Right Angle	0.3 in	Tin	1	Through Hole	Green	Header Male Pins Shrouded (4 Side)	15 A	300 V
TE Connectivity AMP Connectors 282966-4	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.138 in	0.329 in	Copper Alloy	4	-40 °C	110 °C	Solder	4	90 °	Right Angle	0.3 in	Tin	1	Through Hole	Green	Header Male Pins Shrouded (4 Side)	15 A	300 V
TE Connectivity AMP Connectors 282966-8	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.138 in	0.329 in	Copper Alloy	8	-40 °C	110 °C	Solder	8	90 °	Right Angle	0.3 in	Tin	1	Through Hole	Green	Header Male Pins Shrouded (4 Side)	15 A	300 V
TE Connectivity AMP Connectors 282966-2	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.138 in	0.329 in	Copper Alloy	2	-40 °C	110 °C	Solder	2	90 °	Right Angle	0.3 in	Tin	1	Through Hole	Green	Header Male Pins Shrouded (4 Side)	15 A	300 V

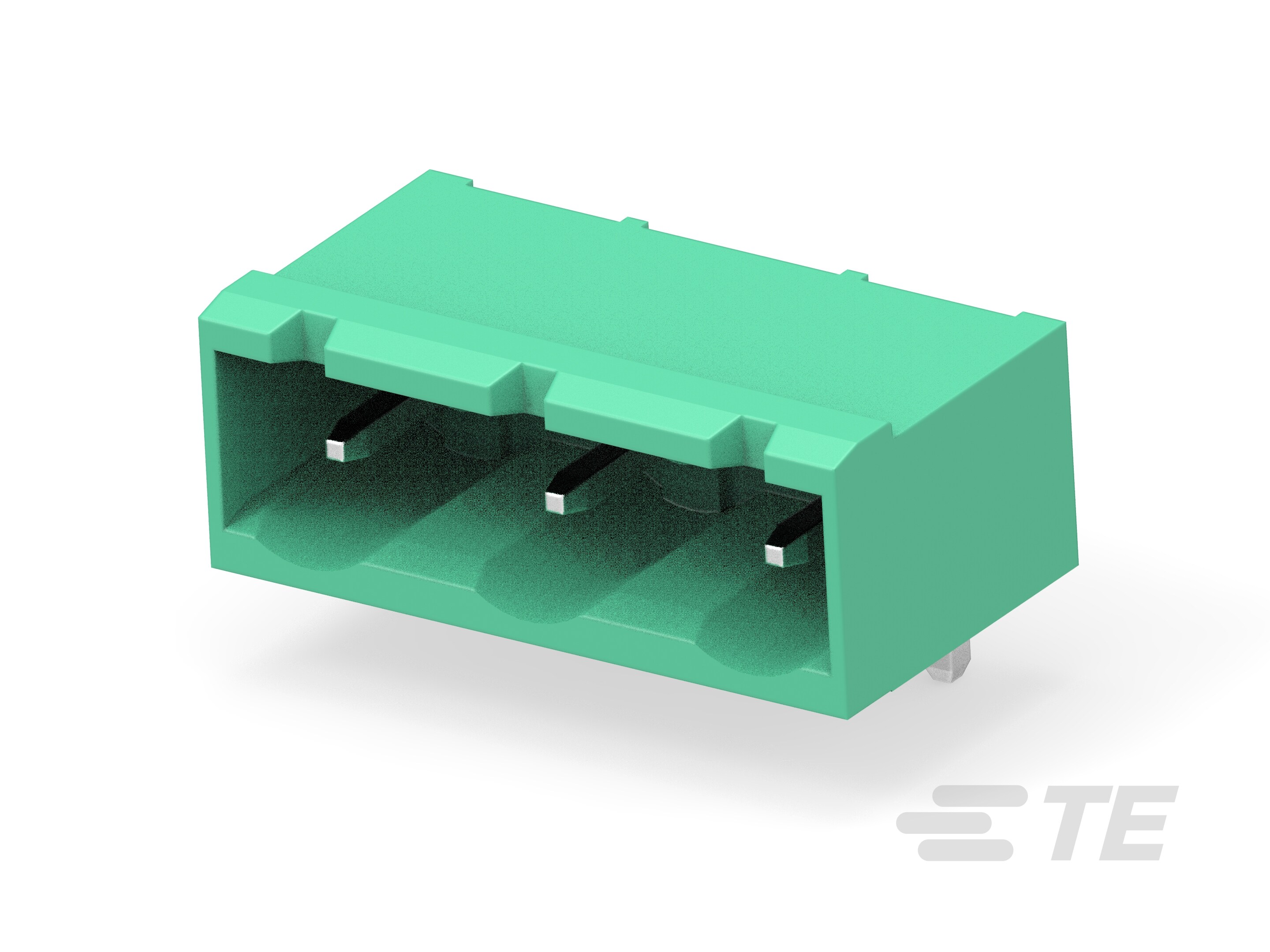

TE Connectivity AMP Connectors 282966-3	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.138 in	0.329 in	Copper Alloy	3	-40 °C	110 °C	Solder	3	90 °	Right Angle	0.3 in	Tin	1	Through Hole	Green	Header Male Pins Shrouded (4 Side)	15 A	300 V
TE Connectivity AMP Connectors 282966-5	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.138 in	0.329 in	Copper Alloy	5	-40 °C	110 °C	Solder	5	90 °	Right Angle	0.3 in	Tin	1	Through Hole	Green	Header Male Pins Shrouded (4 Side)	15 A	300 V
TE Connectivity AMP Connectors 282966-6	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.138 in	0.329 in	Copper Alloy	6	-40 °C	110 °C	Solder	6	90 °	Right Angle	0.3 in	Tin	1	Through Hole	Green	Header Male Pins Shrouded (4 Side)	15 A	300 V
TE Connectivity AMP Connectors 1-282966-2	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.138 in	0.329 in	Copper Alloy	12	-40 °C	110 °C	Solder	12	90 °	Right Angle	0.3 in	Tin	1	Through Hole	Green	Header Male Pins Shrouded (4 Side)	15 A	300 V
