DCNHR150PFA Series

DCNHR 150A 450V P 9-36Vcoil

Catalog

DCNHR 150A 450V P 9-36Vcoil

Part	Must Operate Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Coil Voltage (Max)	Coil Voltage (Min)	Termination Style	Contact Rating (Current)	Mounting Type	Must Release Voltage	Switching Voltage DC (Max)	Form A Count	Contact Form
LITTELFUSE DCNHR150PFA	9 VDC	-40 °C	85 °C	36 VDC	9 VDC	Stud Wire Leads	150 A	Chassis Mount	6 VDC	900 VDC	1	SPST-NO

Catalog

DCNHR 150A 450V P 9-36Vcoil

Description

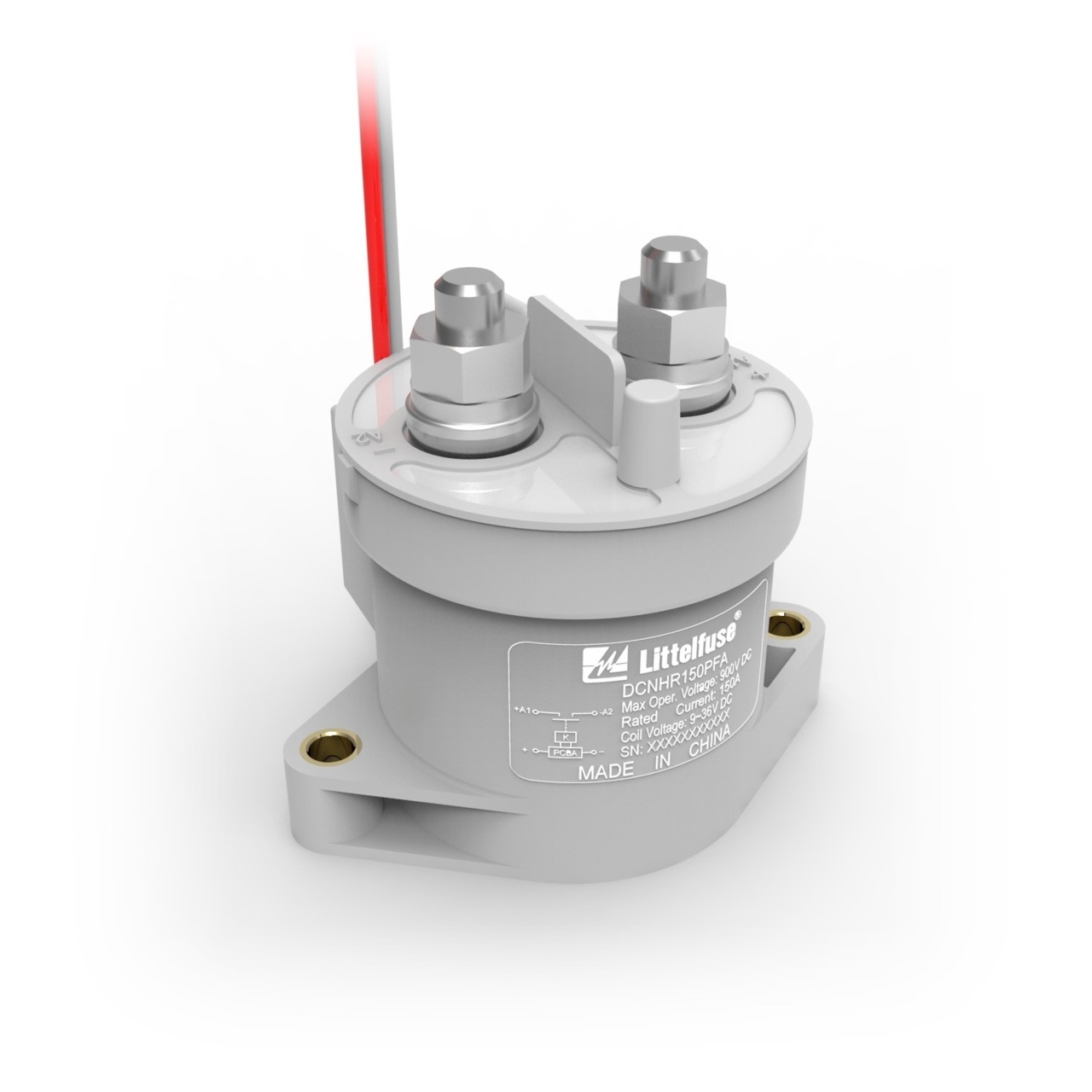

The DCNHR Series 900V Max High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff. This DCNHR Series contactor relay (DCNHR150PFA) is for 150A contact switching and features polarized main contacts.
