A3DDH Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - AKR20H/AE20M/AKR20H

Part	Cable Termination	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions	Contact Finish	Number of Rows	Color	Pitch - Connector	Pitch - Connector	Connector Type	Shielding	Length	Length	Length	Number of Positions

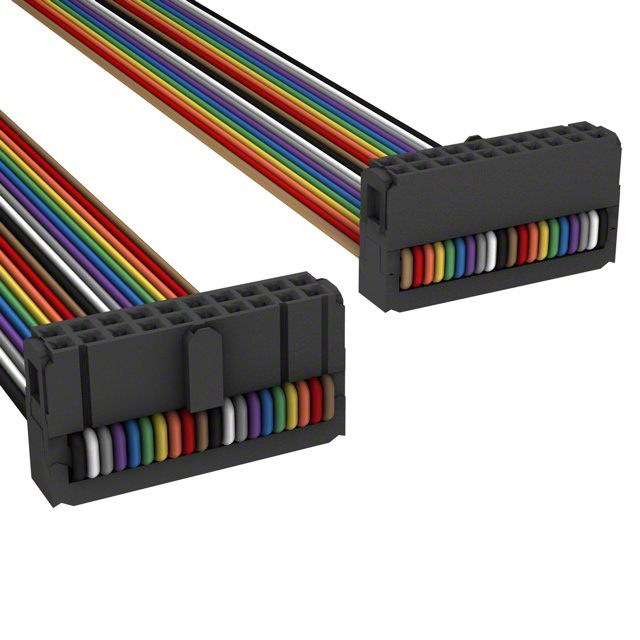

TE Connectivity Raychem Cable Protection A3DDH-2036M	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief	20	Gold	2	Multiple Ribbon	0.1 in	2.54 mm	Socket to Socket	Unshielded
TE Connectivity Raychem Cable Protection A3DDH-6036M	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief	60	Gold	2	Multiple Ribbon	0.1 in	2.54 mm	Socket to Socket	Unshielded

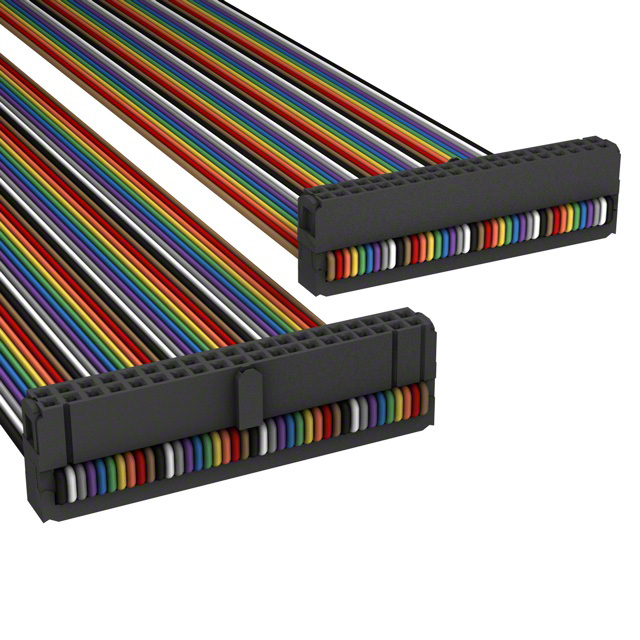

TE Connectivity Raychem Cable Protection A3DDH-4036M	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief	40	Gold	2	Multiple Ribbon	0.1 in	2.54 mm	Socket to Socket	Unshielded
TE Connectivity Raychem Cable Protection A3DDH-4436G	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief	44	Gold	2		0.1 in	2.54 mm	Socket to Socket	Unshielded
TE Connectivity Raychem Cable Protection A3DDH-1006G	IDC			0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief	10	Gold	2		0.1 in	2.54 mm	Socket to Socket	Unshielded	152.4 mm	6 "	0.5 '

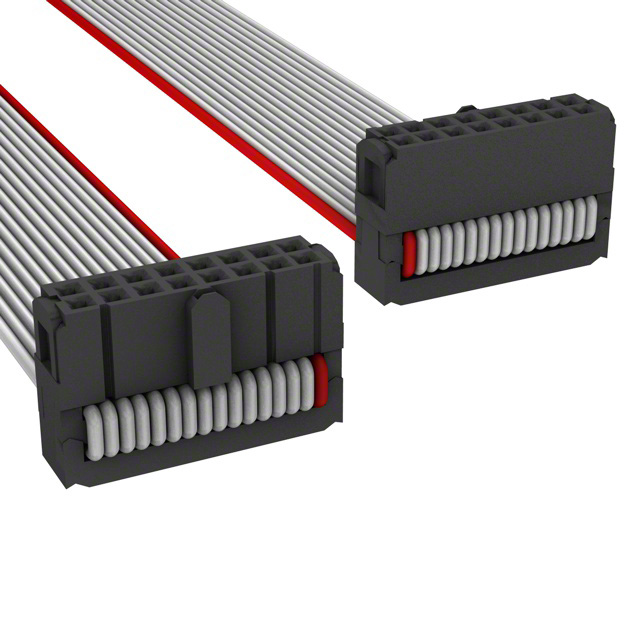

TE Connectivity Raychem Cable Protection A3DDH-1618G	IDC	1.5 ft	457.2 mm	0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief		Gold	2		0.1 in	2.54 mm	Socket to Socket	Unshielded				16
TE Connectivity Raychem Cable Protection A3DDH-1418G	IDC	1.5 ft	457.2 mm	0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief	14	Gold	2		0.1 in	2.54 mm	Socket to Socket	Unshielded
TE Connectivity Raychem Cable Protection A3DDH-3436M	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief	34	Gold	2	Multiple Ribbon	0.1 in	2.54 mm	Socket to Socket	Unshielded
TE Connectivity Raychem Cable Protection A3DDH-5018G	IDC	1.5 ft	457.2 mm	0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief	50	Gold	2		0.1 in	2.54 mm	Socket to Socket	Unshielded
TE Connectivity Raychem Cable Protection A3DDH-2406M	IDC			0.05 "	1.27 mm	15 µin	0.38 µm	Polarizing Key Strain Relief	24	Gold	2	Multiple Ribbon	0.1 in	2.54 mm	Socket to Socket	Unshielded	152.4 mm	6 "	0.5 '
