52943 Series

Catalog

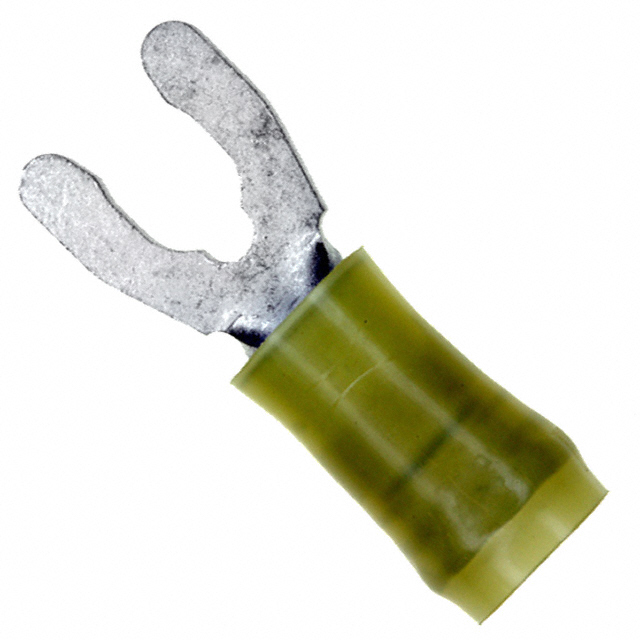

CONN SPADE TERM 10-12AWG #10 YEL

Part	Material - Insulation	Tongue Inside Opening	Length - Ring Center to Termination	Insulation Diameter (Min)	Insulation Diameter (Max)	Length - Termination	Stud/Tab Size	Terminal Type	Mounting Type	Insulation	Width - Outer Edges	Contact Material	Contact Finish	Color	Features	Termination	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
TE Connectivity AMP Connectors 8-52943-1	Nylon PA Polyamide	0.19 in	0.276 in	0.15 in	0.25 in	0.601 in	10 Stud	Snap Spring	Free Hanging (In-Line)	Insulated	0.406 in	Phosphor Bronze	Tin	Yellow	Serrated Termination	Crimp	1.1 in	12 AWG	10 AWG
TE Connectivity AMP Connectors 52943-1	Nylon PA Polyamide	0.19 in	0.276 in	0.15 in	0.25 in	0.601 in	10 Stud	Snap Spring	Free Hanging (In-Line)	Insulated	0.406 in	Phosphor Bronze	Tin	Yellow	Serrated Termination	Crimp	1.1 in	12 AWG	10 AWG
