K3HB-XV Series
Manufacturer: Omron Automation and Safety
Beta
⌘K

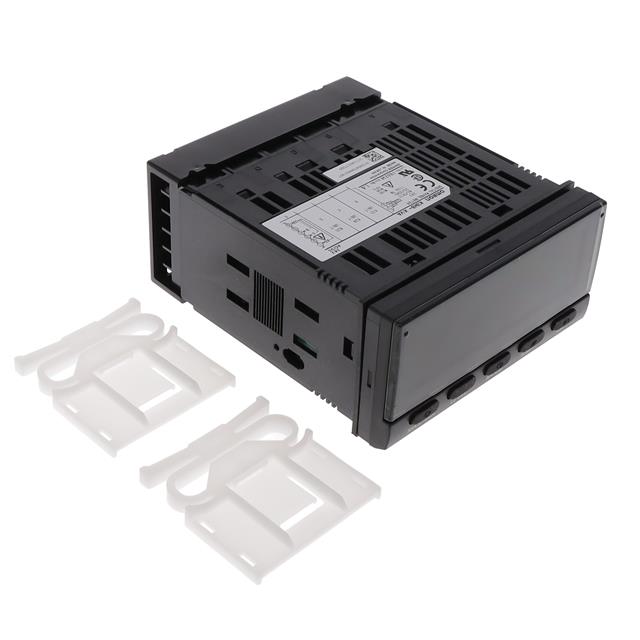

PROCESS MTR 199.99VDC LCD PNL MT
| Part | Weight | Operating Temperature (Min) | Operating Temperature (Max) | Display Type | Ingress Protection Description | Ingress Protection IP Rating | Features | Output Type | Display Characters - Height (Option 2) | Display Characters - Height | Measuring Type | Mounting Type | Voltage - Supply (Option 1) | Voltage - Supply | Voltage - Supply (Option 2) | Type | Minimum Number of Characters Per Row | Maximum Number of Characters Per Row | Measuring Range (DC) Minimum | Measuring Range (DC) Maximum | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Termination Style | Measuring Voltage Range (Minimum) | Measuring Voltage Range (Maximum) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Relay (Count) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 0.662 lb | -10 °C | 55 °C | Backlight LCD - Dual Color Characters | Dust Tight Water Resistant | IP66 | Option Cards Available | Option Cards Available | 0.192 in | 0.56 in | Process | Panel Mount | 24 VAC | 24 VDC | 24 DC | Process Meter | 5 characters | 5 characters | -199.99 VDC | 199.99 VDC | 45 mm | Rectangular | 92 mm | Screw Terminal | |||||
Omron Automation and Safety | 0.662 lb | -10 °C | 55 °C | Backlight LCD - Dual Color Characters | Dust Tight Water Resistant | IP66 | Event Input Excitation Supply | 0.192 in | 0.56 in | Process | Panel Mount | 24 VAC | 24 VDC | 24 DC | Process Meter | 5 characters | 5 characters | -199.99 VDC | 199.99 VDC | 45 mm | Rectangular | 92 mm | Screw Terminal | ||||||
 Omron Automation and Safety | 0.662 lb | -10 °C | 55 °C | Backlight LCD - Dual Color Characters | Dust Tight Water Resistant | IP66 | Option Cards Available | Option Cards Available | 0.192 in | 0.56 in | Process | Panel Mount | 24 VAC | 24 VDC | 24 DC | Process Meter | 5 characters | 5 characters | 45 mm | Rectangular | 92 mm | Screw Terminal | 0 V | 400 VAC | |||||
Omron Automation and Safety | 0.662 lb | -10 °C | 55 °C | Backlight LCD - Dual Color Characters | Dust Tight Water Resistant | IP66 | Event Input Excitation Supply | Analog Solid State (5) | 0.192 in | 0.56 in | Process | Panel Mount | Process Meter | 5 characters | 5 characters | -199.99 VDC | 199.99 VDC | 45 mm | Rectangular | 92 mm | Screw Terminal | 100 VAC | 240 VAC | ||||||
Omron Automation and Safety | 0.662 lb | -10 °C | 55 °C | Backlight LCD - Dual Color Characters | Dust Tight Water Resistant | IP66 | Event Input | Solid State (5) | 0.192 in | 0.56 in | Process | Panel Mount | Process Meter | 5 characters | 5 characters | -199.99 VDC | 199.99 VDC | 45 mm | Rectangular | 92 mm | Screw Terminal | 100 VAC | 240 VAC | ||||||
 Omron Automation and Safety | 0.662 lb | -10 °C | 55 °C | Backlight LCD - Dual Color Characters | Dust Tight Water Resistant | IP66 | Option Cards Available | Option Cards Available | 0.192 in | 0.56 in | Process | Panel Mount | Process Meter | 5 characters | 5 characters | -199.99 VDC | 199.99 VDC | 45 mm | Rectangular | 92 mm | Screw Terminal | 100 VAC | 240 VAC | ||||||
Omron Automation and Safety | 0.662 lb | -10 °C | 55 °C | Backlight LCD - Dual Color Characters | Dust Tight Water Resistant | IP66 | Event Input Excitation Supply | Relay | 0.192 in | 0.56 in | Process | Panel Mount | 24 VAC | 24 VDC | 24 DC | Process Meter | 5 characters | 5 characters | -199.99 VDC | 199.99 VDC | 45 mm | Rectangular | 92 mm | Screw Terminal | 3 |
