72V3612 Series

64 x 36 x 2 SyncBiFIFO, 3.3V

Manufacturer: Renesas Electronics Corporation

Catalog

64 x 36 x 2 SyncBiFIFO, 3.3V

Part	FWFT Support	Expansion Type	Mounting Type	Bus Directional	Access Time	Function	Operating Temperature (Max)	Operating Temperature (Min)	Memory Depth	Memory Size (Total)	Memory Width	Package / Case	Data Rate	Package Length	Package Name	Package Width	Programmable Flags Support	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Retransmit Capability
Renesas Electronics Corporation 72V3612L12PFG	No	Width	Surface Mount	Bi-Directional	8 ns	Synchronous	70 °C	0 °C	64	4.5 K	36 bit	120-LQFP	83 MHz	14 mm	120-TQFP	14 mm	Yes	3.6 V	3 V	No

Catalog

64 x 36 x 2 SyncBiFIFO, 3.3V

Description

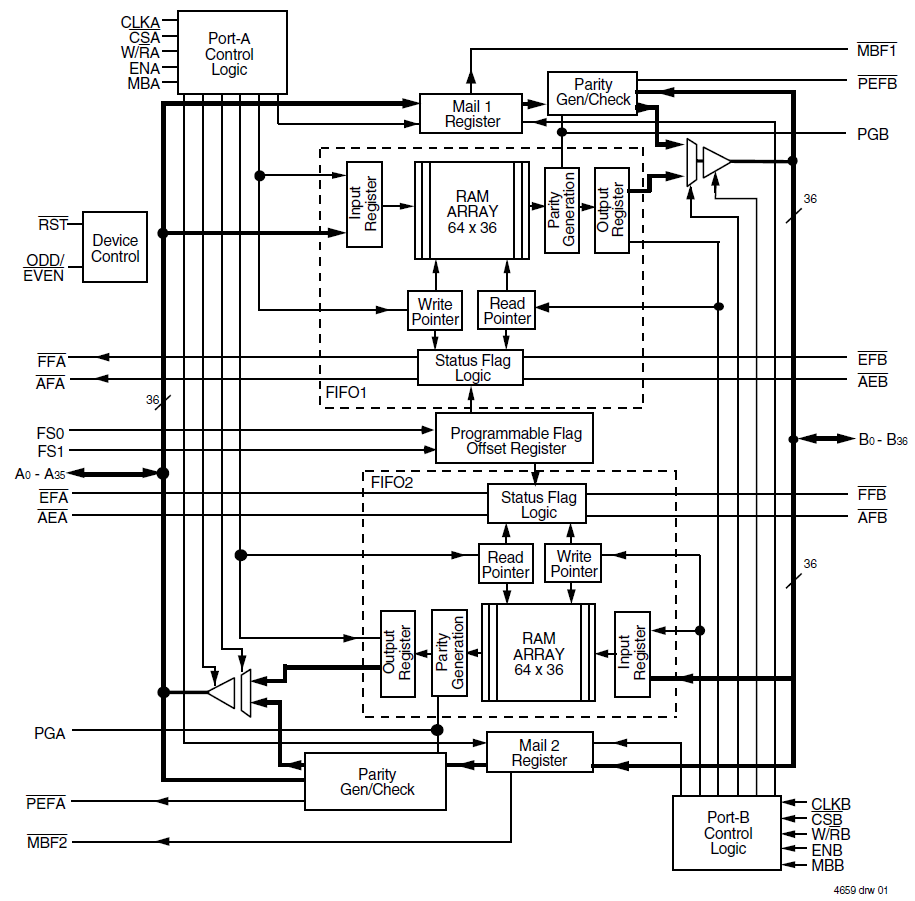

The 72V3612 is a 3.3V version of the 723612. Two independent 64 x 36 dual-port SRAM FIFOs on board the chip buffer data in opposite directions. Communication between each port can bypass the FIFOs via two 36-bit mailbox registers. The enables for each port are arranged to provide a simple bi-directional interface between microprocessors and/or buses with synchronous control.
