5645384 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

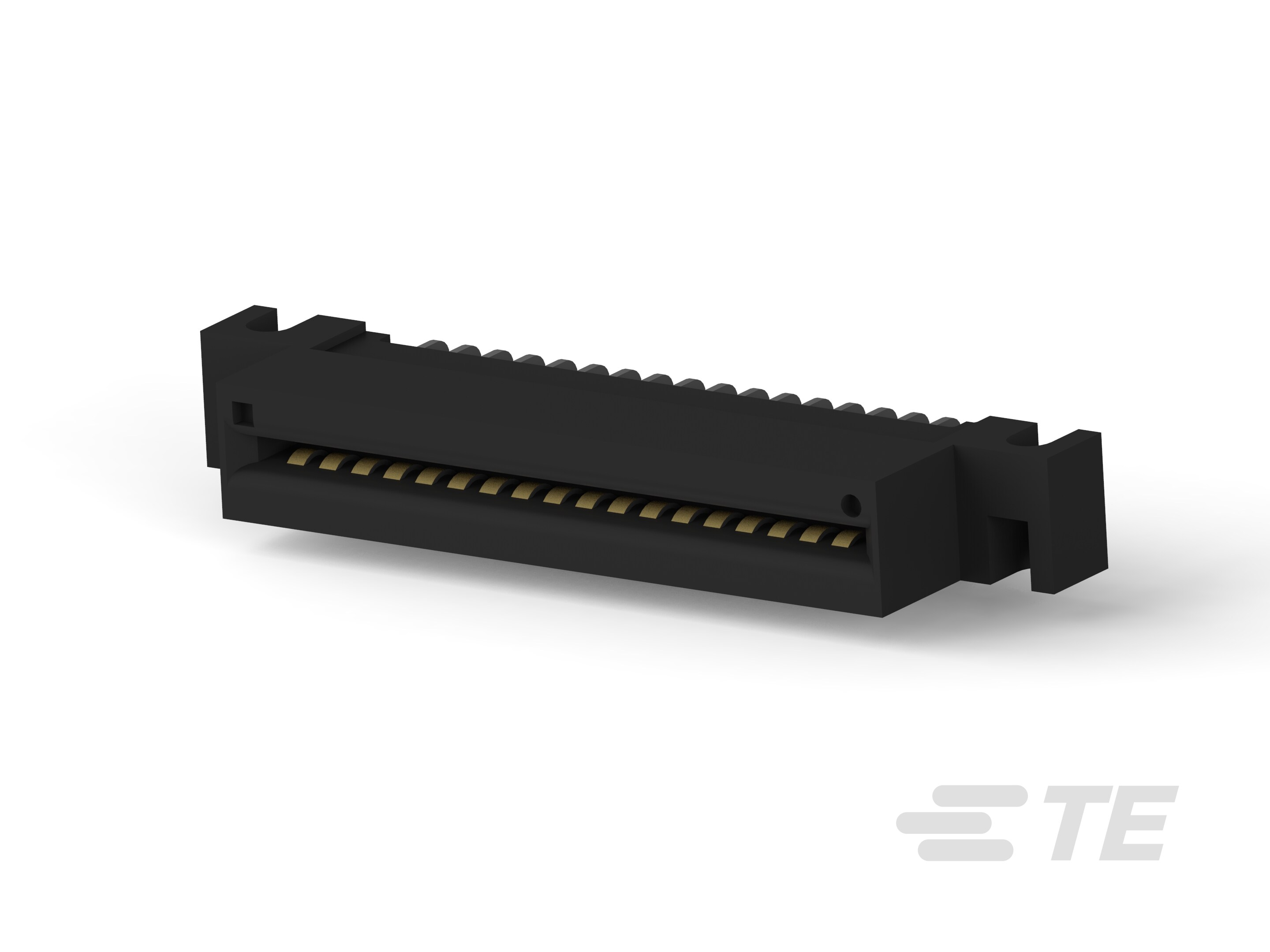

CONN EDGE DUAL FMALE 36POS 0.100
| Part | Number of Rows | Number of Positions | Termination | Operating Temperature (Min) | Operating Temperature (Max) | Pitch | Read Out | Card Type | Contact Finish Thickness | Mounting Type | Color | Contact Finish | Flange Feature Diameter | Flange Feature | Contact Material | Card Thickness (Min) | Card Thickness (Max) | Gender | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | 36 | Solder | -55 °C | 85 °C | 0.1 in | Dual | Dual Edge Non Specified | 30 µin | Right Angle Through Hole | Black | Gold | 0.128 in | Flush Mount Side Opening Unthreaded | Phosphor Bronze | 0.054 in | 0.07 in | Female | Glass Filled Polyester |
 TE Connectivity AMP Connectors | 2 | 20 40 | Solder | -55 °C | 85 °C | 0.1 in | Dual | Dual Edge Non Specified | 30 µin | Right Angle Through Hole | Black | Gold | 0.128 in | Flush Mount Side Opening Unthreaded | Phosphor Bronze | 0.054 in | 0.07 in | Female | Glass Filled Polyester |
