647892 Series

Catalog

RECTANGULAR CONNECTOR, AMP POWER 50 SERIES, 2 CONTACTS, HERMAPHRODITIC, CRIMP, 1 ROW

Part	Voltage Rating	Current Rating	Material - Insulation	Contact Finish	Contact Material	Fastening Type	Mounting Type	Number of Rows	Connector Poles	Connector Style	Wire Gauge	Number of Positions	Termination	Connector Type	Color

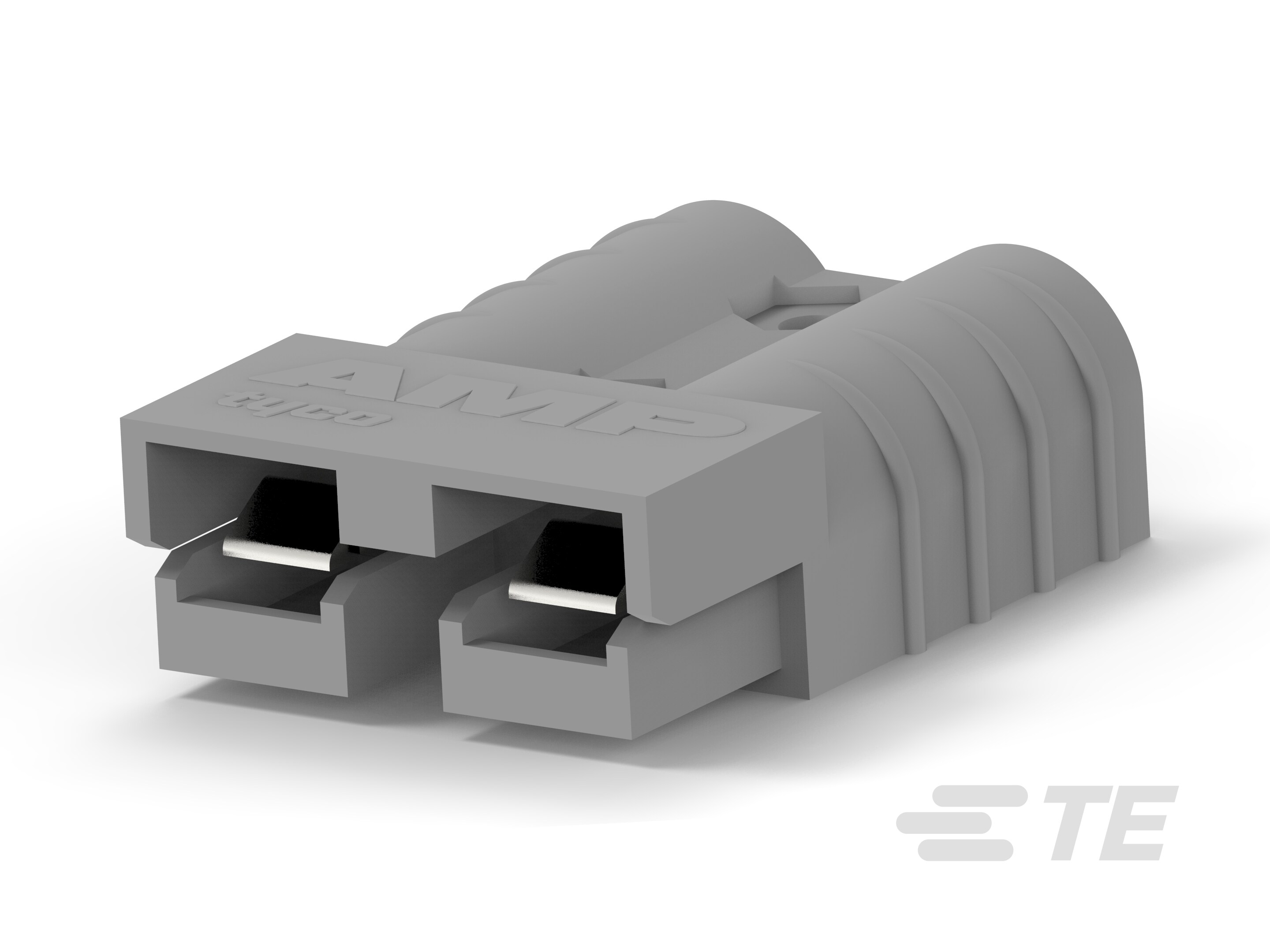

TE Connectivity AMP Connectors 647892-4	600 V	50 A	PC Polycarbonate	Silver	Copper	Spring Retention	Free Hanging (In-Line)	1	2 Poles	2 Poles	6 AWG	2	Crimp	Non-Gendered	Gray
TE Connectivity AMP Connectors 647892-3	600 V	50 A	PC Polycarbonate	Silver	Copper	Spring Retention	Free Hanging (In-Line)	1	2 Poles	2 Poles	6 AWG	2	Crimp	Non-Gendered	Red
