Y101132C Series
Manufacturer: LITTELFUSE
Beta
⌘K

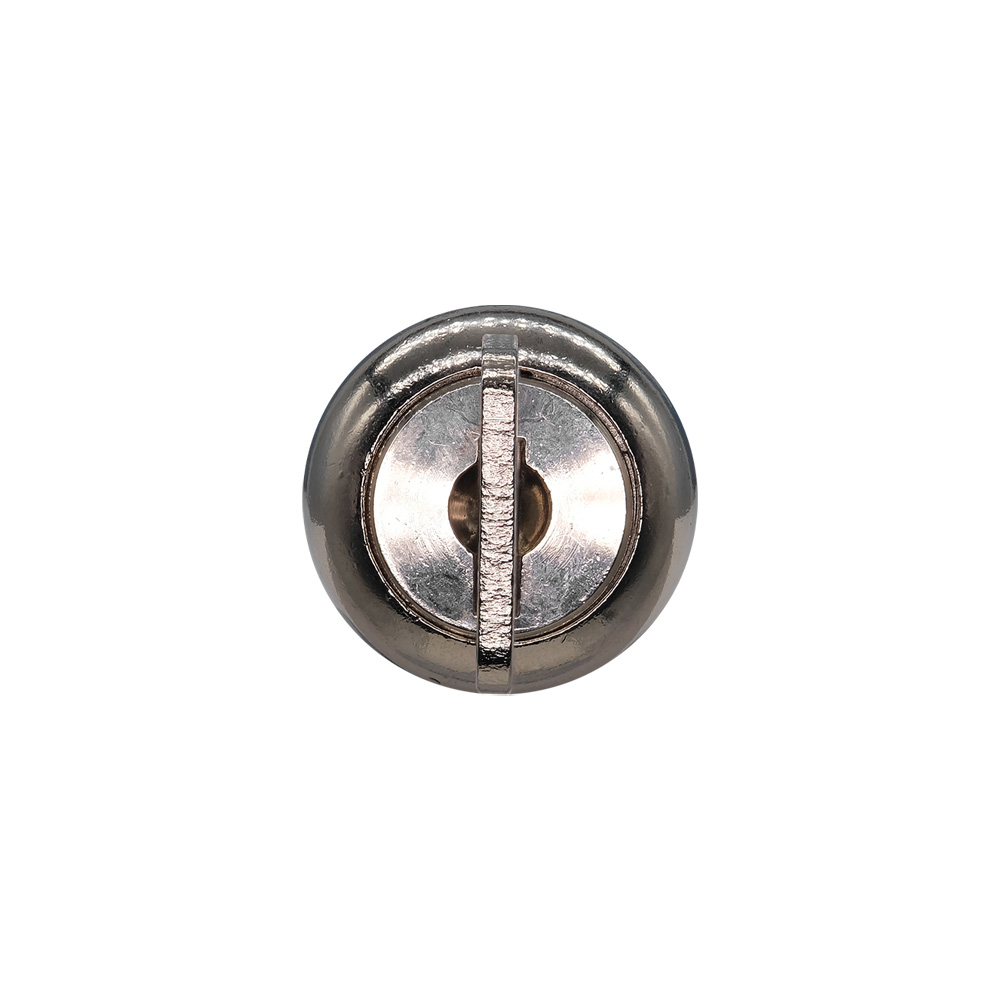

SWITCH KEYLOCK 2POS SPDT 4A 125V
| Part | Current Rating | Angle of Throw | Mounting Type | Voltage Rating - DC | Termination Style | Panel Cutout Diameter | Panel Cutout Shape | Removable Positions Count | Switch Function | Number of Positions | Voltage Rating - AC | Circuit | Contact Material | Features | Contact Finish | Actuator Type | Electrical Life (Cycles) | Depth Behind Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 4 A | 90 ° | Panel Mount | 28 V | Solder Lug | 19.3 mm | Circular | 1 | On-On | 2 | 125 V | SPDT | Copper | Epoxy Sealed Terminals | Silver | Flat Key | 10000 Cycles | 28.83 mm |
 LITTELFUSE | 4 A | 90 ° | Panel Mount | 28 V | Wire Leads | 19.3 mm | Circular | 1 | On-On | 2 | 125 V | SPDT | Copper | Silver | Flat Key | 10000 Cycles | 23.14 mm |
