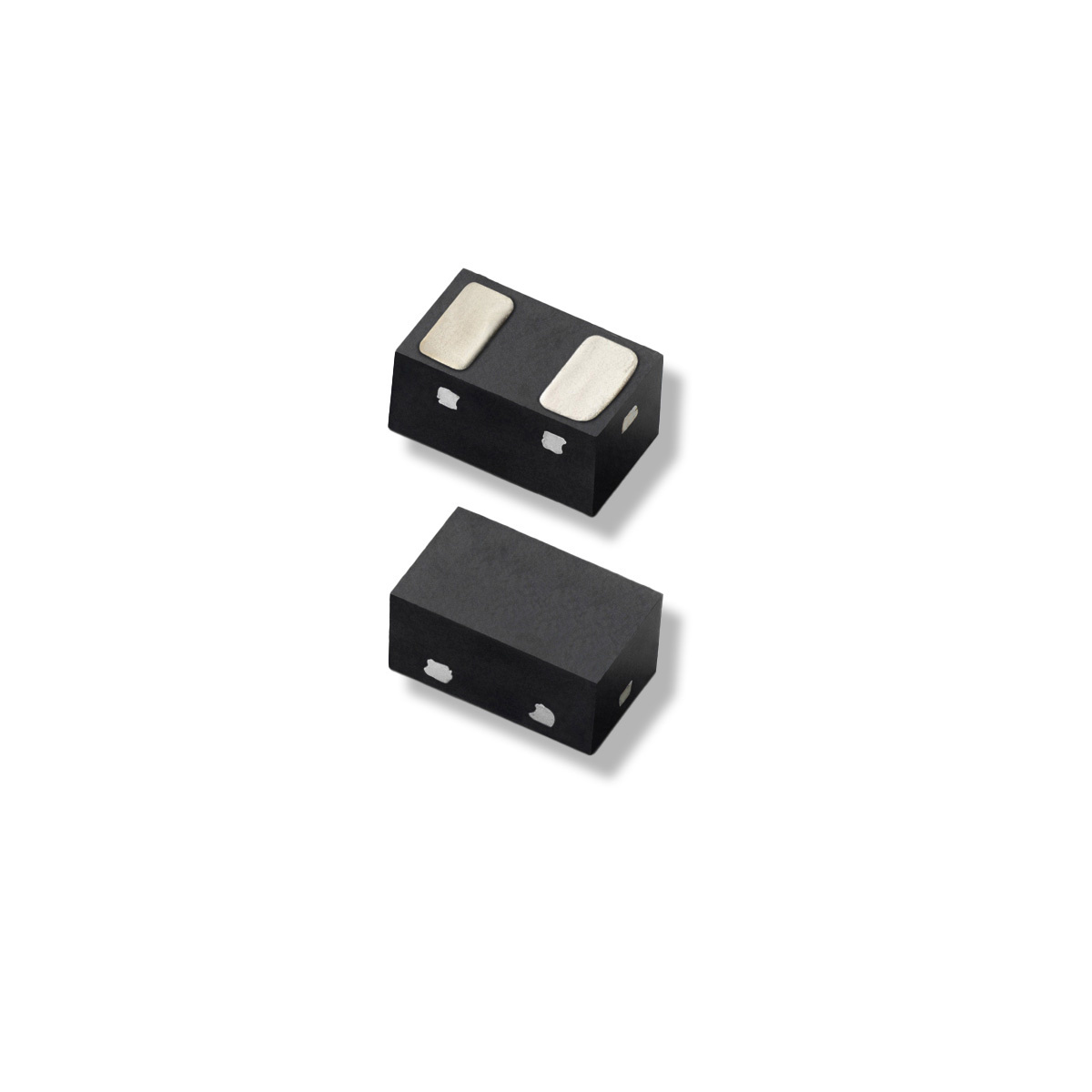

AQHV36-01ETG Series

1Ch 200W 36V Undirectional TVS Diode

Catalog

1Ch 200W 36V Undirectional TVS Diode

Part	Package Name	Mounting Type	Power Line Protection	Type	Voltage - Breakdown (Min)	Voltage - Reverse Standoff (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Qualification	Power - Peak Pulse	Capacitance	Voltage - Clamping (Max)	Grade	Unidirectional Channels	Current - Peak Pulse	Package / Case
LITTELFUSE AQHV36-01ETG	SOD-882	Surface Mount	No	Zener	40 V	36 V	-40 °C	150 °C	AEC-Q101	200 W	25 pF	60 V	Automotive	1	2 A	SOD-882

Catalog

1Ch 200W 36V Undirectional TVS Diode

Description

The AQHVxx-01ETG series is designed to provide an option for very fast acting, high performance over-voltage protection devices. Ideally suited for power interfaces, passenger charging interfaces, and well as LED lighting modules, and low speed I/Os. It will protect sensitive equipment from damage due to electrostatic discharge (ESD) and other overvoltage transients. The AQHVxx-01ETG series can safely absorb repetitive ESD strikes above the maximum level of the IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation and safely conduct up to 8A (AQHV12) of induced surge current (IEC 61000-4-5 2nd edition, tP=8/20μs) with very low clamping voltages.
