3208 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERMINAL,SOLIS SPD FLG 16-14 8

Part	Length - Termination	Length - Ring Center to Termination	Tongue Inside Opening	Width - Outer Edges	Length - Overall	Terminal Type	Mounting Type	Features	Termination	Contact Material	Insulation	Stud/Tab Size	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Diameter - Barrel OD	Diameter - Ring ID	Diameter - Barrel ID	Tab Thickness	Terminal Style	Color	Insulation Diameter (Max)	Insulation Diameter (Min)	Material - Insulation

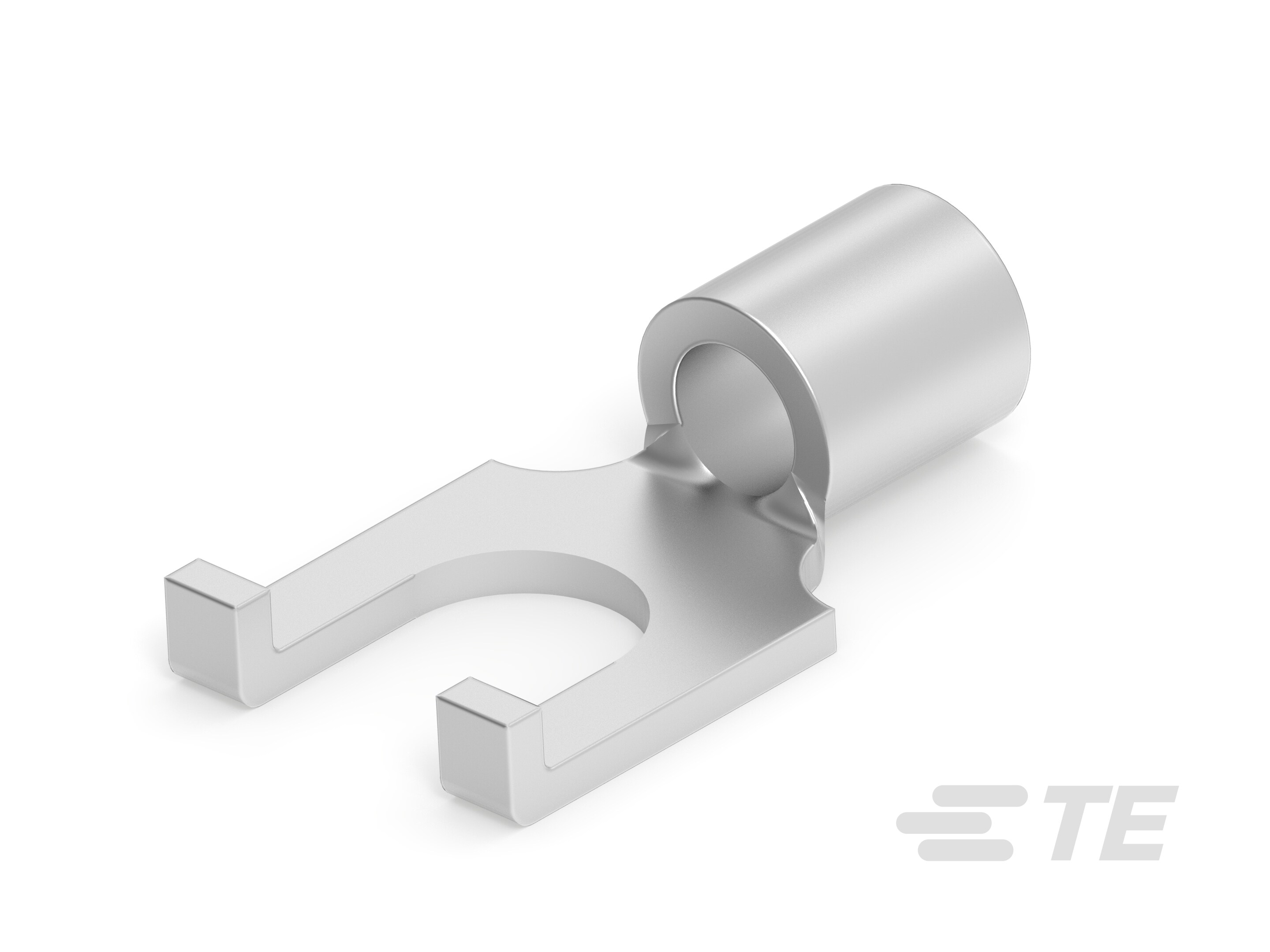

TE Connectivity AMP Connectors 320856	0.181 in	0.203 in	0.171 in	0.294 in	0.545 in	Flanged	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Crimp	Copper	Non-Insulated	8 Stud	16 AWG	14 AWG	Tin
TE Connectivity AMP Connectors 320815				0.25 in	0.56 in	Rectangular Tongue	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Crimp	Copper	Non-Insulated	6 Stud	16 AWG	14 AWG	Tin	0.165 in	0.145 in	0.085 in	0.031 in	Single Stud Hole
TE Connectivity AMP Connectors 320823				0.469 in	1.069 in	Rectangular Tongue	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Barrel Crimb	Copper	Non-Insulated	0.25 Stud	12 AWG	10 AWG	Tin	0.226 in	0.265 in	0.129 in	0.039 in	Single Stud Hole
TE Connectivity AMP Connectors 320863	0.404 in	0.203 in	0.197 in	0.294 in	0.768 in	Flanged	Free Hanging (In-Line)		Crimp	Copper	Insulated	10 Stud	16 AWG	14 AWG	Tin						Blue	0.17 in	0.115 in	Nylon PA Polyamide

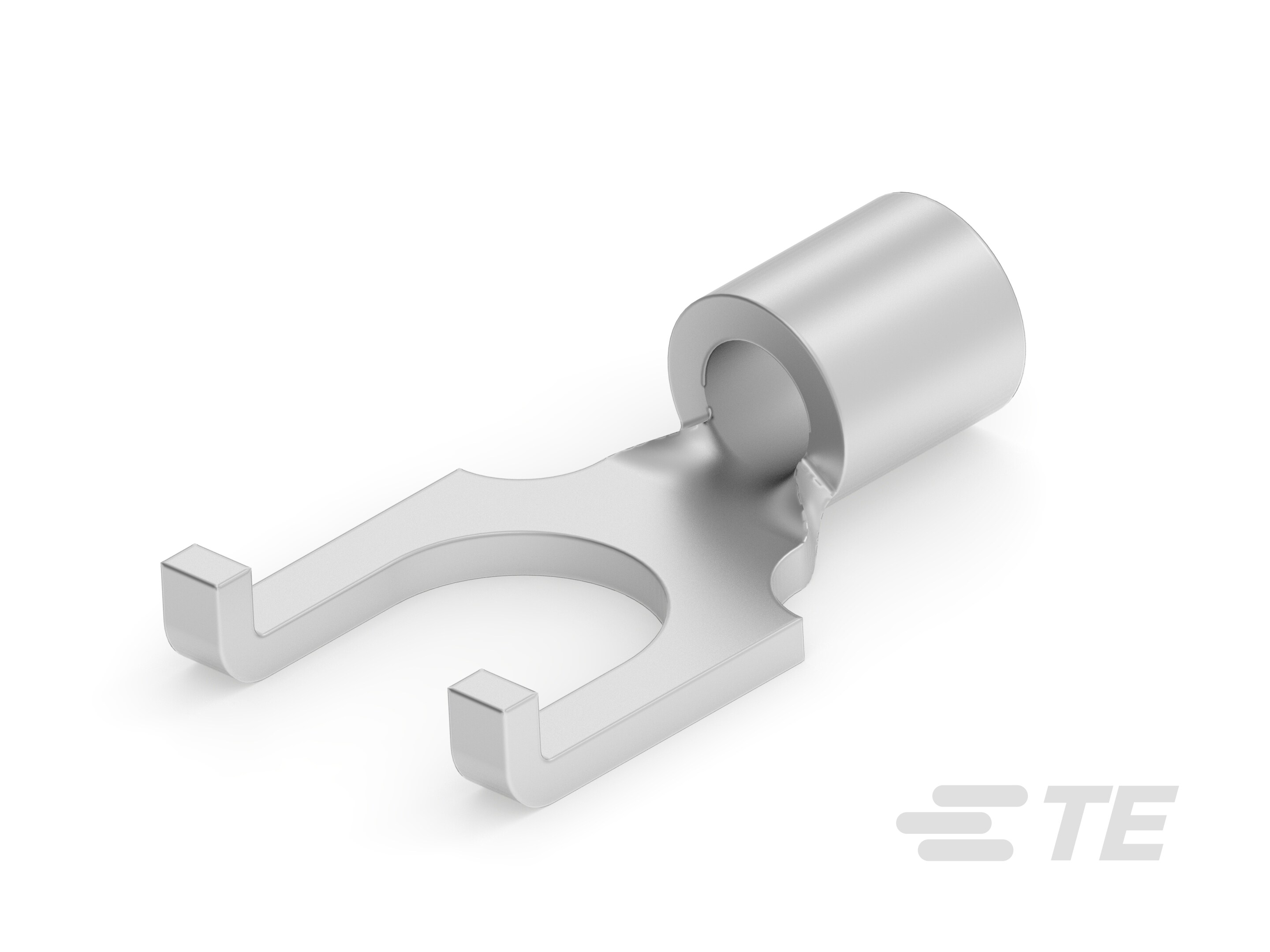

TE Connectivity AMP Connectors 320857	0.181 in	0.203 in	0.197 in	0.294 in	0.545 in	Flanged	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Crimp	Copper	Non-Insulated	10 Stud	16 AWG	14 AWG	Tin
TE Connectivity AMP Connectors 320861	0.404 in	0.203 in	0.145 in	0.294 in	0.768 in	Flanged	Free Hanging (In-Line)	Serrated Termination	Crimp	Copper	Insulated	6 Stud	16 AWG	14 AWG	Tin						Blue	0.17 in	0.115 in	Nylon PA Polyamide
TE Connectivity AMP Connectors 320822				0.469 in	1.069 in	Standard	Free Hanging (In-Line)	Serrated Termination	Crimp	Copper	Non-Insulated	0.25 Stud	12 AWG	10 AWG	Tin	0.221 in	0.265 in	0.134 in	0.039 in	Single Stud Hole
