2823096 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

4P,2MM,BRK HDR,SRRT,2.8,0.1AU,TB

Part	Current Rating	Shrouding	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Insulation Height	Style	Contact Length - Post	Insulation Material	Insulation Color	Termination	Fastening Type	Contact Shape	Contact Type	Contact Material	Contact Finish - Mating	Contact Finish - Post	Pitch - Mating	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Mounting Type	Contact Length - Mating	Contact Finish Thickness - Mating	Voltage Rating	Voltage Rating (Type)	Number of Positions	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2823096-4	2 A	Unshrouded	-40 °C	105 °C	Breakaway Header	0.079 in	Board	0.11 in	Thermoplastic	Black	Solder	Push-Pull	Square	Male Pin	Phosphor Bronze	Gold	Tin	0.079 in	UL94 V-0	1	All	Right Angle Through Hole	0.157 in	3.94 µin	125 V	DC	4	12 µin
TE Connectivity AMP Connectors 2823096-6	2 A	Unshrouded	-40 °C	105 °C	Breakaway Header	0.079 in	Board	0.11 in	Thermoplastic	Black	Solder	Push-Pull	Square	Male Pin	Phosphor Bronze	Gold	Tin	0.079 in	UL94 V-0	1	All	Right Angle Through Hole	0.157 in	3.94 µin	125 V	DC	6	12 µin
TE Connectivity AMP Connectors 1-2823096-0	2 A	Unshrouded	-40 °C	105 °C	Breakaway Header	0.079 in	Board	0.11 in	Thermoplastic	Black	Solder	Push-Pull	Square	Male Pin	Phosphor Bronze	Gold	Tin	0.079 in	UL94 V-0	1	All	Right Angle Through Hole	0.157 in	3.94 µin	125 V	DC	10	12 µin
TE Connectivity AMP Connectors 2823096-5	2 A	Unshrouded	-40 °C	105 °C	Breakaway Header	0.079 in	Board	0.11 in	Thermoplastic	Black	Solder	Push-Pull	Square	Male Pin	Phosphor Bronze	Gold	Tin	0.079 in	UL94 V-0	1	All	Right Angle Through Hole	0.157 in	3.94 µin	125 V	DC	5	12 µin

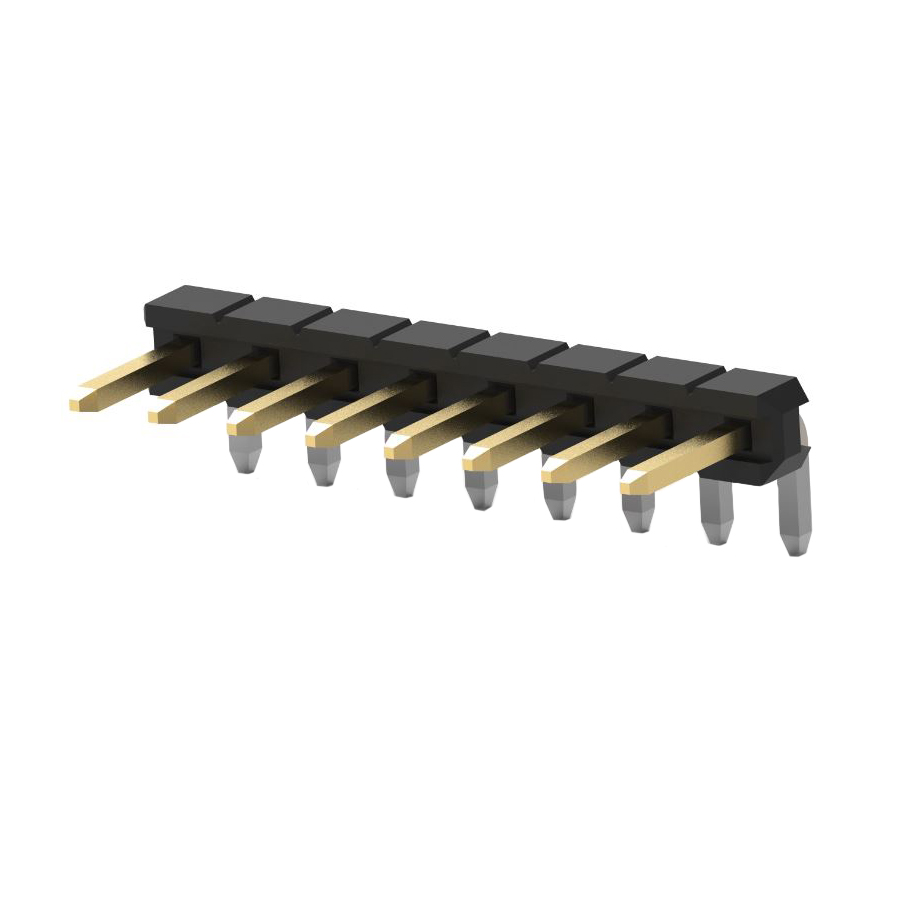

TE Connectivity AMP Connectors 2823096-8	2 A	Unshrouded	-40 °C	105 °C	Breakaway Header	0.079 in	Board	0.11 in	Thermoplastic	Black	Solder	Push-Pull	Square	Male Pin	Phosphor Bronze	Gold	Tin	0.079 in	UL94 V-0	1	All	Right Angle Through Hole	0.157 in	3.94 µin	125 V	DC	8	12 µin
TE Connectivity AMP Connectors 2-2823096-5	2 A	Unshrouded	-40 °C	125 °C	Breakaway Header	0.079 in	Board	0.11 in	Thermoplastic	Black	Solder	Push-Pull	Square	Male Pin	Phosphor Bronze	Gold	Tin	0.079 in	UL94 V-0	1	All	Right Angle Through Hole	0.157 in	3.94 µin	125 V	DC	25	12 µin
TE Connectivity AMP Connectors 2823096-2	2 A	Unshrouded	-40 °C	105 °C	Breakaway Header	0.079 in	Board	0.11 in	Thermoplastic	Black	Solder	Push-Pull	Square	Male Pin	Phosphor Bronze	Gold	Tin	0.079 in	UL94 V-0	1	All	Right Angle Through Hole	0.157 in	3.94 µin	125 V	DC	2	12 µin
TE Connectivity AMP Connectors 2823096-3	2 A	Unshrouded	-40 °C	105 °C	Breakaway Header	0.079 in	Board	0.11 in	Thermoplastic	Black	Solder	Push-Pull	Square	Male Pin	Phosphor Bronze	Gold	Tin	0.079 in	UL94 V-0	1	All	Right Angle Through Hole	0.157 in	3.94 µin	125 V	DC	3	12 µin
