889474 Series

2:1 LVDS Multiplexer With 1:2 Fanout And Internal Termination

Manufacturer: Renesas Electronics Corporation

Catalog

2:1 LVDS Multiplexer With 1:2 Fanout And Internal Termination

Part	Operating Temperature (Min)	Operating Temperature (Max)	Differential Input	Differential Output	Package Name	Package Width	Package Length	Package / Case	Output	Input Ratio	Output Ratio	Frequency - Max	Input	Type	Number of Circuits	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Renesas Electronics Corporation 889474AKLF	-40 °C	85 °C	Yes	Yes	24-VFQFN	4 mm	4 mm	24-VFQFN Exposed Pad	LVDS	2	2	2 GHz	CML LVDS LVHSTL LVPECL	Fanout Buffer (Distribution) Multiplexer	1	Surface Mount	2.625 V	2.375 V

Catalog

2:1 LVDS Multiplexer With 1:2 Fanout And Internal Termination

Description

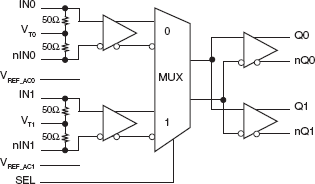

The 889474 is a high speed 2-to-1 differential multiplexer with integrated 2 output LVDS fanout buffer and internal termination and is a member of the family of high performance clock solutions from IDT. The 889474 is optimized for high speed and very low output skew, making it suitable for use in demanding applications such as SONET, 1 Gigabit and 10 Gigabit Ethernet, and Fibre Channel. The internally terminated differential input and VREF_AC pins allow other differential signal families such as LVPECL, LVDS, LVHSTL and CML to be easily interfaced to the input with minimal use of external components. The 889474 is packaged in a small 4mm x 4mm 24-pin VFQFN package which makes it ideal for use in space-constrained applications.
