770060 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

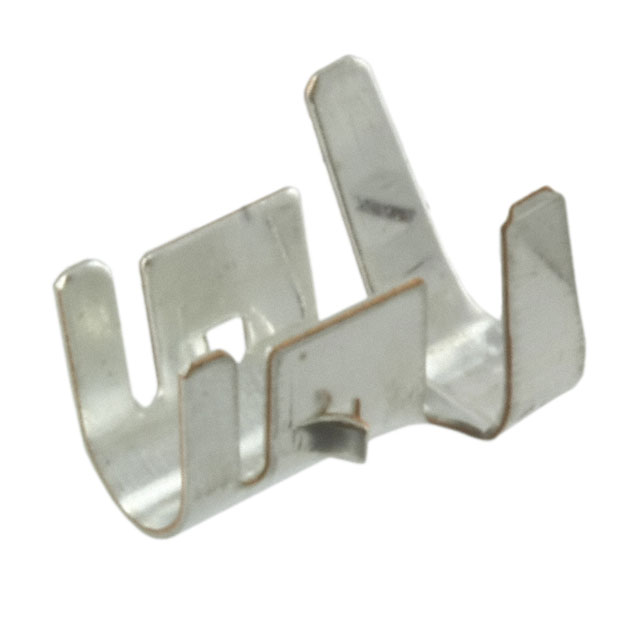

CONN TERM WTB 14-18AWG TIN
| Part | Terminal Type | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Length - Overall [x] | Length - Overall | Hole Diameter [diameter] | Hole Diameter [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Board | 0.09 " | 3.81 mm | 0.15 " | 2.29 mm | 14 AWG | 18 AWG | Phosphor Bronze | 0.295 in | 7.49 mm | 0.125 in | 3.18 mm | Tin |
