647167 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER SMD 8POS 2.54MM

Part	Contact Finish - Post	Connector Type	Insulation Color	Insulation Height	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Current Rating	Contact Shape	Shrouding	Style	Fastening Type	Pitch - Mating	Contact Material	Material Flammability Rating	Contact Finish - Mating	Mounting Type	Contact Type	Contact Finish Thickness - Mating	Termination	Contact Length - Mating	Insulation Material	Number of Positions Loaded	Voltage Rating	Number of Rows	Applications
TE Connectivity AMP Connectors 3-647167-8	Tin	Header	Black	0.347 in	-55 °C	105 °C	8	Varies by Wire Gauge	Square	Shrouded - 1 Wall	Board Cable/Wire	Friction Lock	0.1 in	Copper Alloy	UL94 V-0	Gold	Surface Mount	Male Pin	15 µin	Solder	0.29 in	Nylon 4/6 Polyamide (PA46)	All	250 V	1	General Purpose

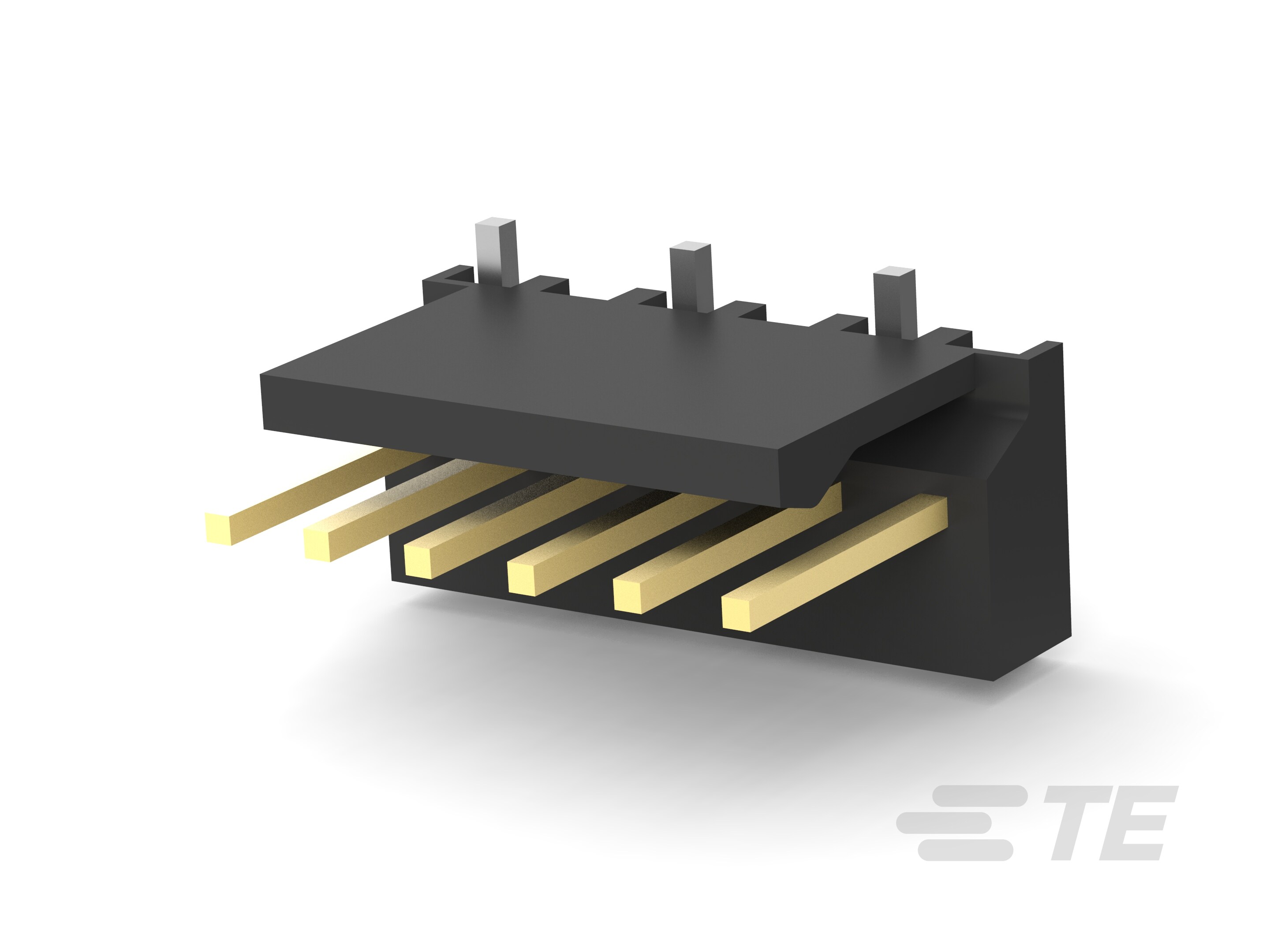

TE Connectivity AMP Connectors 3-647167-6	Tin	Header	Black	0.347 in	-55 °C	105 °C	6	Varies by Wire Gauge	Square	Shrouded - 1 Wall	Board Cable/Wire	Friction Lock	0.1 in	Copper Alloy	UL94 V-0	Gold	Surface Mount	Male Pin	15 µin	Solder	0.29 in	Nylon 4/6 Polyamide (PA46)	All	250 V	1	General Purpose
TE Connectivity AMP Connectors 3-647167-5	Tin	Header	Black	0.347 in	-55 °C	105 °C	5	Varies by Wire Gauge	Square	Shrouded - 1 Wall	Board Cable/Wire	Friction Lock	0.1 in	Copper Alloy	UL94 V-0	Gold	Surface Mount	Male Pin	15 µin	Solder	0.29 in	Nylon 4/6 Polyamide (PA46)	All	250 V	1	General Purpose
TE Connectivity AMP Connectors 3-647167-4	Tin	Header	Black	0.347 in	-55 °C	105 °C	4	Varies by Wire Gauge	Square	Shrouded - 1 Wall	Board Cable/Wire	Friction Lock	0.1 in	Copper Alloy	UL94 V-0	Gold	Surface Mount	Male Pin	15 µin	Solder	0.29 in	Nylon 4/6 Polyamide (PA46)	All	250 V	1	General Purpose
