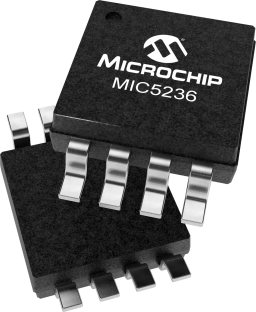

MIC5236 Series

Low Quiescent Current uCap LDO Regulator

Catalog

Low Quiescent Current uCap LDO Regulator

Part	Current - Quiescent (Iq)	Current - Supply (Max)	Current - Output	Output Configuration	Mounting Type	Package Name	Voltage - Output (Min/Fixed)	Voltage - Input (Max)	Control Features	Protection Features	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Dropout (Max)	Package Width	Package Length	Number of Regulators	Output Type
Microchip Technology MIC5236-5.0YMM	30 µA	5 mA	150 mA	Positive	Surface Mount	8-MSOP 8-TSSOP 8-MSOP	5 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3 mm	0.118 in	1	Fixed
Microchip Technology MIC5236-5.0BMM-TR	30 µA	5 mA	150 mA	Positive	Surface Mount	8-MSOP 8-TSSOP 8-MSOP	5 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3 mm	0.118 in	1	Fixed
Microchip Technology MIC5236-3.0BMM-TR	30 µA	5 mA	150 mA	Positive	Surface Mount	8-MSOP 8-TSSOP 8-MSOP	3 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3 mm	0.118 in	1	Fixed
Microchip Technology MIC5236-3.3YM	30 µA	5 mA	150 mA	Positive	Surface Mount	8-SOIC	3.3 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3.9 mm	0.154 in	1	Fixed
Microchip Technology MIC5236-2.5YMM	30 µA	5 mA	150 mA	Positive	Surface Mount	8-MSOP 8-TSSOP 8-MSOP	2.5 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3 mm	0.118 in	1	Fixed
Microchip Technology MIC5236-3.0BM	30 µA	5 mA	150 mA	Positive	Surface Mount	8-SOIC	3 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3.9 mm	0.154 in	1	Fixed
Microchip Technology MIC5236-3.3YM-TR	30 µA	5 mA	150 mA	Positive	Surface Mount	8-SOIC	3.3 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3.9 mm	0.154 in	1	Fixed
Microchip Technology MIC5236-2.5BM-TR	30 µA	5 mA	150 mA	Positive	Surface Mount	8-SOIC	2.5 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3.9 mm	0.154 in	1	Fixed
Microchip Technology MIC5236-3.3YMM-TR	30 µA	5 mA	150 mA	Positive	Surface Mount	8-MSOP 8-TSSOP 8-MSOP	3.3 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3 mm	0.118 in	1	Fixed
Microchip Technology MIC5236-3.0YMM-TR	30 µA	5 mA	150 mA	Positive	Surface Mount	8-MSOP 8-TSSOP 8-MSOP	3 V	30 V p-p	Enable	Load Dump Over Current Over Temperature Over Voltage Reverse Polarity	125 °C	-40 °C	0.5 V	3 mm	0.118 in	1	Fixed

Catalog

Low Quiescent Current uCap LDO Regulator

Description

The MIC5236 is a low quiescent current, µCap low dropout regulator. With a maximum operating input voltage of 30V and a quiescent current of 20µA, it is ideal for supplying keep-alive power in systems with high-voltage batteries. Capable of 150mA output, the MIC5236 has a dropout voltage of only 300mV. It can also survive an input transient of -20V to +60V. As a µCap LDO, the MIC5236 is stable with either a ceramic or a tantalum output capacitor. It only requires a 1.0µF output capacitor for stability. The MIC5236 includes a logic-compatible enable input and an undervoltage error flag indicator. Other features of the MIC5236 include thermal shutdown, current-limit, overvoltage shutdown, load-dump protection, reverse leakage protection, and reverse battery protection. Available in the thermally enhanced SOIC-8 and MSOP-8 packages, the MIC5236 comes in fixed 2.5V, 3.0V, 3.3V, 5.0V, and adjustable voltages.
