1986158 Series

Catalog

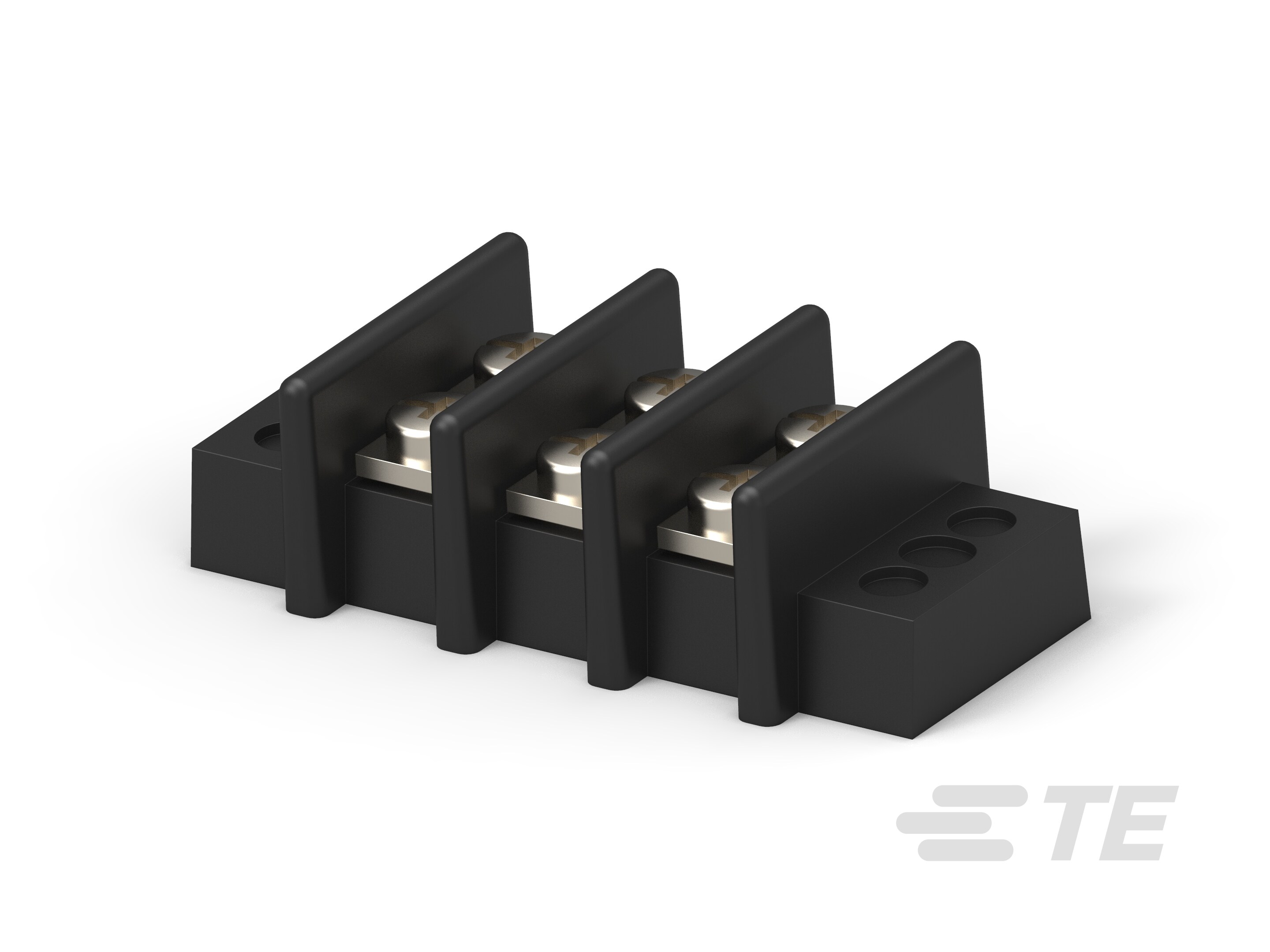

CONN BARRIER STRIP 3CIRC 0.563"

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Material - Insulation	Terminal Screw Finish	Mounting Type	Terminal Screw Material	Features	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Top Termination	Voltage Rating	Number of Wire Entries	Number of Circuits	Terminal Block Type	Number of Rows	Barrier Type	Pitch	Current Rating	Color	Bottom Termination
TE Connectivity AMP Connectors 1986158-3	120 °C	-40 °C	UL94 V-0	PBT Polybutylene Terephthalate	Nickel	Chassis Panel	Steel	Flange	22 AWG	10 AWG	Screws with Captive Plate	600 V	6	3	Barrier Block	2	2 Wall (Dual)	0.563 in	30 A	Black	Closed
TE Connectivity AMP Connectors 1986158-5	120 °C	-40 °C	UL94 V-0	PBT Polybutylene Terephthalate	Nickel	Chassis Panel	Steel	Flange	22 AWG	10 AWG	Screws with Captive Plate	600 V	10	5	Barrier Block	2	2 Wall (Dual)	0.563 in	30 A	Black	Closed
TE Connectivity AMP Connectors 1-1986158-2	120 °C	-40 °C	UL94 V-0	PBT Polybutylene Terephthalate	Nickel	Chassis Panel	Steel	Flange	22 AWG	10 AWG	Screws with Captive Plate	600 V	24	12	Barrier Block	2	2 Wall (Dual)	0.563 in	30 A	Black	Closed
TE Connectivity AMP Connectors 1986158-2	120 °C	-40 °C	UL94 V-0	PBT Polybutylene Terephthalate	Nickel	Chassis Panel	Steel	Flange	22 AWG	10 AWG	Screws with Captive Plate	600 V	4	2	Barrier Block	2	2 Wall (Dual)	0.563 in	30 A	Black	Closed
