046562 Series

Manufacturer: Molex

Catalog

VER REC TEN60 G-5P-G

Part	Color	Mounting Type	Connector Style	Features	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish	Termination	Number of Positions Loaded	Pitch	Number of Positions	Power Contacts (Typical)	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating (AC)	Voltage Rating (DC)	Current Rating	Material Flammability Rating	Signal Contacts (Typical)	Current Rating (Per Contact)	Current Rating Options
Molex 0465629305	Black	Through Hole	EXTreme Ten60Power	Mating Guide	Female Blade Sockets Receptacle	1	30 µin	Gold	Press-Fit	All	0.217 in	5	5	-40 °C	105 °C	600 VAC	250 VDC	60 A	UL94 V-0
Molex 0465629328	Black	Through Hole	EXTreme Ten60Power	Mating Guide	Blade Sockets Female Sockets Receptacle		30 µin	Gold	Press-Fit	All		33	6	-40 °C	105 °C	600 VAC	250 VDC	60 A	UL94 V-0	30
Molex 0465621285
Molex 0465629209	Black	Through Hole	EXTreme Ten60Power		Female Blade Sockets Receptacle	1	30 µin	Gold	Press-Fit	All	0.217 in	9	9	-40 °C	105 °C	600 VAC	250 VDC		UL94 V-0		60 A
Molex 0465629327	Black	Through Hole	EXTreme Ten60Power	Mating Guide	Blade Sockets Female Sockets Receptacle		30 µin	Gold	Press-Fit	All		32	4	-40 °C	105 °C	600 VAC	250 VDC	60 A	UL94 V-0	30
Molex 0465629321	Black	Through Hole	EXTreme Ten60Power	Mating Guide	Blade Sockets Female Sockets Receptacle		30 µin	Gold	Press-Fit	All		16	2	-40 °C	105 °C	600 VAC	250 VDC	60 A	UL94 V-0	15
Molex 0465623103
Molex 0465621001	Black	Through Hole	EXTreme Ten60Power	Mating Guide	Blade Sockets Female Sockets Receptacle	1	30 µin	Gold	Press-Fit	All	0.079 in	12	2	-40 °C	105 °C	600 VAC	250 VDC		UL94 V-0	10		2.5A 55A

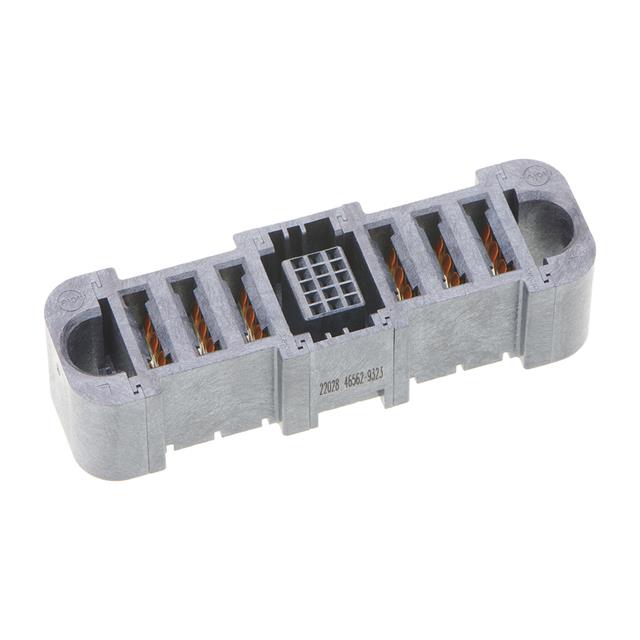

Molex 0465629323	Black	Through Hole	EXTreme Ten60Power	Mating Guide	Blade Sockets Female Sockets Receptacle		30 µin	Gold	Press-Fit	All		18	3	-40 °C	105 °C	600 VAC	250 VDC	60 A	UL94 V-0	15
Molex 0465629329	Black	Through Hole	EXTreme Ten60Power	Mating Guide	Blade Sockets Female Sockets Receptacle		30 µin	Gold	Press-Fit	All		34	4	-40 °C	105 °C	600 VAC	250 VDC	60 A	UL94 V-0	30
