MAX20340 Series

Bidirectional DC Powerline Communication Management IC

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Bidirectional DC Powerline Communication Management IC

Part	Mounting Type	Package Name	Package Length	Package Width	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Current - Supply	Supplied Contents	Contents	Type	Utilized IC / Part	Secondary Attributes	Function
Analog Devices Inc./Maxim Integrated MAX20340EWL+	Surface Mount	9-WLP	1.36 mm	1.36 mm	9-WFBGA WLBGA	3.4 V	5.5 V	-40 °C	85 °C	General Purpose	28.5 µA

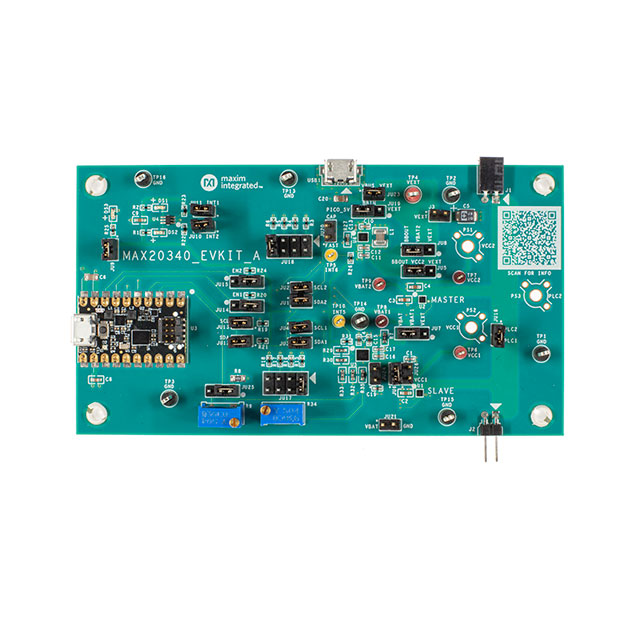

Analog Devices Inc./Maxim Integrated MAX20340EVKIT#												Board(s)	Board	Power Management	MAX20340	I2C Interface(s)	Battery Charger
Analog Devices Inc./Maxim Integrated MAX20340EWL+T	Surface Mount	9-WLP	1.36 mm	1.36 mm	9-WFBGA WLBGA	3.4 V	5.5 V	-40 °C	85 °C	General Purpose	28.5 µA

Catalog

Bidirectional DC Powerline Communication Management IC

Description

The MAX20340 is a universal bidirectional DC powerline communication (PLC) management IC with a 166.7kbps maximum bit rate. The device is capable of a maximum of 1.2A charge current.The MAX20340 features a slave detection circuit that flags an interrupt to the system when the PLC master detects the presence of a PLC slave on the powerline. This function allows the system to remain in a low-power state until a slave device is connected.Many of the features of the MAX20340, such as master/slave mode, I2C address, dual/single PLC slave mode, and PLC slave address, are pin configurable.The device is available in a 9-bump, 0.4mm pitch, 1.358mm x 1.358mm wafer-level package (WLP).ApplicationsGame ControllersHandheld RadiosPoint of Sales DevicesTethered Wireless Headphones Hearing AidsTruly Wireless EarbudsWearables
