50462 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

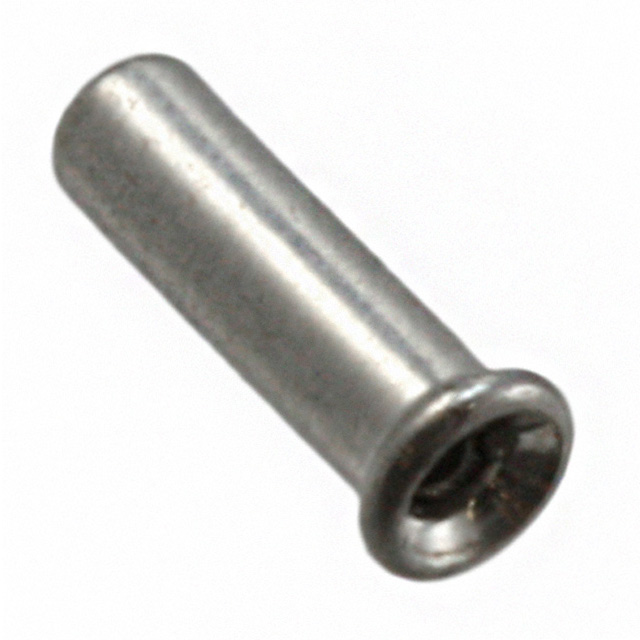

CONN PIN RCPT .014-.026 SOLDER
| Part | Features | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Hole Diameter | Termination | Flange Diameter | Contact Finish Thickness | Length - Overall | Contact Material | Tail Type | Socket Depth | Accepts Pin Diameter (Max) | Accepts Pin Diameter (Min) | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Open Bottom | 125 °C | -65 °C | 0.052 in | Solder | 0.07 in | 30 µin | 0.178 in | Beryllium Copper | No Tail | 0.165 in | 0.026 in | 0.014 in | Gold |
TE Connectivity AMP Connectors | Closed Bottom | 125 °C | -65 °C | 0.052 in | Solder | 0.07 in | 30 µin | 0.178 in | Beryllium Copper | No Tail | 0.165 in | 0.026 in | 0.014 in | Gold |
