68758 Series

Catalog

SINGLE ROW RIGHT ANGLE

Part	Number of Positions Loaded	Insulation Height	Material Flammability Rating	Connector Type	Termination	Current Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Color	Number of Rows	Style	Fastening Type	Shrouding	Pitch - Mating	Contact Length - Post	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Number of Positions	Contact Shape	Mounting Type	Contact Length - Mating	Contact Finish - Post
Amphenol ICC (FCI) 68758-114HLF	All	0.095 in	UL94 V-0	Header	Solder	3 A	Gold GXT™	30 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in	125 °C	-65 °C	Phosphor Bronze	14	Square	Right Angle Through Hole	0.275 in

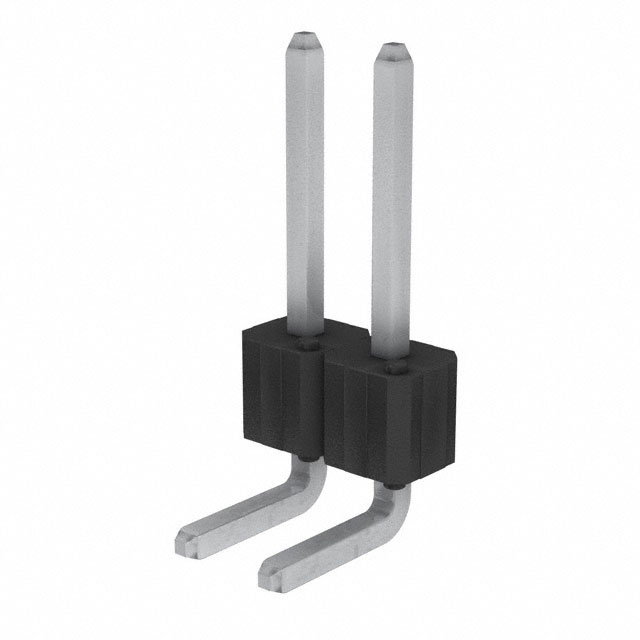

Amphenol ICC (FCI) 68758-402HLF	All	0.095 in	UL94 V-0	Header	Solder	3 A	Tin	100 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in	125 °C	-65 °C	Phosphor Bronze	2	Square	Right Angle Through Hole	0.275 in	Tin
Amphenol ICC (FCI) 68758-408HLF	All	0.095 in	UL94 V-0	Header	Solder	3 A	Tin	100 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in	125 °C	-65 °C	Phosphor Bronze	8	Square	Right Angle Through Hole	0.275 in	Tin
Amphenol ICC (FCI) 68758-431HLF	All	0.095 in	UL94 V-0	Header	Solder	3 A	Tin	100 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in	125 °C	-65 °C	Phosphor Bronze	31	Square	Right Angle Through Hole	0.275 in	Tin
Amphenol ICC (FCI) 68758-422HLF	All	0.095 in	UL94 V-0	Header	Solder	3 A	Tin	100 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in	125 °C	-65 °C	Phosphor Bronze	22	Square	Right Angle Through Hole	0.275 in	Tin
Amphenol ICC (FCI) 68758-136	All	0.095 in	UL94 V-0	Header	Solder	3 A	Gold GXT™	30 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in	125 °C	-65 °C	Phosphor Bronze	36	Square	Right Angle Through Hole	0.275 in
Amphenol ICC (FCI) 68758-236	All	0.095 in	UL94 V-0	Header	Solder		Gold GXT™	15 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in			Phosphor Bronze	36	Square	Right Angle Through Hole	0.275 in
Amphenol ICC (FCI) 68758-108HLF	All	0.095 in	UL94 V-0	Header	Solder	3 A	Gold GXT™	30 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in	125 °C	-65 °C	Phosphor Bronze	8	Square	Right Angle Through Hole	0.275 in
Amphenol ICC (FCI) 68758-129HLF	All	0.095 in	UL94 V-0	Header	Solder	3 A	Gold GXT™	30 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in	125 °C	-65 °C	Phosphor Bronze	29	Square	Right Angle Through Hole	0.275 in
Amphenol ICC (FCI) 68758-104HLF	All	0.095 in	UL94 V-0	Header	Solder	3 A	Gold GXT™	30 µin	Male Pin	Black	1	Board	Push-Pull	Unshrouded	0.1 in	0.12 in	125 °C	-65 °C	Phosphor Bronze	4	Square	Right Angle Through Hole	0.275 in
