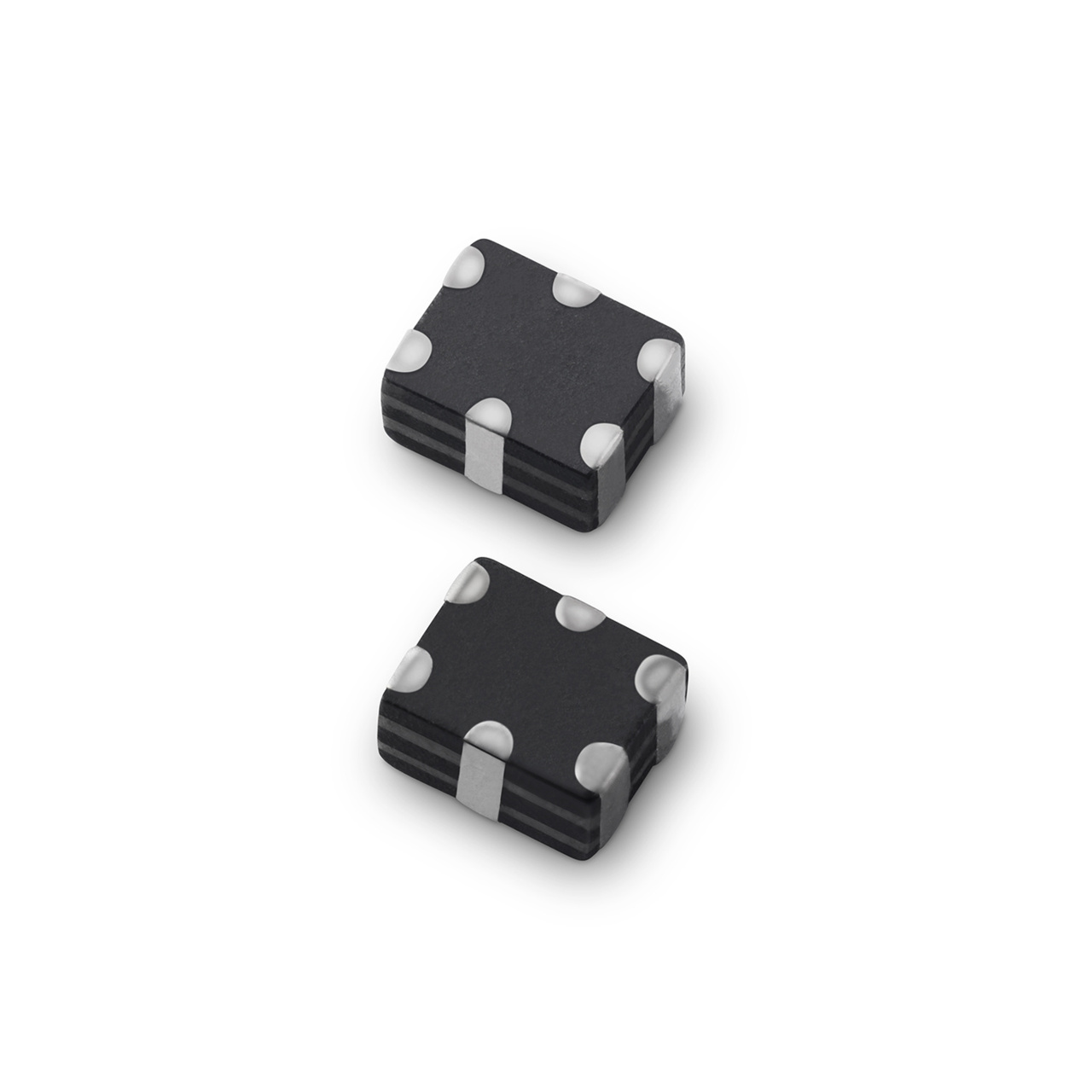

LCFEA121002A900TG Series

CMEF 1210 2Lines 90ohm AECQ

Catalog

CMEF 1210 2Lines 90ohm AECQ

Part	Height (Max)	Mounting Type	Features	DC Resistance (DCR) (Max)	Size / Dimension Width	Size / Dimension Length	Ratings	Impedance	Number of Lines	Current Rating (Max)	Package Name	Package Leads	Voltage Rating - DC	Operating Temperature (Max)	Operating Temperature (Min)	Filter Type
LITTELFUSE LCFEA121002A900TG	0.026 in	Surface Mount	TVS Diode ESD Protection	4 Ohm	0.039 in	0.05 in	AEC-Q200	90 Ohms	2	100 mA	0504 (1210 Metric)	6 Leads	5 V	125 °C	-40 °C	Signal Line

Catalog

CMEF 1210 2Lines 90ohm AECQ

Description

Common Mode Noise Filters attenuate the common mode noise that is problematic in differential transmission (examples: USB, HDMI and MIPI), balanced transmission, power supply lines, and audio lines. Common Mode Noise Filters (CMF) are ideal for suppressing unwanted common mode noise with frequencies ranging from hundred megahertz to gigahertz with no adverse effect on the signals (differential cut-off frequency) and also offers additional ESD protection functions.
