HSC Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

BOARD MOUNT PRESSURE SENSORS SMT, DUAL RAD BARBED DIFFERENTIAL, 3.3V

Part	Output Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Bits	Package / Case	Accuracy	Applications	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Operating Pressure	Termination Style	Maximum Pressure	Port Diameter	Port Gender	Port Feature	Pressure Type	Features	Port Style	Mounting Type	Output Voltage (Min)	Output Voltage (Max)	Package Length	Package Features	Package Width
Honeywell Sensing and Productivity Solutions HSCMRRN005PD2A3	I2C	3.6 V	3 V	12 b	8-SMD Dual Ports J-Lead Same Side	0.25 %	Board Mount	8-SMD	85 °C	-20 °C	5 PSI	J Lead	30 PSI	0.08 in	Male	Dual Tube	Differential	Amplified Output Temperature Compensated	Barbed	Surface Mount
Honeywell Sensing and Productivity Solutions HSCSNBN001NDAA5	Analog Voltage	5.05 V	4.95 V		4-SIP Dual Ports Same Side	0.25 %	Board Mount	4-SIP	85 °C	-20 °C	0.04 PSI	PC Pin	9.76 PSI	0.19 "	Male	Dual Tube	Differential	Amplified Output Temperature Compensated	Barbless	Through Hole	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCSSNT060PGAA5	Analog Voltage	5.25 V	4.75 V		4-SIP Module	0.25 %	Board Mount	4-SIP	85 °C	-20 °C	30 PSI	PC Pin	120 PSI				Vented Gauge	Amplified Output Temperature Compensated	No Port	Through Hole	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCSNNN015PAAA5	Analog Voltage	5.25 V	4.75 V		4-SIP Module	0.25 %	Board Mount	4-SIP	85 °C	-20 °C	15 PSI	PC Pin	30 PSI				Absolute	Amplified Output Temperature Compensated	No Port	Through Hole	0.5 V	4.5 V

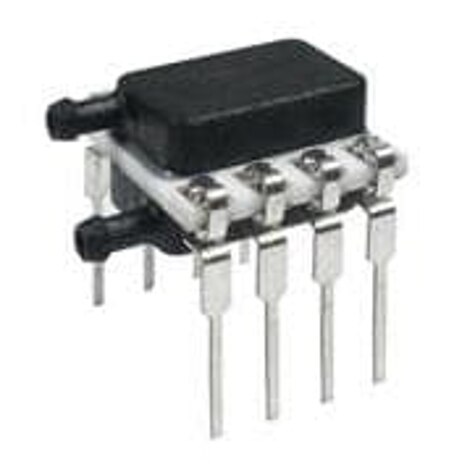

Honeywell Sensing and Productivity Solutions HSCSRRN060MD2A3	I2C	3.6 V	3 V		4-SIP Dual Ports Same Side	0.25 %	Board Mount	4-SIP	85 °C	-20 °C	0.87 PSI	PC Pins	12.33 PSI	0.08 in	Male	Dual Tube	Differential	Amplified Output Temperature Compensated	Barbed	Through Hole
Honeywell Sensing and Productivity Solutions HSCDRRD160MDSA3	SPI	3.6 V	3 V	12 b		0.25 %	Board Mount	8-DIP	85 °C	-20 °C	2.32 PSI	PC Pin	20.31 PSI	0.08 in	Male	Dual Tube	Differential	Amplified Output Temperature Compensated	Barbed	Through Hole			0.524 in	Dual Ports Same Side	13.3 mm
Honeywell Sensing and Productivity Solutions HSCMRRN004NDAA5	Analog Voltage	5.05 V	4.95 V		8-SMD Dual Ports J-Lead Same Side	0.25 %	Board Mount	8-SMD	85 °C	-20 °C	0.15 PSI	J Lead	10.84 PSI	0.08 in	Male	Dual Tube	Differential	Amplified Output Temperature Compensated	Barbed	Surface Mount	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCMRRD005NDAA5	Analog Voltage	5.05 V	4.95 V		8-SMD Dual Ports J-Lead Same Side	0.25 %	Board Mount	8-SMD	85 °C	-20 °C	0.18 PSI			0.08 in	Male	Dual Tube	Differential	Amplified Output Temperature Compensated	Barbed	Surface Mount	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCMRRN001PD3A3	I2C	3.6 V	3 V	12 b	8-SMD Dual Ports J-Lead Same Side	0.25 %	Board Mount	8-SMD	85 °C	-20 °C	1 PSI	J Lead	10 PSI	0.08 in	Male	Dual Tube	Differential	Amplified Output Temperature Compensated	Barbed	Surface Mount
Honeywell Sensing and Productivity Solutions HSCMAND030PGAA5	Analog Voltage	5.25 V	4.75 V		8-SMD J-Lead Top Port	0.25 %	Board Mount	8-SMD	85 °C	-20 °C	30 PSI	J Lead	60 PSI	0.19 "	Male	Tube	Vented Gauge	Amplified Output Temperature Compensated	Barbed	Surface Mount	0.5 V	4.5 V
