2823406 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

30P,2MM,PL HDR,DRVT,2.8,SN,TB

Part	Contact Finish - Post	Material Flammability Rating	Current Rating	Pitch - Mating	Shrouding	Voltage Rating	Voltage Rating (Type)	Contact Length - Mating	Number of Rows	Style	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Contact Material	Number of Positions	Contact Length - Post	Insulation Color	Number of Positions Loaded	Contact Shape	Insulation Material	Mounting Type	Row Spacing - Mating	Connector Type	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Mating	Insulation Height	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 3-2823406-0	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	30	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin
TE Connectivity AMP Connectors 3-2823406-2	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	32	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin
TE Connectivity AMP Connectors 2-2823406-2	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	22	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin
TE Connectivity AMP Connectors 2-2823406-0	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	20	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin
TE Connectivity AMP Connectors 1-2823406-8	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	18	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin
TE Connectivity AMP Connectors 1-2823406-0	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	10	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin
TE Connectivity AMP Connectors 2-2823406-4	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	24 pos	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin
TE Connectivity AMP Connectors 1-2823406-6	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	16	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin

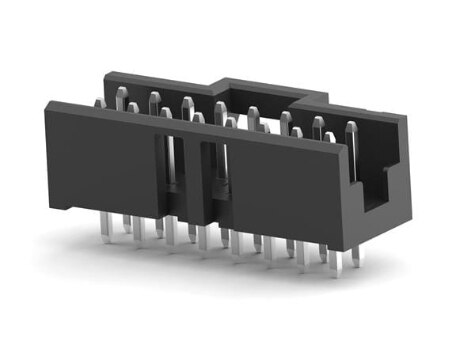

TE Connectivity AMP Connectors 1-2823406-4	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	14	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin
TE Connectivity AMP Connectors 1-2823406-2	Tin	UL94 V-0	2 A	0.079 in	Shrouded - 2 Wall	125 V	DC	0.157 in	2	Board Board or Cable	Solder	-40 °C	105 °C	Male Pin	Phosphor Bronze	12	0.11 in	Black	All	Square	Thermoplastic	Through Hole	0.079 in	Header	Tin	Latch Holder	118.1 µin	0.217 in	12 µin
