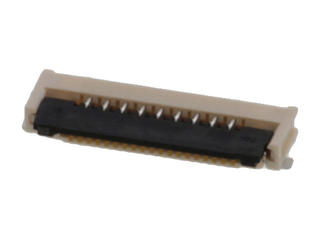

1.00mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 8 Circuits
1.00mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 8 Circuits
1.00mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 8 Circuits
| Part | Number of Positions | FFC, FCB Thickness | Height Above Board | Mounting Type | Actuator Material | Pitch | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Flat Flex Type | Termination | Housing Material | Locking Feature | Features | Connector/Contact Type | Cable End Type | Contact Finish | Material Flammability Rating | Actuator Color | Contact Finish Thickness | Mating Cycles | Current Rating (Per Contact) | Housing Color | Voltage Rating | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 5 | 0.3 mm | 0.075 in | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | 0.039 in | Phosphor Bronze | -40 °C | 85 °C | FFC FPC | Solder | Glass Filled LCP Liquid Crystal Polymer | Flip Lock | Solder Retention Zero Insertion Force (ZIF) | Bottom Contacts | Straight Tabbed | Tin Bismuth | UL94 V-0 | Black | 39.4 Ąin | 25 cycles | 500 mA | Beige | ||
 Molex | 12 | 0.3 mm | 0.075 in | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | 0.039 in | Phosphor Bronze | -40 °C | 85 °C | FFC FPC | Solder | Glass Filled LCP Liquid Crystal Polymer | Flip Lock | Solder Retention Zero Insertion Force (ZIF) | Bottom Contacts | Straight Tabbed | Tin Bismuth | UL94 V-0 | Black | 39.4 Ąin | 20 cycles | Beige | 125 V | 1 A | |
 Molex | 9 | 0.3 mm | 0.075 in | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | 0.039 in | Phosphor Bronze | -40 °C | 85 °C | FFC FPC | Solder | Glass Filled LCP Liquid Crystal Polymer | Flip Lock | Solder Retention Zero Insertion Force (ZIF) | Bottom Contacts | Straight Tabbed | Tin Bismuth | UL94 V-0 | Black | 39.4 Ąin | 25 cycles | 500 mA | Beige | ||
Molex | 17 | 0.3 mm | 0.075 in | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | 0.039 in | Phosphor Bronze | -40 °C | 85 °C | FFC FPC | Solder | Glass Filled LCP Liquid Crystal Polymer | Flip Lock | Solder Retention Zero Insertion Force (ZIF) | Bottom Contacts | Straight Tabbed | Tin Bismuth | UL94 V-0 | Black | 39.4 Ąin | 25 cycles | 500 mA | Beige | ||
 Molex | 8 | 0.3 mm | 0.075 in | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | 0.039 in | Phosphor Bronze | -40 °C | 85 °C | FFC FPC | Solder | Glass Filled LCP Liquid Crystal Polymer | Flip Lock | Solder Retention Zero Insertion Force (ZIF) | Bottom Contacts | Straight Tabbed | Tin Bismuth | UL94 V-0 | |||||||
 Molex | 22 | 0.3 mm | 0.075 in | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | 0.039 in | Phosphor Bronze | -40 °C | 85 °C | FFC FPC | Solder | Glass Filled LCP Liquid Crystal Polymer | Flip Lock | Solder Retention Zero Insertion Force (ZIF) | Bottom Contacts | Straight Tabbed | Tin Bismuth | UL94 V-0 | Black | 39.4 Ąin | 25 cycles | 500 mA | Beige | ||
 Molex | 4 | 0.3 mm | 0.075 in | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | 0.039 in | Phosphor Bronze | -40 °C | 85 °C | FFC FPC | Solder | Glass Filled LCP Liquid Crystal Polymer | Flip Lock | Solder Retention Zero Insertion Force (ZIF) | Bottom Contacts | Straight Tabbed | Tin Bismuth | UL94 V-0 | Black | 39.4 Ąin | 25 cycles | 500 mA | Beige | ||
 Molex | 6 | 0.3 mm | 0.075 in | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | 0.039 in | Phosphor Bronze | -40 °C | 85 °C | FFC FPC | Solder | Glass Filled LCP Liquid Crystal Polymer | Flip Lock | Solder Retention Zero Insertion Force (ZIF) | Bottom Contacts | Straight Tabbed | Tin Bismuth | UL94 V-0 |
