284043 Series

Catalog

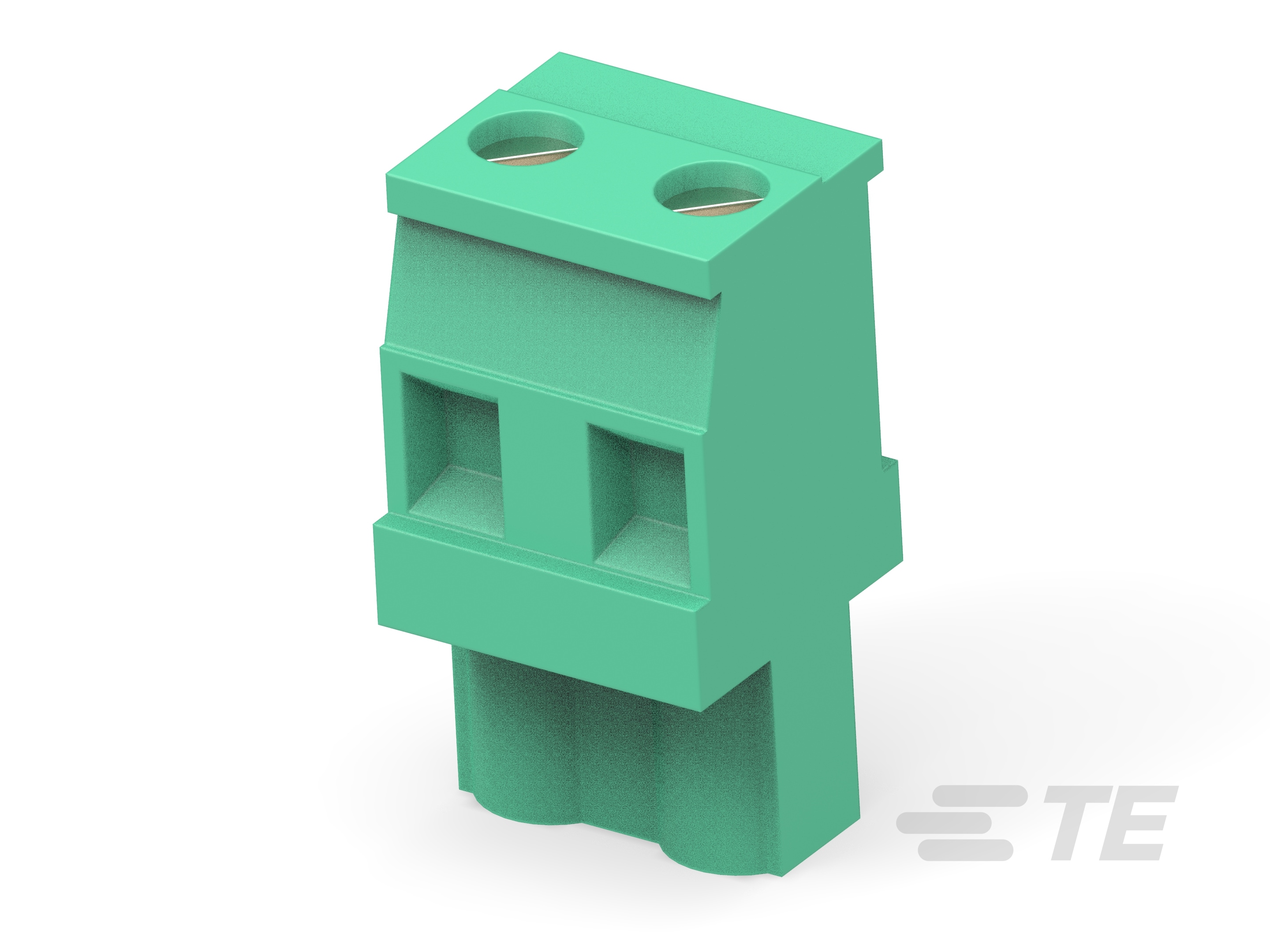

TERMI-BLOK VERTICAL PLUG STACK

Part	Operating Temperature (Min)	Operating Temperature (Max)	Plug Wire Entry Angle	Features	Voltage - UL	Current - UL	Positions Per Level	Contact Mating Finish	Mounting Type	Number of Positions	Pitch	Type	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Termination Style	Number of Levels	Color	Contact Material	Housing Material	Screw Size	Material Flammability Rating	Wire Strip Length (Min)	Wire Strip Length (Max)	Insulation Height	Torque - Screw
TE Connectivity AMP Connectors 1-284043-0	-40 °C	110 °C	270 °	Retention Latches (Non-Wire Side)	300 V	15 A	10	Tin	Free Hanging (In-Line)	10	0.3 in	Female Sockets Plug	0.05 mm²	3 mm²	30 AWG	12 AWG	Screw - Rising Cage Clamp	1	Green	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	M3	UL94 V-0	6 mm	7.5 mm	0.984 in	0.79 Nm
TE Connectivity AMP Connectors 284043-5	-40 °C	110 °C	270 °	Retention Latches (Non-Wire Side)	300 V	15 A	5	Tin	Free Hanging (In-Line)	5	0.3 in	Female Sockets Plug	0.05 mm²	3 mm²	30 AWG	12 AWG	Screw - Rising Cage Clamp	1	Green	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	M3	UL94 V-0	6 mm	7.5 mm	0.984 in	0.79 Nm
TE Connectivity AMP Connectors 284043-2	-40 °C	110 °C	270 °	Retention Latches (Non-Wire Side)	300 V	15 A	2	Tin	Free Hanging (In-Line)	2	0.3 in	Female Sockets Plug	0.05 mm²	3 mm²	30 AWG	12 AWG	Screw - Rising Cage Clamp	1	Green	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	M3	UL94 V-0	6 mm	7.5 mm	0.984 in	0.79 Nm
