24082-BX Series

SOL 12V 17.5OHM CONT 3STUD BAG #8

Catalog

SOL 12V 17.5OHM CONT 3STUD BAG #8

Part	Form A Count	Contact Form	Coil Type	Relay Type	Mounting Type	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage DC (Max)	Contact Material	Coil Voltage	Contact Rating (Current)	Coil Current
LITTELFUSE 24082-BX	1	SPST-NO	Non Latching	General Purpose	Chassis Mount	Stud	-40 °C	85 °C	12 VDC	Silver (Ag)	12 VAC	85 A	685.7 mA

Catalog

SOL 12V 17.5OHM CONT 3STUD BAG #8

Description

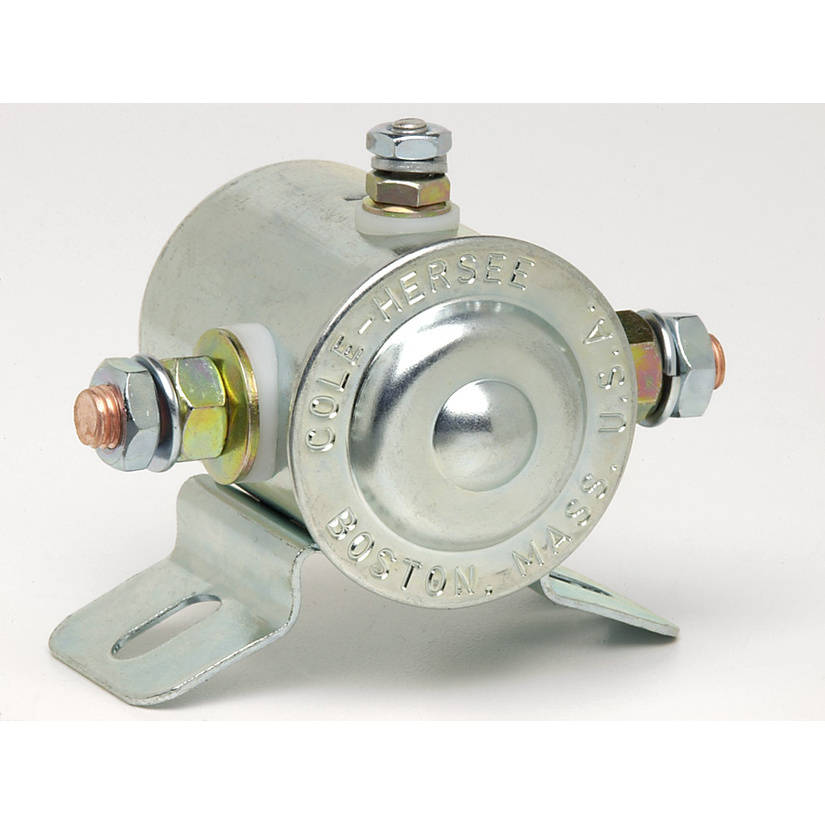

The 36 V 85 A Continuous-Duty SPST Series Grounded Solenoid Relay (24082-BX) is designed with plated steel housing, single-pole, single-throw (SPST) circuitry, and normally open contacts. This grounded, three-stud solenoid relay has a 12 V coil and a coil impedance of 17.5 ohms. In addition, this individually boxed model has a 125 A make/break rating.
