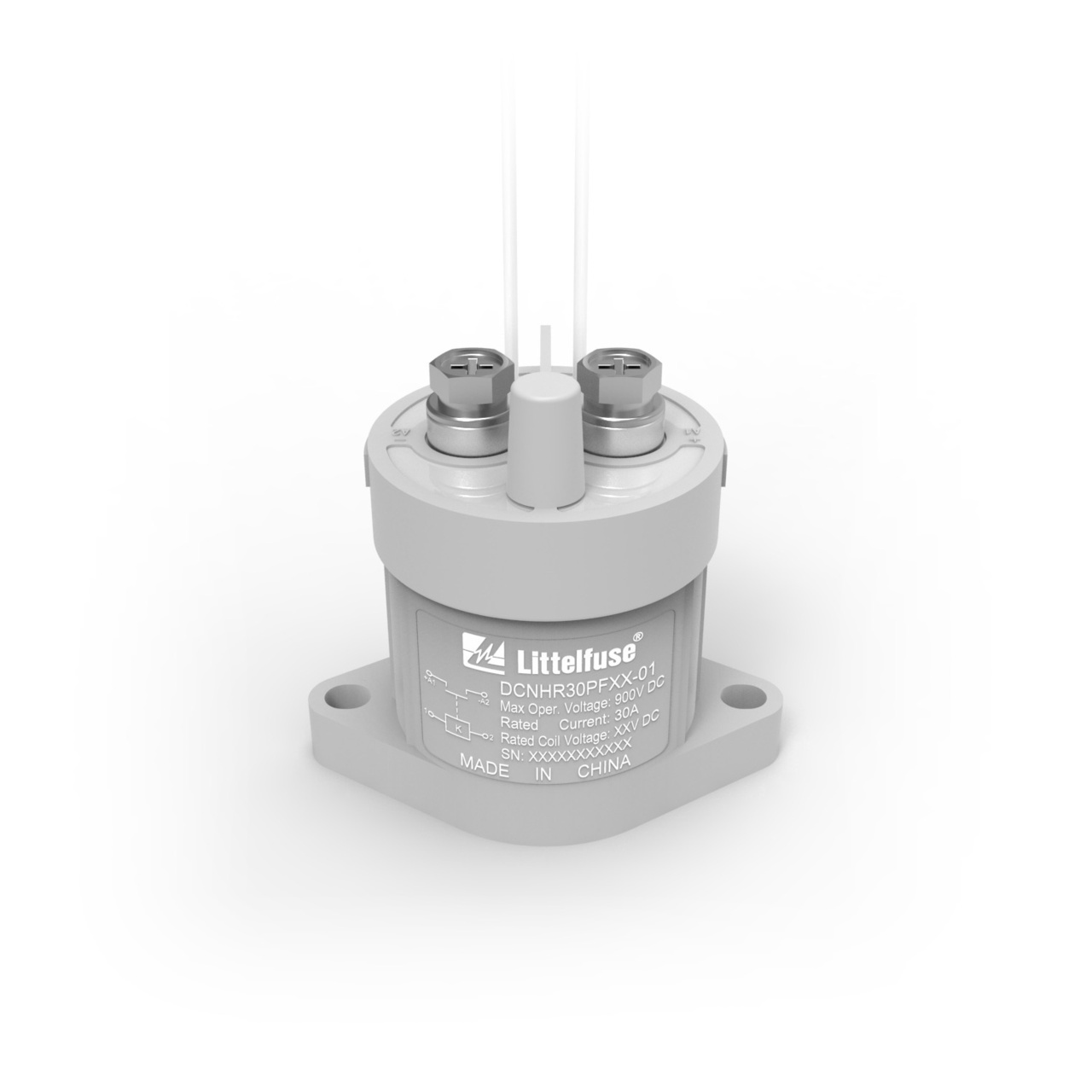

DCNHR30PF24-01 Series

DCNHR 30A 450V P 24Vcoil Internal thread

Catalog

DCNHR 30A 450V P 24Vcoil Internal thread

Part	Mounting Type	Must Operate Voltage	Switching Voltage DC (Max)	Coil Voltage	Contact Rating (Current)	Termination Style	Must Release Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Form A Count	Contact Form
LITTELFUSE DCNHR30PF24-01	Chassis Mount	18 VDC	900 VDC	24 VDC	30 A	Stud Wire Leads	2 VDC	-40 °C	85 °C	1	SPST-NO

Catalog

DCNHR 30A 450V P 24Vcoil Internal thread

Description

The DCNHR Series 900V Max High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff.This DCNHR Series contactor relay (DCNHR30PF24-01) is for 30A contact switching and features polarized main contacts and a 24V coil. In addition, this model features contact terminals with an internal thread.
