45985 Series
Manufacturer: Molex
Beta
⌘K

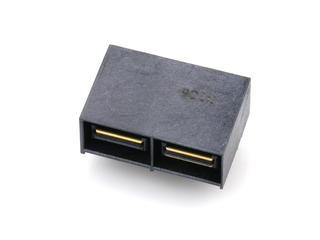

EXTREME LPHPOWER PLUG, RIGHT-ANGLE, 10 POWER CONTACTS, 32 SIGNAL CONTACTS, SELECT GOLD (AU) PLATING, FOR 2.36MM THICK PC BOARD, WITH GUIDE POCKETS AND PRESS-FIT PLASTIC PEGS
| Part | Features | Power Contacts (Typical) | Signal Contacts (Typical) | Connector Style | Pitch | Termination | Operating Temperature (Min) | Operating Temperature (Max) | Number of Positions | Number of Positions Loaded | Material Flammability Rating | Contact Finish | Number of Rows | Contact Finish Thickness | Color | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Board Guide Mating Guide | 10 | 32 | LPHPower | 0.05 in | Solder | -40 °C | 105 °C | 42 | All | UL94 V-0 | Gold | 2 | 30 µin | Black | Right Angle Through Hole | Center Strip Contacts Plug |
Molex | Board Guide Mating Guide | 10 | 36 | LPHPower | 0.05 in | Solder | -40 °C | 105 °C | 46 | All | UL94 V-0 | Gold | 2 | 30 µin | Black | Right Angle Through Hole | Center Strip Contacts Plug |
Molex | Board Guide Mating Guide | 8 | 28 | LPHPower | 0.05 in | Solder | -40 °C | 105 °C | 36 | All | UL94 V-0 | Gold | 2 | 30 µin | Black | Right Angle Through Hole | Center Strip Contacts Plug |
Molex | |||||||||||||||||
 Molex | |||||||||||||||||
Molex | |||||||||||||||||
 Molex | Board Guide Mating Guide | 4 | 40 | LPHPower | 0.05 in | Solder | -40 °C | 105 °C | 44 | All | UL94 V-0 | Gold | 2 | 30 µin | Black | Right Angle Through Hole | Center Strip Contacts Plug |
