843156I Series

Crystal-to-LVPECL Clock Synthesizer

Manufacturer: Renesas Electronics Corporation

Catalog

Crystal-to-LVPECL Clock Synthesizer

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package Length	Package Name	Package Width	PLL	Number of Circuits	Input	Output Ratio	Input Ratio	Mounting Type	Differential Output	Differential Input	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Type	Output	Multiplier	Divider	Frequency - Max
Renesas Electronics Corporation 843156AKILF	2.375 V	3.465 V	5 mm	32-VFQFPN	5 mm	Yes with Bypass	1	Crystal	10	1	Surface Mount	Yes	No	-40 °C	85 °C	32-VFQFN Exposed Pad	Clock/Frequency Synthesizer	LVPECL	No	Yes	156.25 MHz

Catalog

Crystal-to-LVPECL Clock Synthesizer

Description

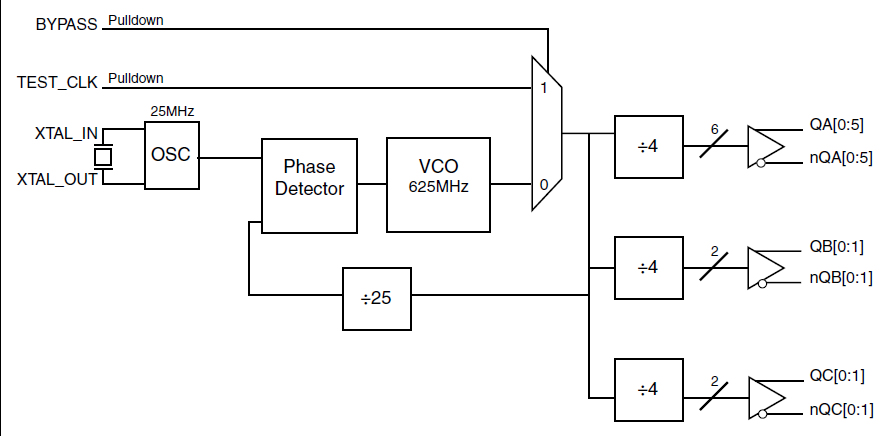

The 843156I is a high frequency clock generator. The 843156I uses an external 25MHz crystal to synthesize 156.25MHz clock. The 843156I has excellent cycle-to-cycle and RMS period jitter performance. The 843156I operates at full 3.3V and 2.5V, or mixed 3.3V/2.5V operating supplies and is available in a fully RoHS compliant 32-lead VFQFN package.
